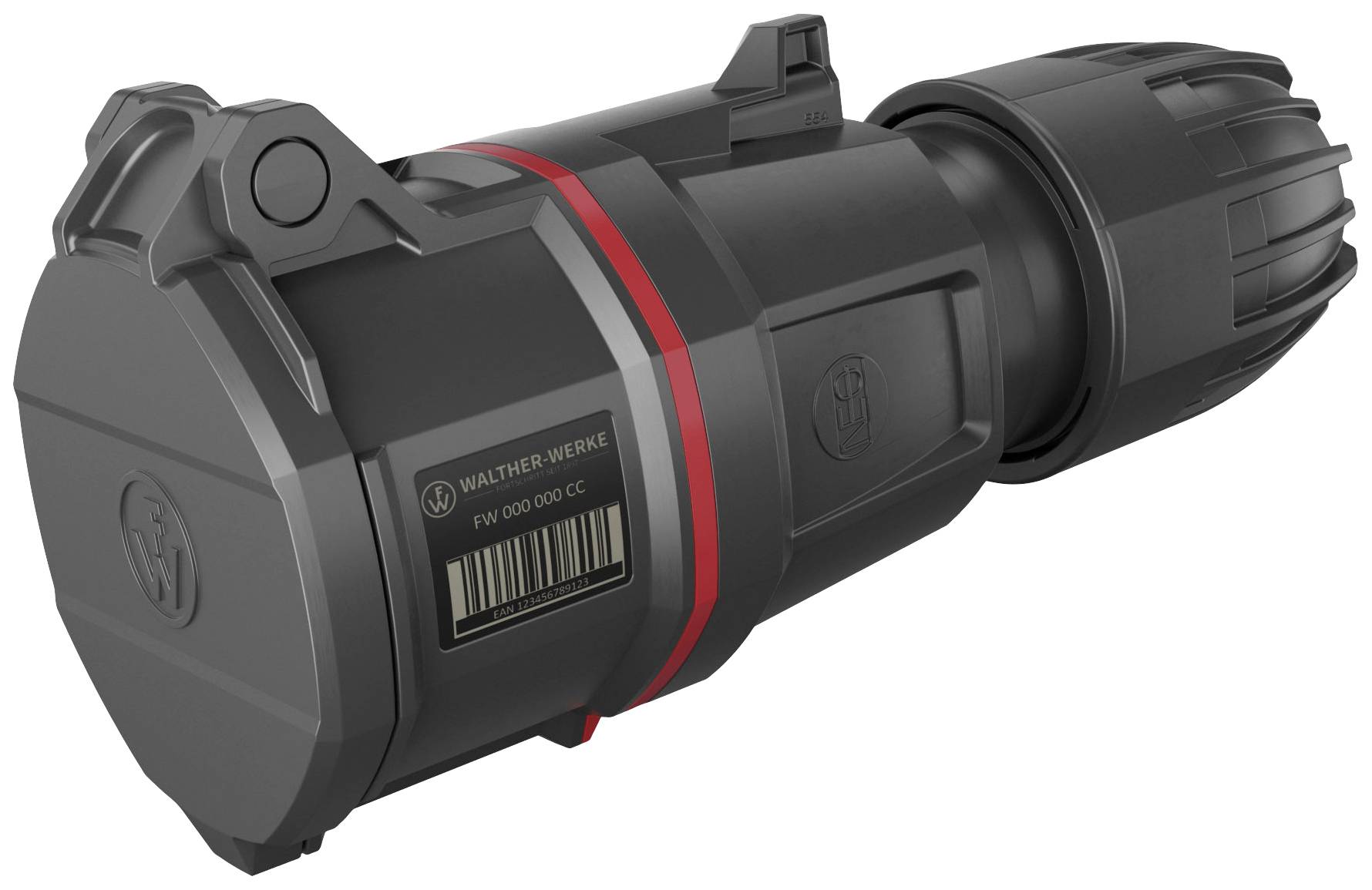

Walther Werke FW331506SK FW331506SK CEE connector 32 A 5-pin 200 V, 415 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details
CEE NEO clutch classic 32A 5P 6h
- CEE NEO clutch classic 32A 5P 6h
- Protection class IP54
- With screwing technology
- This text is machine translated.
Technical specifications
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Voltage according to IEC 60309 (I series): 200/346V-240/415V
- Time setting 6 h
- Colour code: Red
- Conductor cross-section (rigid): 2.5 - 10
- Conductor cross-section (flexible): 2.5 - 6
- Cable diameter 11.9 - 22.2
- Sheath length (L, N): 60 ± 2.5
- Stripping length (PE) 40 ± 2.5
- Stripping length 10:1
- Protection class (IP)IP54
- Connection technology: Screw less terminal
- With straight plug
- Cable inlet: Kink protection bushing
- Material: Plastic
- Contact material CuZn
- Surface treatment: Contacts untreated
- Flammability class of housing: V2
- Flammability class of the contact carrier: V0
- Product type
CEE connector
- Nominal voltage
200 V
415 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
CEE connector (5-pin, 32 A)
IP54
- Factory colour
Black

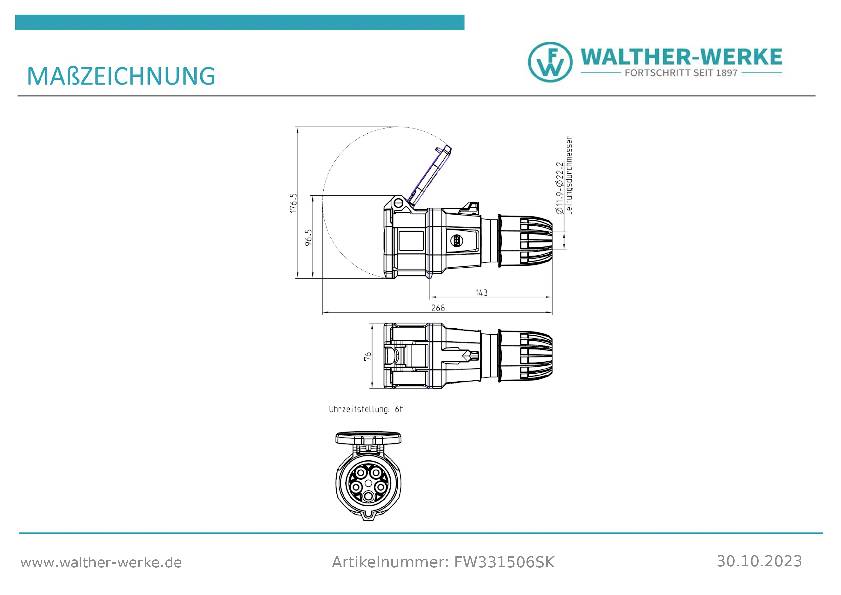

- Dim
(L x W x H) 370 x 180 x 170 mm
- Length
370 mm
- Width
180 mm
- Height
170 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3015697 Walther Werke FW331506SK FW331506SK CEE connector 32 A 5-pin 200 V, 415 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3015697 Walther Werke FW331506SK FW331506SK CEE connector 32 A 5-pin 200 V, 415 V 1 pc(s)
Description
Scope of delivery
- CEE NEO clutch classic 32A 5P 6h
- User manual.
