Walther Werke FW430506CC FW430506CC CEE add-on socket 32 A 5-pin 230 V, 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
14-day return policy included
Highlights & Details

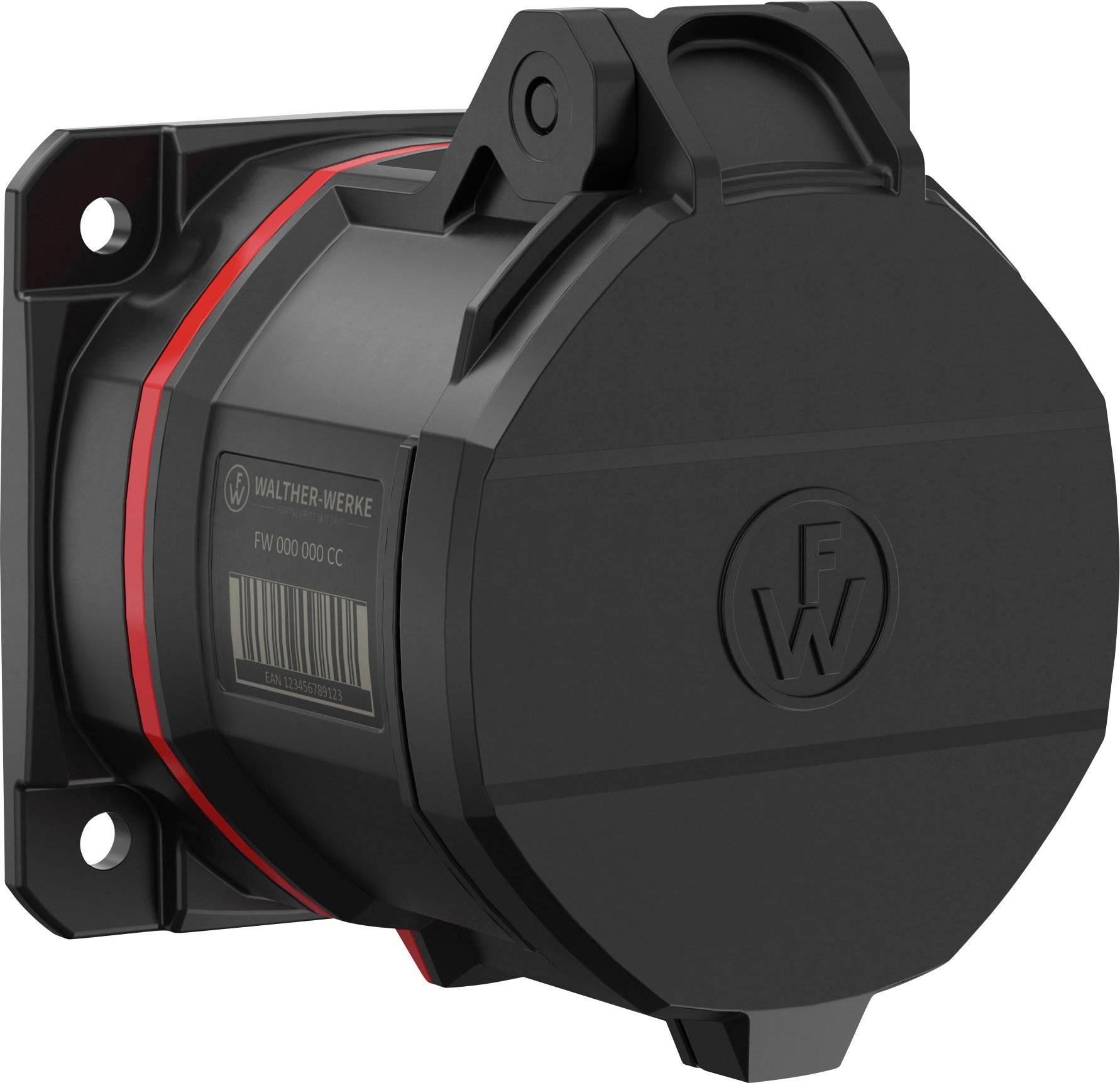

CEE NEO straight surface-mounted socket
- 32A 5P 6h
- Protection class IP54
- With spring-cage technology
- 80x80mm flange
- This text is machine translated.
Technical specifications
- Product type
CEE add-on socket
- Nominal voltage
230 V
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
CEE socket (5-pin, 32 A)
- Cores
5
IP54
- Factory colour
Black
Red
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3373246 Walther Werke FW430506CC FW430506CC CEE add-on socket 32 A 5-pin 230 V, 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3373246 Walther Werke FW430506CC FW430506CC CEE add-on socket 32 A 5-pin 230 V, 400 V 1 pc(s)
Description
Features
- 32A 5P 6H IP54 200/346V - 240/415V ~
- With red color ring coding
- Housing made of PA6 material
- With highly heat resistant contact carrier made of PA66 material
- Back of the hand protected according to BGV A3
- Flange dimensions 80x80 mm
- Mounting dimension 60x60 mm
Scope of delivery
- CEE NEO straight surface-mounted socket
