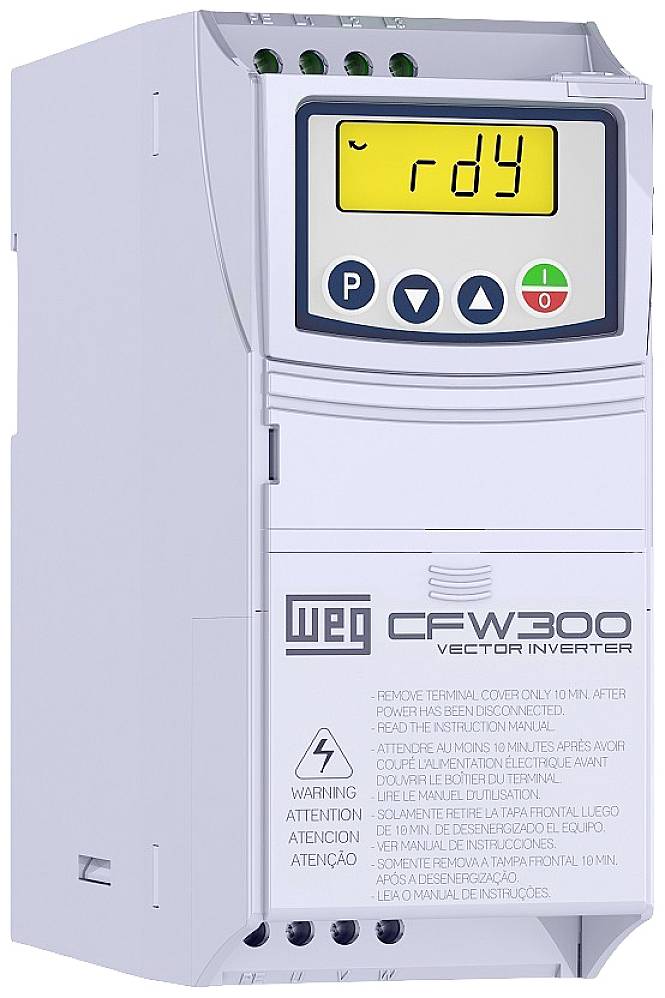

WEG Frequency inverter CFW300 A 02P6 T4 1.1 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Typical motor power:
- 1.1 kW with 150% overload capacity for 60s, 200% for 3sec., every 10 min.
- Up to 2.6 A motor nominal current with 4 digital inputs, programmable
- 1 relay output + 1 analogue input, programmable
- With painted PCB.
- Ambient conditions 1000 m.
- Operating temperature 0 °C to 40 °C.
- Up to 60°C with current derating (2% per 1°C above 40°C)
- Documentation: 1 x German
- Power specifications referring to 3AC 400V 50Hz, 4-pole motors
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
1.1 kW
- Max. frequency
60 Hz
- Min. frequency
50 Hz
- Network
3-phase
- Frequency range
50 Hz - 60 Hz
- Nominal current
2.6 A
- Depth
149 mm
- Height
158 mm
- Width
70 mm
IP20
- Type
CFW300 A 02P6 T4
- Dim
(W x H x D) 70 x 158 x 149 mm
- Manufacturer part #
14146822
- Weight
0.9 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523181 WEG Frequency inverter CFW300 A 02P6 T4 1.1 kW 3-phase 380 V, 480 V
Information
Information 2523181 WEG Frequency inverter CFW300 A 02P6 T4 1.1 kW 3-phase 380 V, 480 V
Description
The CFW300 variable speed drive is a powerful VSD for three-phase induction motors, Ideal for applications on machines or devices that require precise control and ease of use. It has compact size, electrical installation in contactor style, selectable PATH vector control (VVW) or scalar control (V/F), integrated user interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that can be added to offer advanced functionality, WAS makes it a flexible solution of excellent economy.
