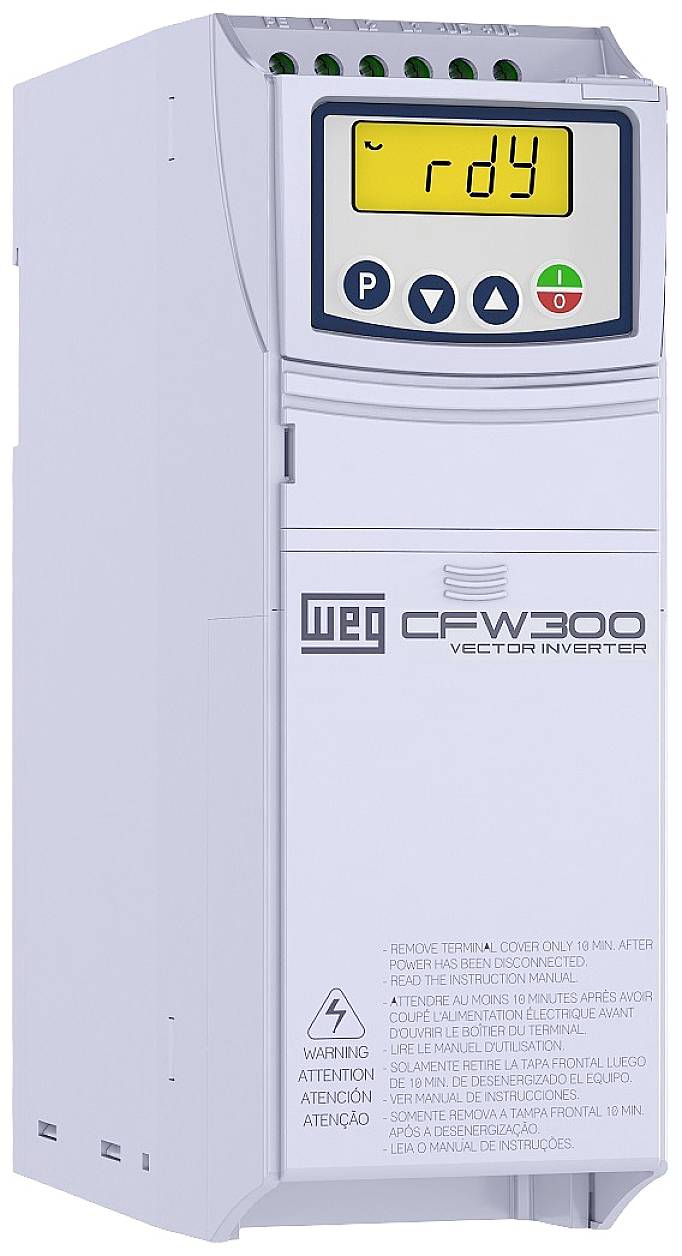

WEG Frequency inverter CFW300 B 10P0 B2 2.2 kW 200 V, 240 V
EAN:
Part number:
Item no:
Number
Total (€ 369.00 / piece)
€ 369.00
incl. VAT
14-day return policy included
Technical specifications
- Mains voltage 200 - 240V, 1-phase + 3-phase
- Typical motor power:
- 2.2 kW with 150% overload capacity for 60s, 200% for 3sec., every 10 min.
- Up to 10 A motor nominal current with 4 digital inputs, programmable
- 1 relay output + 1 analogue input, programmable
- With painted circuit boards
- Size: B.
- Environmental conditions: 1000 meters
- Operating temperature: 0°C to 50°C, 40°C for installation side by side
- Up to 60°C with current derating (2% per 1°C above 50°C)
- Documentation: 1 x German
- Power specifications referring to 3AC 220V 50Hz, 4-pole motors
- Certified to UL, CSA, CE
- Input voltage
200 V
240 V
- Product type
Frequency inverter
- Output rating (max.)
2.2 kW
- Max. frequency
60 Hz
- Min. frequency
50 Hz
- Frequency range
50 Hz - 60 Hz
- Nominal current
10 A
- Depth
199 mm
- Height
159 mm
- Width
70 mm
IP20
- Type
CFW300 B 10P0 B2
- Dim
(W x H x D) 70 x 159 x 199 mm
- Manufacturer part #
13059419
- Weight
1.34 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2523189 WEG Frequency inverter CFW300 B 10P0 B2 2.2 kW 200 V, 240 V
Information
Information 2523189 WEG Frequency inverter CFW300 B 10P0 B2 2.2 kW 200 V, 240 V
Description
The CFW300 variable speed drive is a powerful VSD for three-phase induction motors, Ideal for applications on machines or devices that require precise control and ease of use. It has compact size, electrical installation in contactor style, selectable PATH vector control (VVW) or scalar control (V/F), integrated user interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that can be added to offer advanced functionality, WAS makes it a flexible solution of excellent economy.
