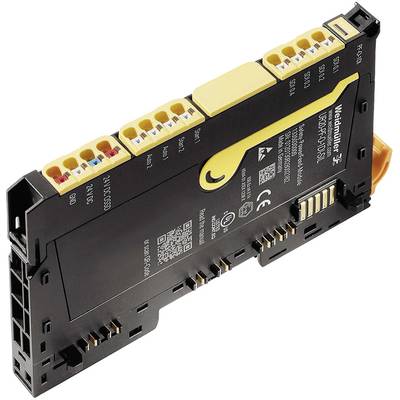

Weidmüller UR20-PF-O-1DI-SIL 1335030000 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Highlights & Details
SIL3 infeed modules
- Connection for an emergency stop circuit
Technical specifications
- SIL 3 according to IEC 62061
- OSSD output
- Product type
PLC add-on module
- Operating voltage
24 V DC
- Height
120 mm
- Width
11.5 mm
IP20
- Dim
(W x H x D) 11.5 x 120 x 76 mm
- Manufacturer part #
1335030000
- Type
UR20-PF-O-1DI-SIL
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Weight
85 g
- Depth
76 mm
- Inputs / outputs
1 digital input
11.5
120 mm
76 mm
DC
FALSE
0
0
0
0
0
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
None
None
IP20
FALSE
FALSE
0
FALSE
FALSE
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 1198392 Weidmüller UR20-PF-O-1DI-SIL 1335030000 PLC add-on module 24 V DC
User & Safety Instructions
User & Safety Instructions 1198392 Weidmüller UR20-PF-O-1DI-SIL 1335030000 PLC add-on module 24 V DC
Description
Weidmüller u-remote - the innovative remote I/O concept in IP20, which is only intended for the use of the advantages for the user-oriented:
Tailor-made plans, faster, install, secure in operation, standstill. For a much better performance and higher productivity.
The reduction of control cabinets can be reached with u-remote by its narrow design and thanks to lower demand for feed-in modules. A tool-free installation, the modular design as well as the integrated web server to accelerate the installation in control cabinet and machine. Status LEDs directly on the channel as well as on each u-remote module enable reliable diagnosis and quick service.
Modules
In case of u-remote benefits the electrician that he the wiring already vorkonfektionieren. Then follows with the installation of the Principle Plug & Play with the pluggable connection level. This is possible due to the innovative push-in technology, which no tools are needed and the installation of significantly speeds up. The contact is safe and long-lasting - and not by the care of the user-dependent. Type tests and numerous tests confirm this. And even in a later exchange, the individual wiring not piece by piece to be released. It looks like sustainable time saving.
This text is machine translated.
Tailor-made plans, faster, install, secure in operation, standstill. For a much better performance and higher productivity.
The reduction of control cabinets can be reached with u-remote by its narrow design and thanks to lower demand for feed-in modules. A tool-free installation, the modular design as well as the integrated web server to accelerate the installation in control cabinet and machine. Status LEDs directly on the channel as well as on each u-remote module enable reliable diagnosis and quick service.
Modules
In case of u-remote benefits the electrician that he the wiring already vorkonfektionieren. Then follows with the installation of the Principle Plug & Play with the pluggable connection level. This is possible due to the innovative push-in technology, which no tools are needed and the installation of significantly speeds up. The contact is safe and long-lasting - and not by the care of the user-dependent. Type tests and numerous tests confirm this. And even in a later exchange, the individual wiring not piece by piece to be released. It looks like sustainable time saving.
This text is machine translated.
