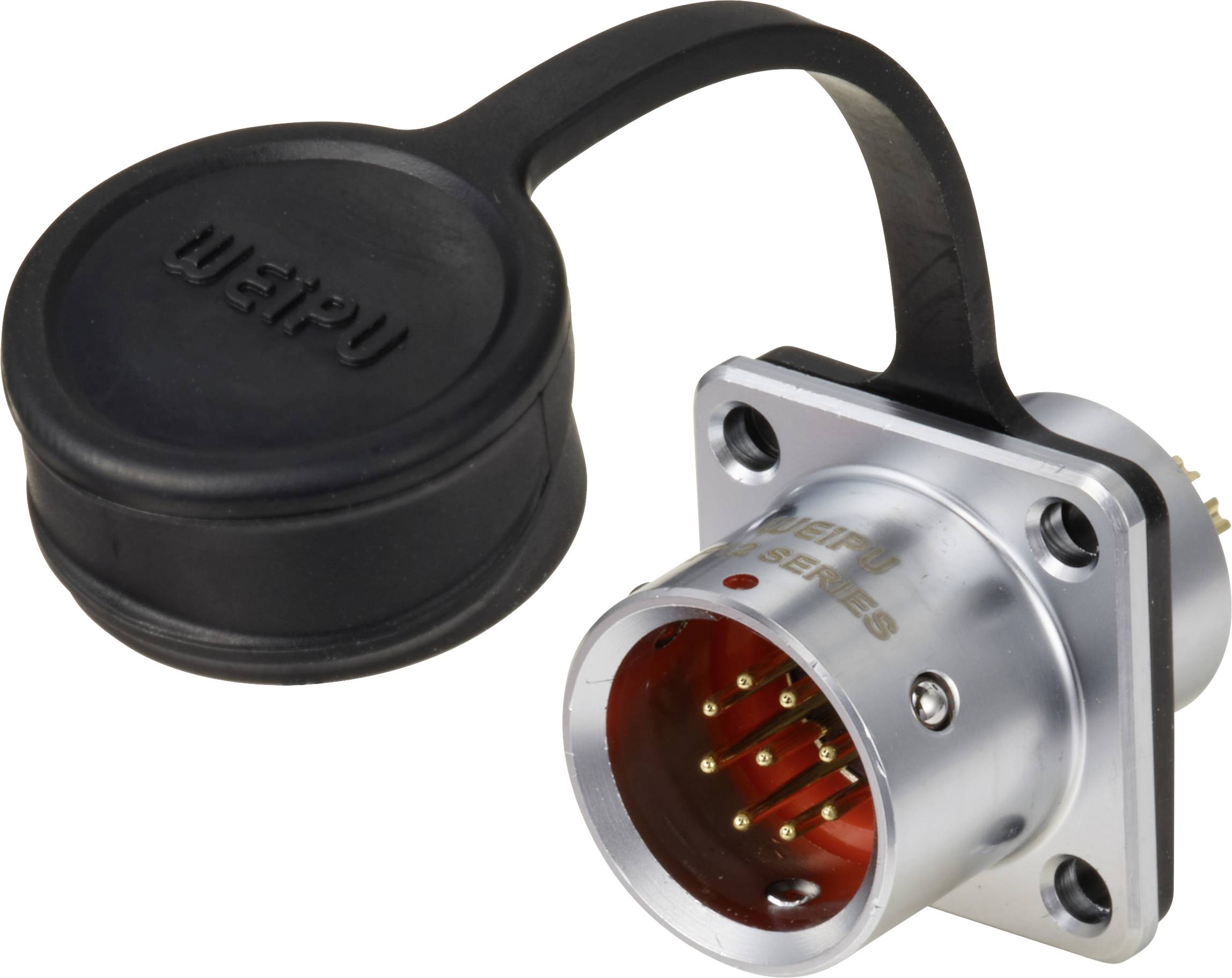

Weipu SF1213/P9 Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)

Weipu SF1213/P9 Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)-0
A silver-coloured socket connector with three metal pins, used for electrical connections in audio devices.

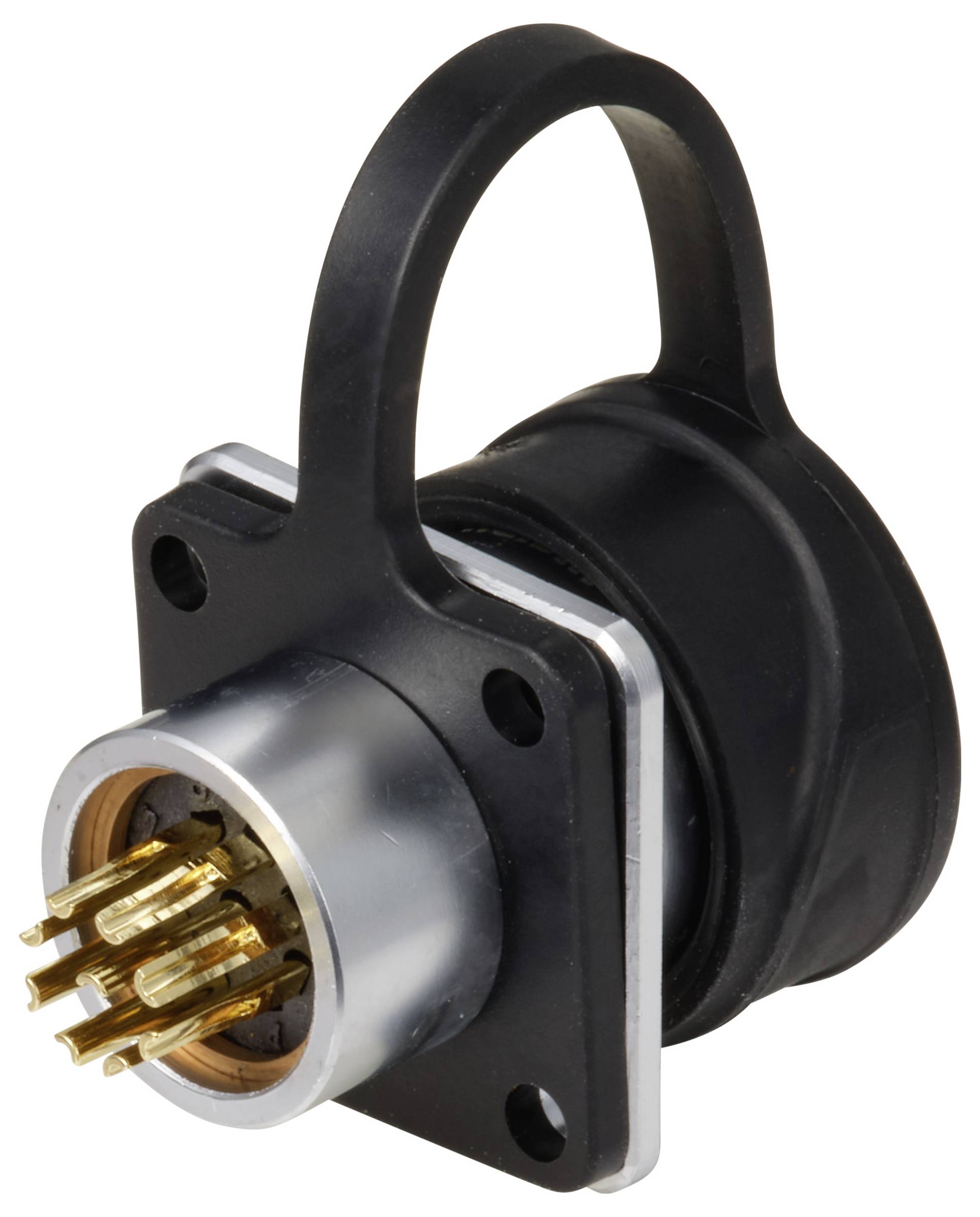

Weipu SF1213/P9 Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)-2
Weipu SF1213/P9 Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)-3

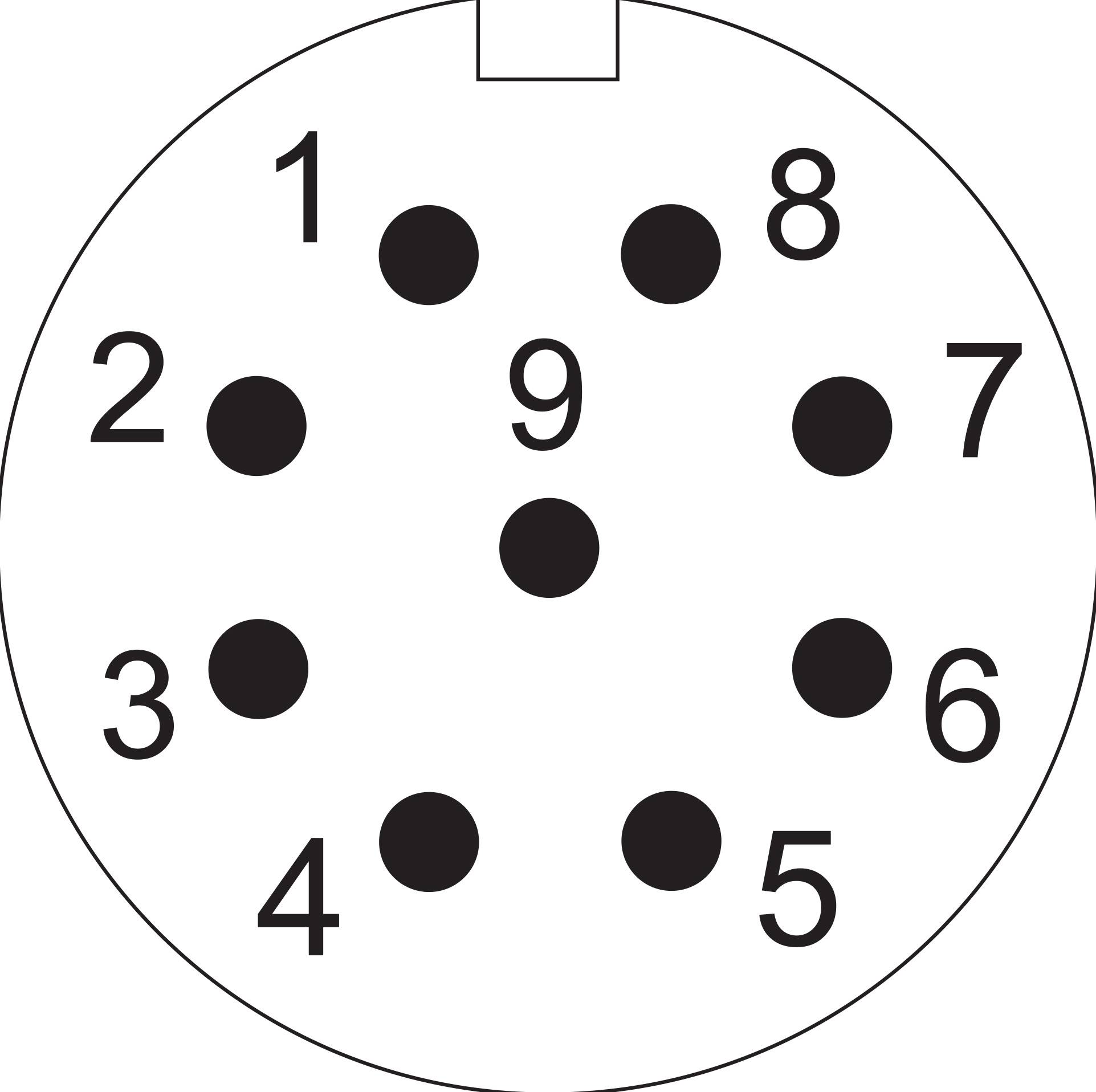

Diagram of a 9-pin electrical plug, with numbered contacts.
1/5
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
9
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 2 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.99 / piece)
€ 7.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Push-pull circular connector IP67

  • IP67

Our service for you

Technical specifications

Type

SF1213/P9

Product type

Bullet connector

Connector type

Plug, straight

Total no. of pins

9

Connection

Soldering

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

3 A

Min. temperature

-25 °C

Nominal current - rounded value

3 A

Seal

Push-Pull

Nominal voltage

125 V

Contact material

Brass gold plated

Case material

Brass, chrome plated

18

Connection angle

180°

Manufacturer part #

SF1213/P9

Number of pins

9

max. cross section

2 mm²

Cross-section range

2 mm² (max)

RoHS-compliant

Yes

IP67

Series

SF12

Documents & Downloads

Datasheet

Datasheet 716533 Weipu SF1213/P9 Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)

User & Safety Instructions

User & Safety Instructions 716533 Weipu SF1213/P9 Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SF12 1 pc(s)

Description

The Circular Connectors of the series SF12 with push-pull locking mechanism provides for a compact and secure connection. Quick and easy plug and lock and cutting. Blind and easy connect/disconnect at places difficult to access by a very low space requirement. Application in measurement and protocol devices, in the robot and industrial technology.

This text is machine translated.
