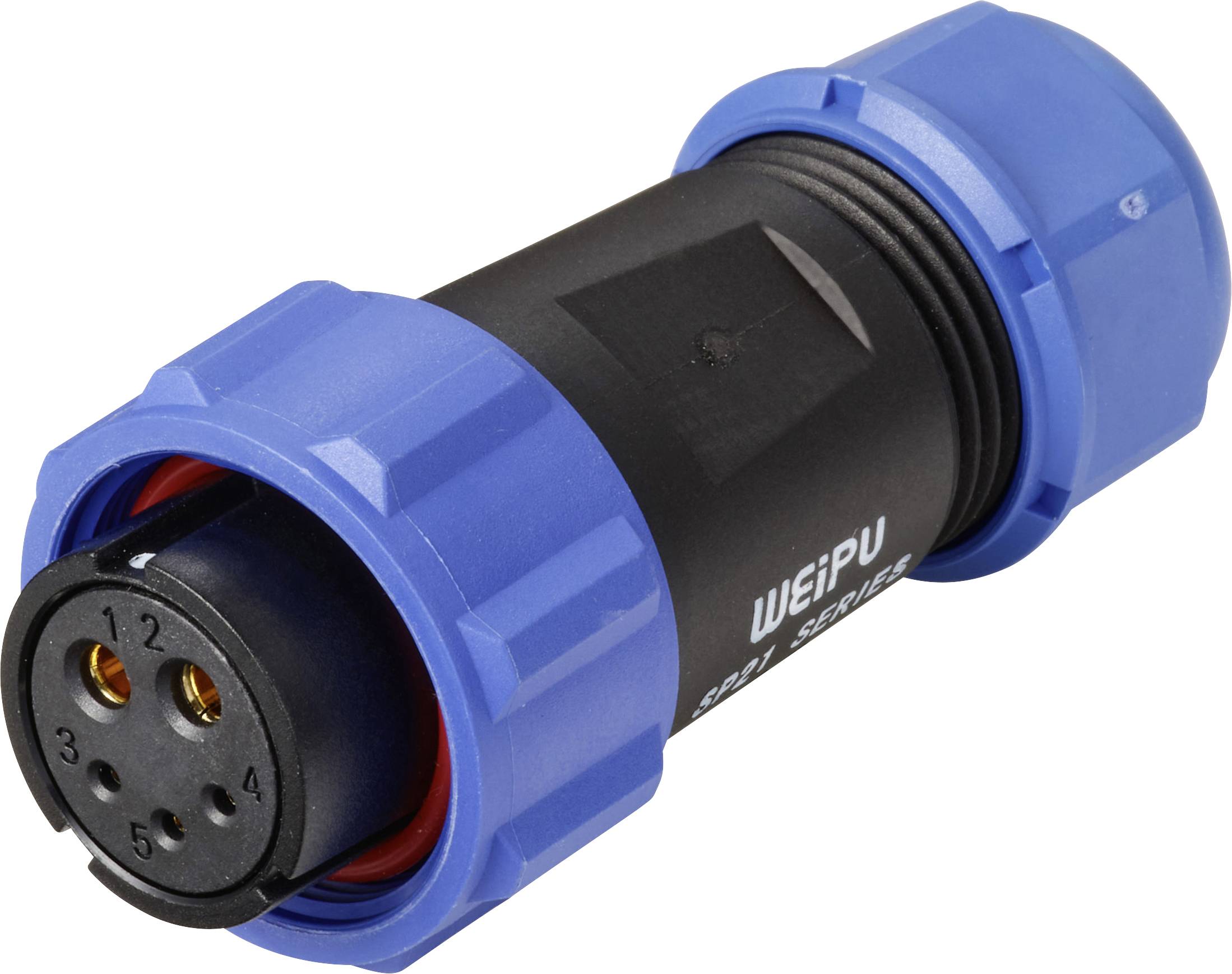

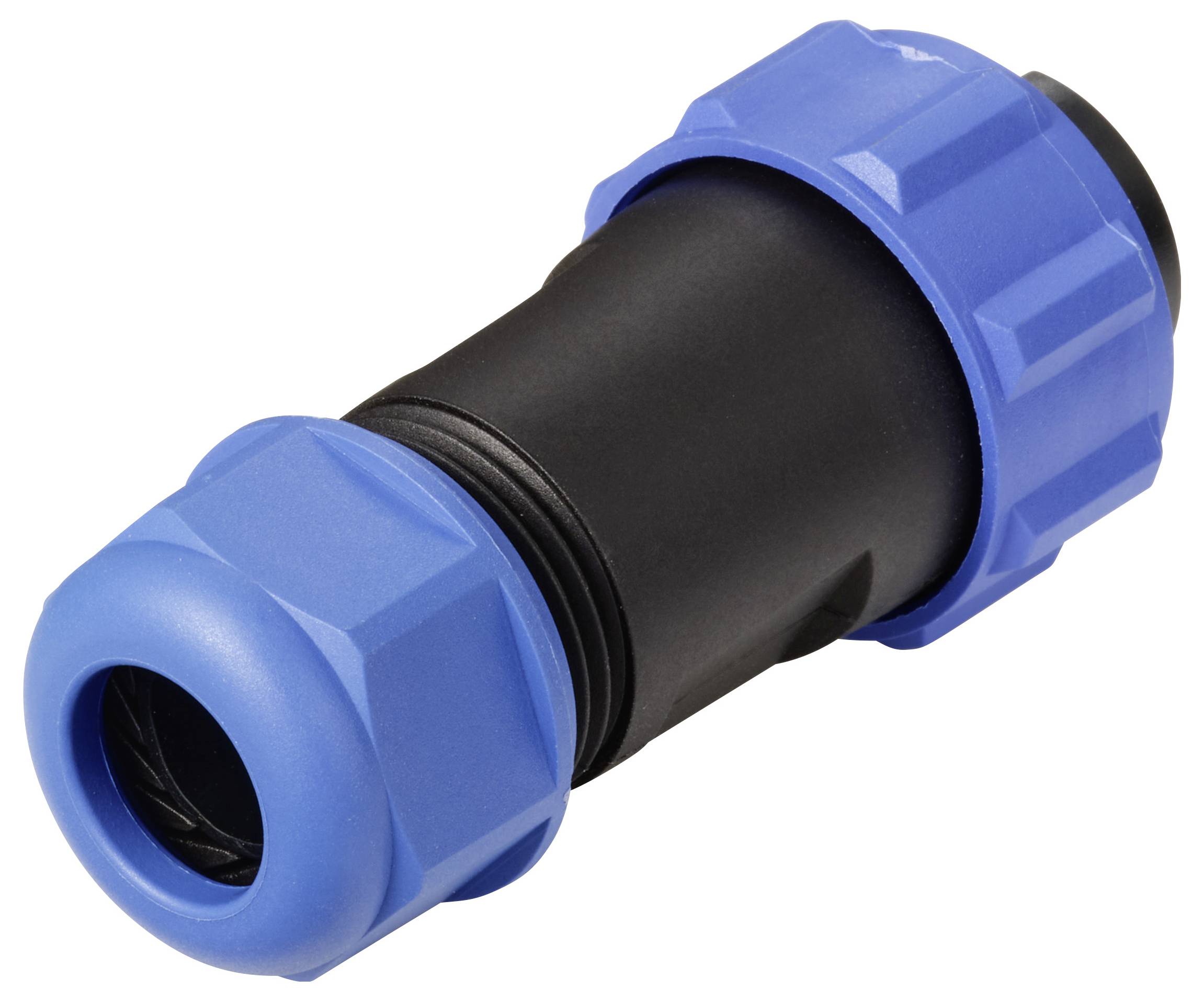

Weipu SP2110 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, straight
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
30 A
Datasheet (PDF)
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Only 6 Piece(s) available
Highlights & Details
IP68 plug connector series SP2110/S5 B II
Our service for you
Technical specifications
- Type
SP2110 / S 5B II
- Product type
Bullet connector
- Connector type
Socket, straight
- Connection
Soldering
- Content
1 pc(s)
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Seal
Screw-type locking
- Nominal voltage
500 V AC
- Contact material
Gold plated
- Cable Ø (max.)
12 mm
- Cable Ø up to
7 mm
- Case material
PPS
18/11
- Connection angle
180°
- Manufacturer part #
SP2110 / S 5B II
- Cable Ø range
7 - 12 mm
- max. cross section
4.17 mm²
- Cross-section range
4.17 mm² (max)
- RoHS-compliant
Yes
IP68
- Series
SP21
Documents & Downloads
Datasheet
Datasheet 737318 Weipu SP2110 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)
User & Safety Instructions
User & Safety Instructions 737318 Weipu SP2110 / S 5B II Bullet connector Socket, straight Series (round connectors): SP21 1 pc(s)
Description
The round plug-in connector series SP 21 with screw lock provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.
