Name: Weipu SP2112 / P 5C Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): SP21 1 pc(s)
Brand: Weipu
SKU: 738343
Availability: InStock

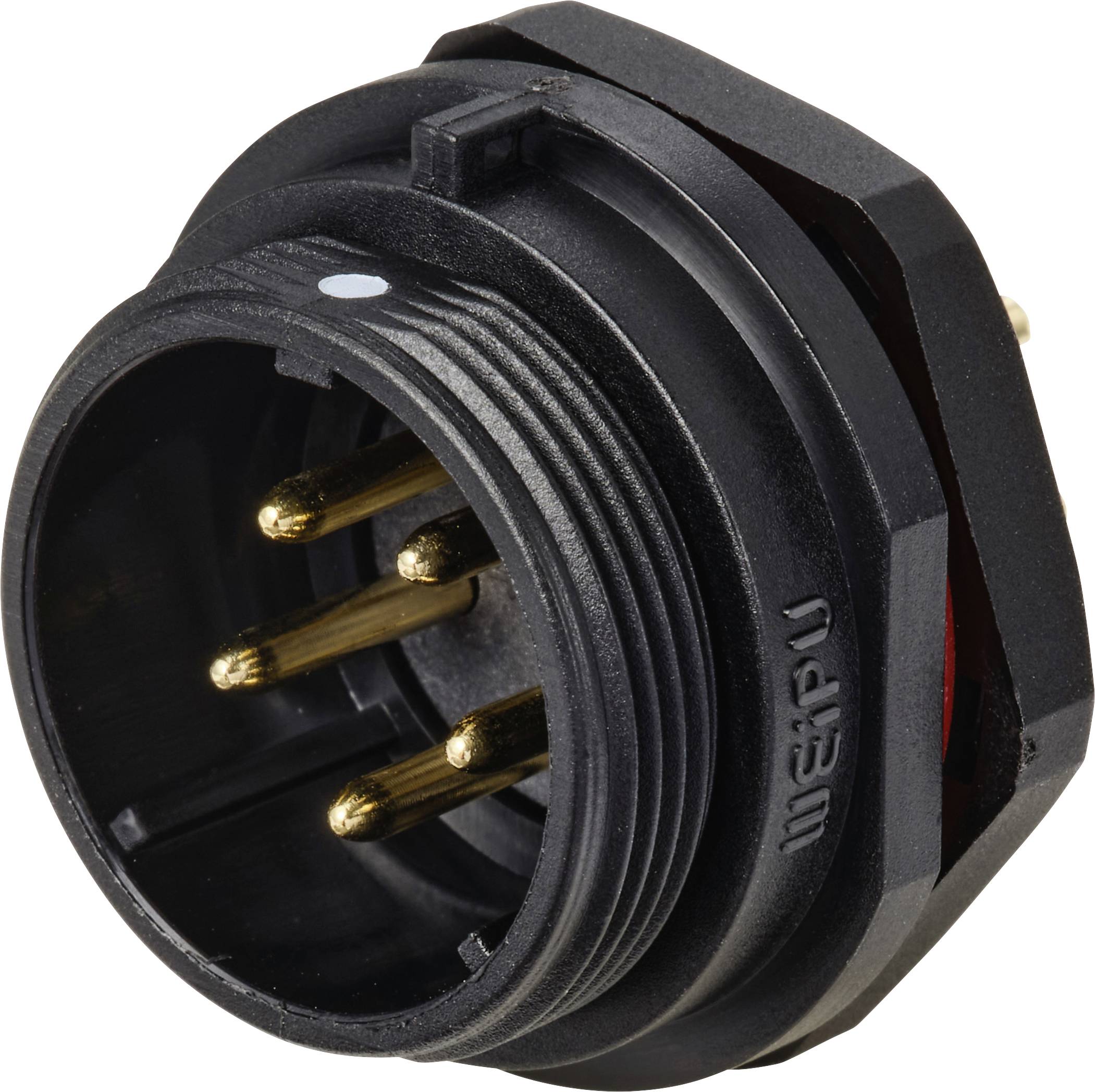

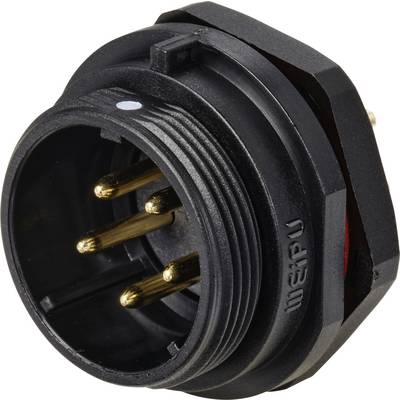

Weipu SP2112 / P 5C Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): SP21 1 pc(s)-0

Black, round connector with four golden pins. Suitable for electrical connections in technical applications.

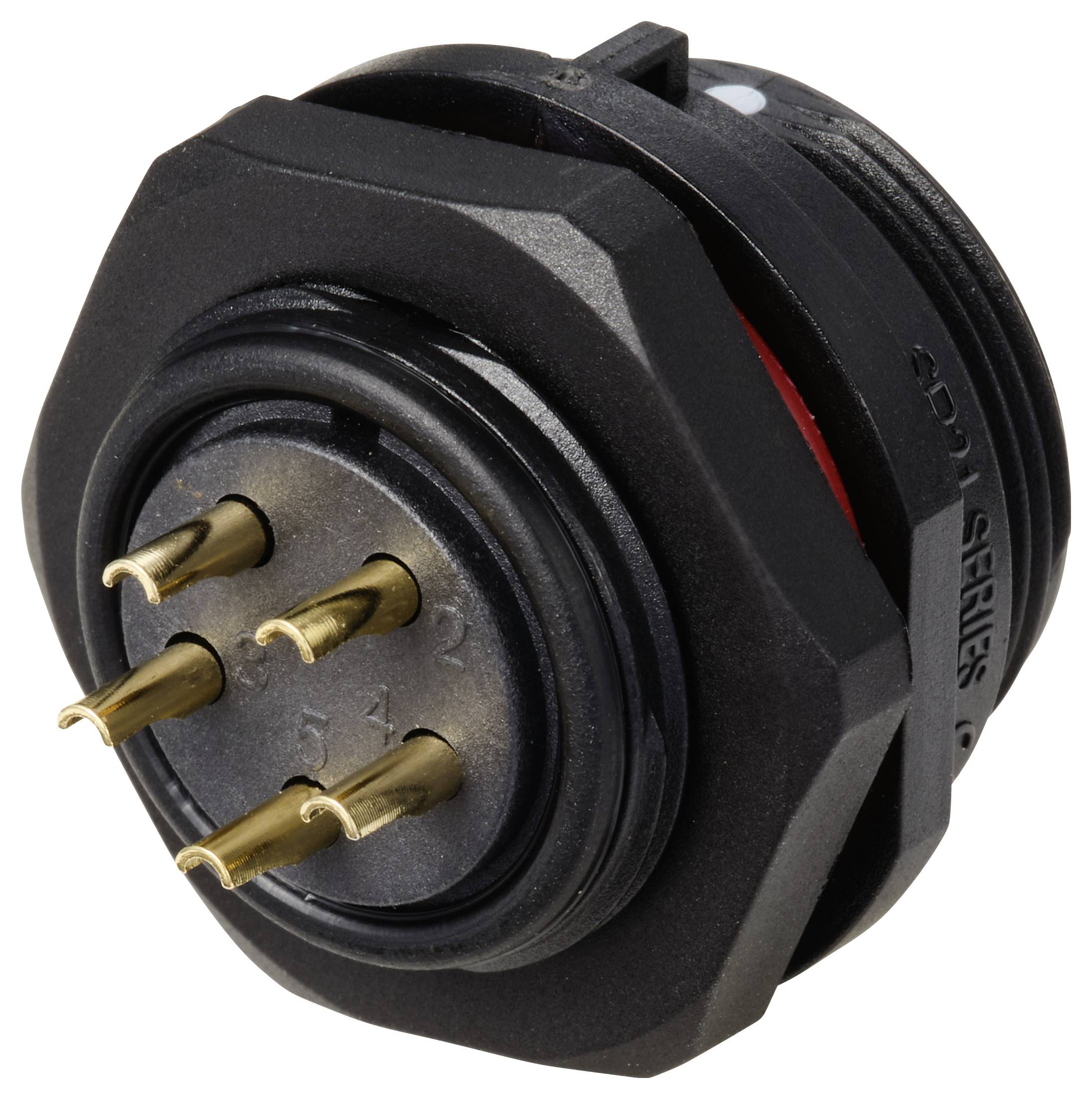

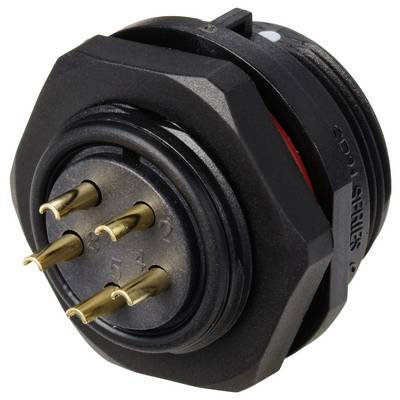

Weipu SP2112 / P 5C Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): SP21 1 pc(s)-2

Weipu SP2112 / P 5C Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): SP21 1 pc(s)-3

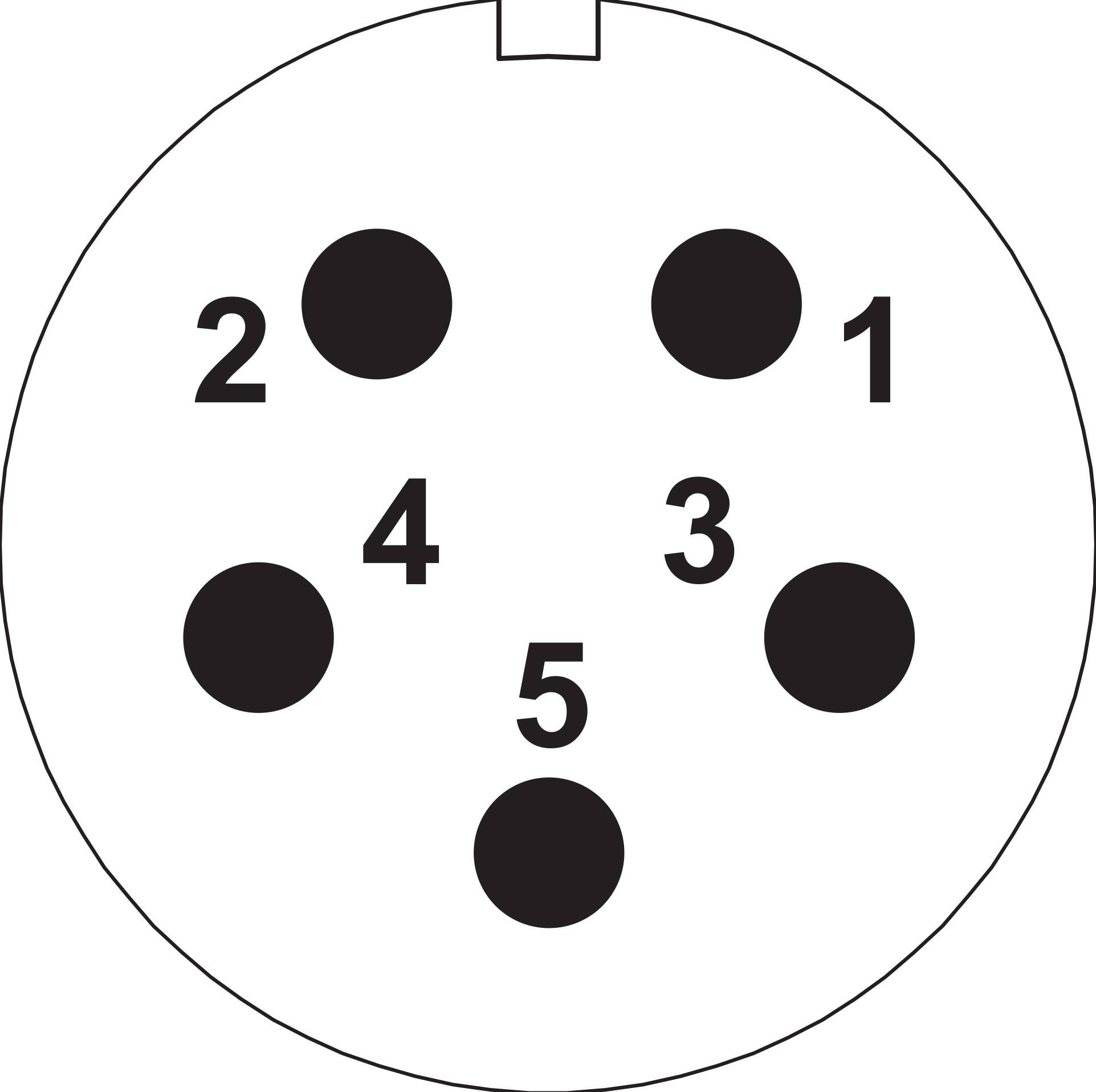

Connector diagram of a 5-pin DIN plug. The pins are numbered from 1 to 5 in a circular pattern.

1/5

Product type

Bullet connector

Connector type

Plug, mount

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.99 / piece)

€ 6.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

IP68 plug connector series SP0401/P5C

Our service for you

Technical specifications

Type: SP2112 / P 5C

Product type: Bullet connector

Connector type: Plug, mount

Total no. of pins: 5

Connection: Soldering

Content: 1 pc(s)

Max. temperature: +80 °C

Nominal current: 9 A

Min. temperature: -25 °C

Nominal current - rounded value: 9 A

Seal: Screw-type locking

Nominal voltage: 250 V

Contact material: Gold plated

Case material: PPS

: 14

Connection angle: 180°

Mounting hole diameter: 21 mm

Manufacturer part #: SP2112 / P 5C

Number of pins: 5

max. cross section: 2 mm²

Cross-section range: 2 mm² (max)

RoHS-compliant: Yes

: IP68

Series: SP21

Variants(All information include VAT, plus shipping costs)

Connector type

Nominal current - rounded value

Nominal voltage

Total no. of pins

Weipu SP2110 / P 12 II Bullet connector Plug, straight Total number of pins: 12 Series (round connectors): SP21 1 pc(s)

Item no:736847

Fast track dispatch on Thu 29 Oct

253 Piece(s)Conrad Electronic

Plug, straight

5 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Weipu SP2110 / P 2 I Bullet connector Plug, straight Total number of pins: 2 Series (round connectors): SP21 1 pc(s)

Item no:736559

Fast track dispatch on Thu 29 Oct

1341 Piece(s)Conrad Electronic

Plug, straight

30 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 3 I Bullet connector Plug, straight Total number of pins: 3 Series (round connectors): SP21 1 pc(s)

Item no:736592

Fast track dispatch on Thu 29 Oct

240 Piece(s)Conrad Electronic

Plug, straight

30 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 4 I Bullet connector Plug, straight Total number of pins: 4 Series (round connectors): SP21 1 pc(s)

Item no:736639

Fast track dispatch on Thu 29 Oct

87 Piece(s)Conrad Electronic

Plug, straight

30 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 5 II Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP21 1 pc(s)

Item no:736672

Available soon

Conrad Electronic

Plug, straight

30 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.49^*

Weipu SP2110 / P 5B II Bullet connector Plug, straight Series (round connectors): SP21 1 pc(s)

Item no:736706

Fast track dispatch on Thu 29 Oct

26 Piece(s)Conrad Electronic

Plug, straight

30 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Weipu SP2110 / P 5C II Bullet connector Plug, straight Total number of pins: 5 Series (round connectors): SP21 1 pc(s)

Item no:736746

Fast track dispatch on Thu 29 Oct

110 Piece(s)Conrad Electronic

Plug, straight

15 A

250 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Weipu SP2110 / P 7 II Bullet connector Plug, straight Total number of pins: 7 Series (round connectors): SP21 1 pc(s)

Item no:736780

Fast track dispatch on Thu 29 Oct

205 Piece(s)Conrad Electronic

Plug, straight

15 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Weipu SP2110 / P 9 II Bullet connector Plug, straight Total number of pins: 9 Series (round connectors): SP21 1 pc(s)

Item no:736811

Fast track dispatch on Thu 29 Oct

24 Piece(s)Conrad Electronic

Plug, straight

5 A

250 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Weipu SP2110 / S 12 II Bullet connector Socket, straight Total number of pins: 12 Series (round connectors): SP21 1 pc(s)

Item no:737463

Fast track dispatch on Thu 29 Oct

97 Piece(s)Conrad Electronic

Socket, straight

5 A

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Documents & Downloads

Datasheet

Datasheet 738343 Weipu SP2112 / P 5C Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): SP21 1 pc(s)

User & Safety Instructions

User & Safety Instructions 738343 Weipu SP2112 / P 5C Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): SP21 1 pc(s)

Description

The round plug-in connector series SP 21 with screw lock provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.
