Buy Weipu SP2113 / P 9 Bullet connector Plug, mount Total number of pins: 9 Series (round connectors): SP21 1 pc(s)

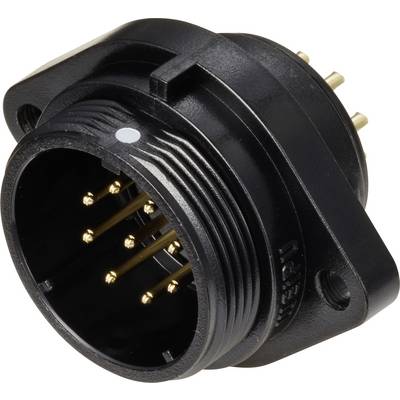

Weipu SP2113 / P 9 Bullet connector Plug, mount Total number of pins: 9 Series (round connectors): SP21 1 pc(s)-0

Black, circular electrical plug with four gold contacts, suitable for industrial applications.

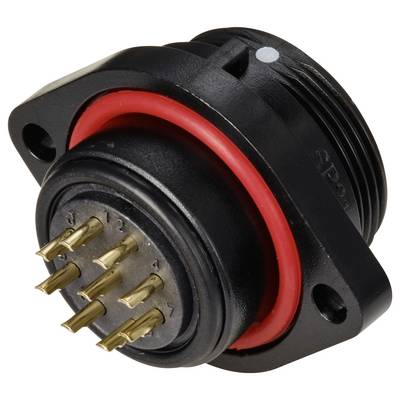

Weipu SP2113 / P 9 Bullet connector Plug, mount Total number of pins: 9 Series (round connectors): SP21 1 pc(s)-2

Weipu SP2113 / P 9 Bullet connector Plug, mount Total number of pins: 9 Series (round connectors): SP21 1 pc(s)-3

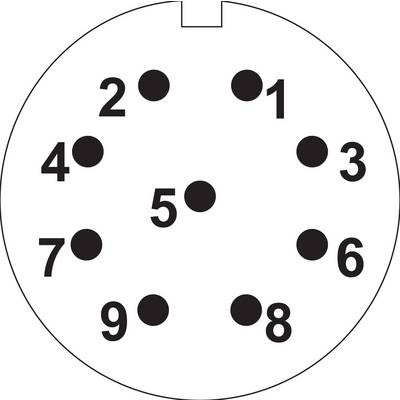

Illustration of an electrical connection diagram with nine numbered pins arranged in a circular configuration.

1/5

Product type

Bullet connector

Connector type

Plug, mount

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

240 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.45 / piece)

€ 5.45

plus VAT.

Report legal concerns

Highlights & Details

IP68 plug connector series SP 2113/P9

Our service for you

Technical specifications

Type: SP2113 / P 9

Product type: Bullet connector

Connector type: Plug, mount

Total no. of pins: 9

Connection: Soldering

Content: 1 pc(s)

Nominal current: 10 A

Nominal current - rounded value: 10 A

Seal: Screw-type locking

Nominal voltage: 250 V

Contact material: Gold plated

Case material: PPS

: 18

Connection angle: 180°

Mounting hole diameter: 21 mm

Manufacturer part #: SP2113 / P 9

Number of pins: 9

max. cross section: 0.758 mm²

Cross-section range: 0.758 mm² (max)

RoHS-compliant: Yes

: IP68

Series: SP21

Documents & Downloads

Datasheet

Datasheet 739297 Weipu SP2113 / P 9 Bullet connector Plug, mount Total number of pins: 9 Series (round connectors): SP21 1 pc(s)

User & Safety Instructions

User & Safety Instructions 739297 Weipu SP2113 / P 9 Bullet connector Plug, mount Total number of pins: 9 Series (round connectors): SP21 1 pc(s)

Description

The round plug-in connector series SP 21 with screw lock provide for a compact and secure connection when a degree of sealing against the environment is required. The connectors are characterized by high resistance (2.0 m depth of water for 1 week). For applications in power or signal transmissions, for indoor and outdoor use. UV resistant Typical applications are, for example, Navigation and radar equipment, test devices, data communication devices, Protocol devices, Telemetry Devices, robotics, measuring devices, LED light and display in the outdoor area.
