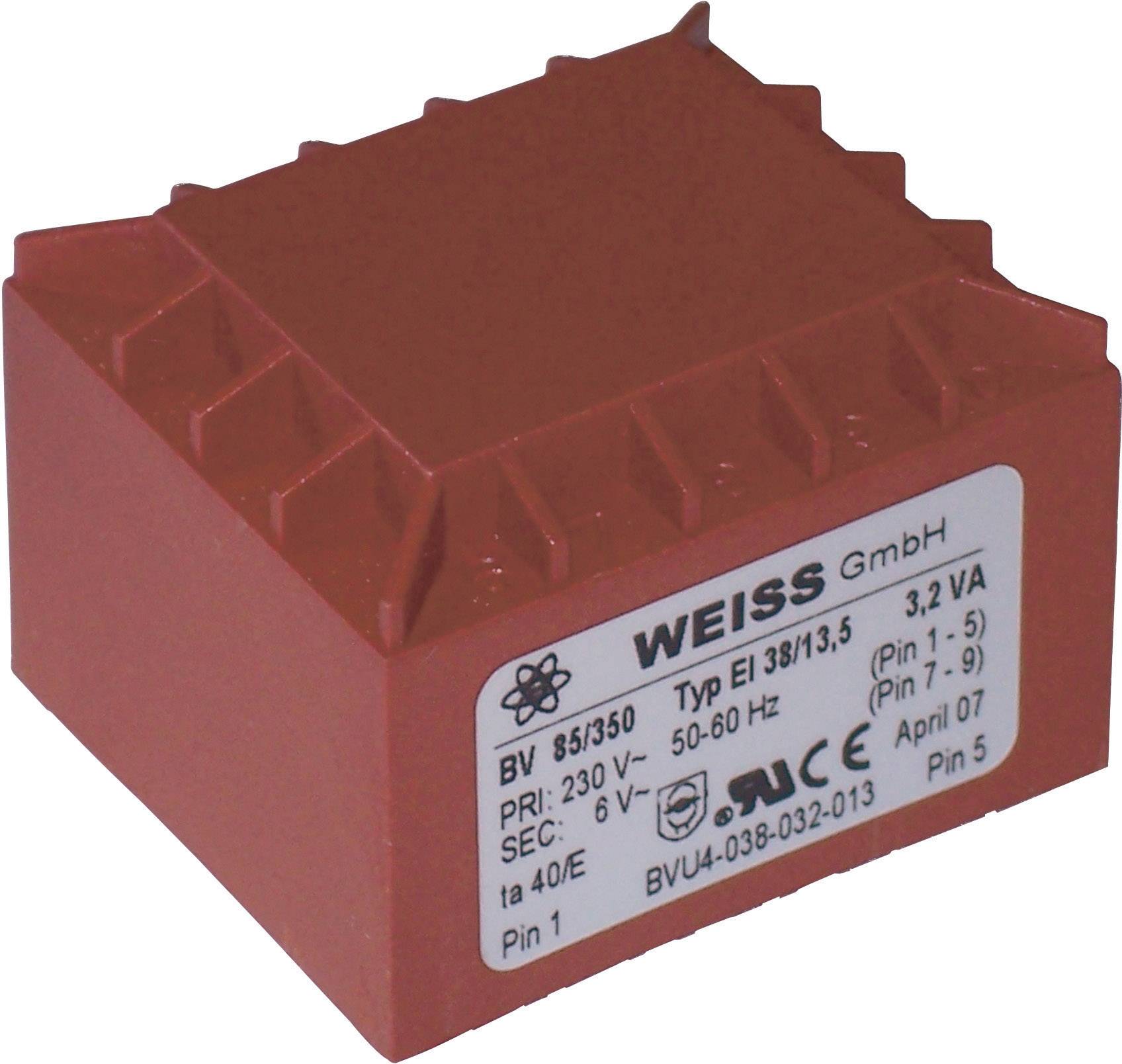

Weiss Elektrotechnik 85/350 PCB mount transformer 1 x 230 V 1 x 6 V AC 3.20 VA 533 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
Weiss Elektrotechnik 85/350 PCB mount transformer 1 x 230 V 1 x 6 V AC 3.20 VA 533 mA
- 1 x 230 V
- 1 x 6 V AC
- 533 mA
- 3.20 VA
Technical specifications
- Pin assignment primary: PIN 1 - 5, pin assigment secondary 1: PIN 7 - 9
- Design: UL 506
- Product type
PCB mount transformer
- Output voltage
6 V AC
- Output voltage (number x voltage)
1 x 6 V AC
- Output current
533 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
3.20 VA
- Width
35 mm
- Height
29 mm
- Length
41 mm
- Type
85/350

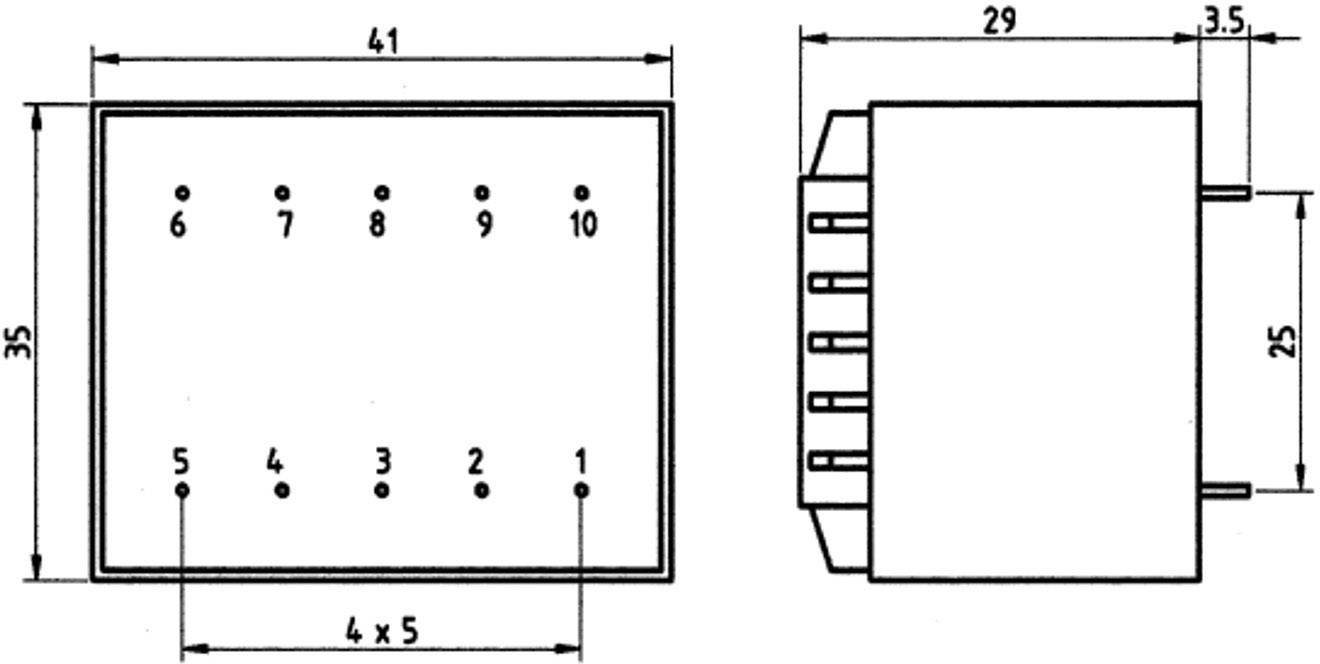

- Dim
(L x W x H) 41 x 35 x 29 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
165 g
- Content
1 pc(s)
3.2 VA
- Output voltage
6 V
