Name: Weller W 201 LÖTKOLBEN 230V Soldering iron 200 W 370 °C (max)
Brand: Weller
SKU: 3762066

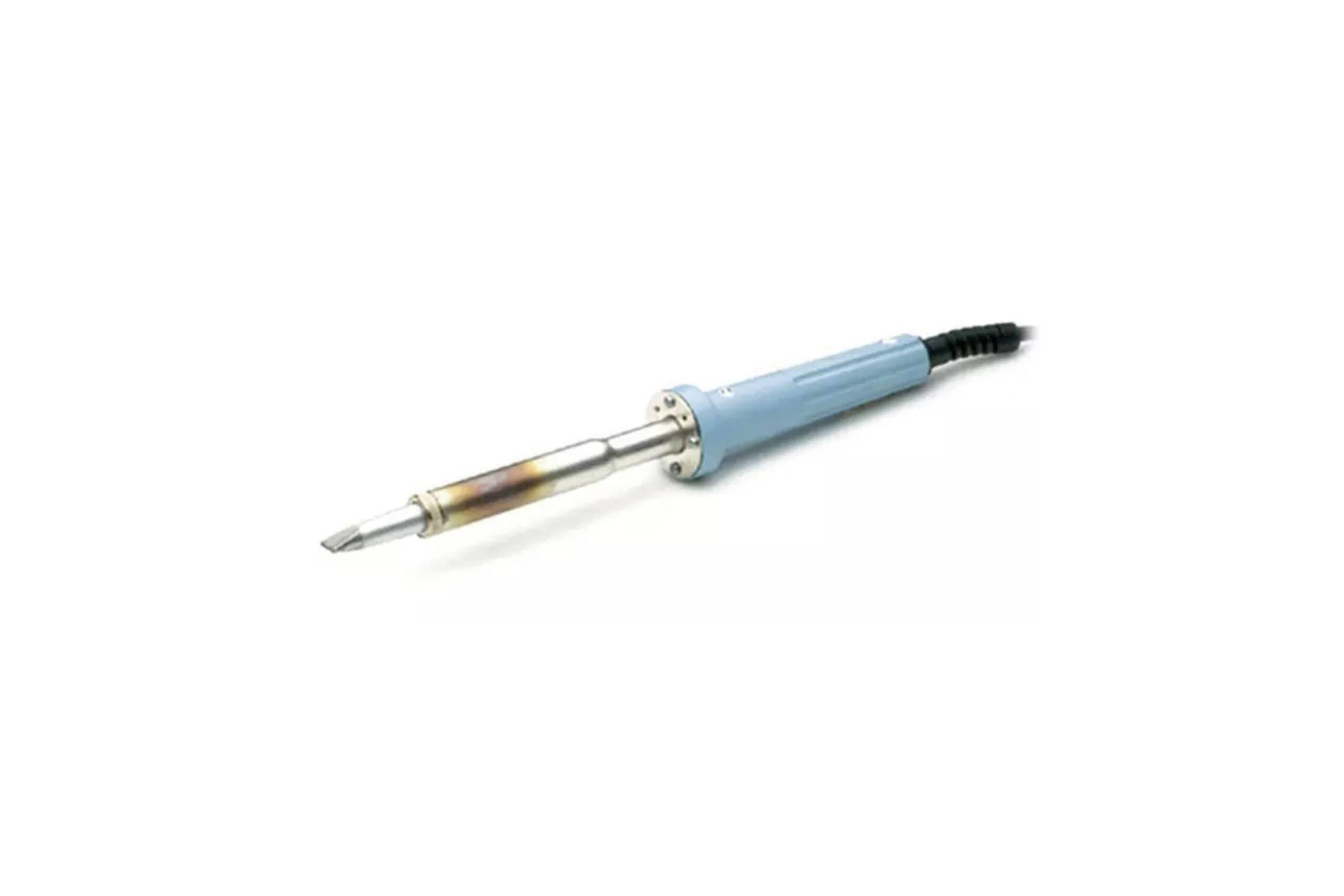

Close-up of a soldering iron with a blue handle and metal tip on a white background.

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

ESD-safe: Yes
Output: 200 W
Soldering: Yes
Magnastat: Yes
TIP TYPE CT2 CT6 HM LT PT
Temperature range (depending on tool): 370°C.
Temperature range 370°C

Product type: Soldering iron

Max. power: 200 W

Max. temperature: 370 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3762066 Weller W 201 LÖTKOLBEN 230V Soldering iron 200 W 370 °C (max)

Description

Mains power soldering iron 200 W. The Magnastat system works with a permanent magnet and a ferromagnetic temperature sensor. If the soldering tip is cold, the permanent magnet is attracted by the ferromagnetic temperature sensor. In this state the switch is closed and the heating is switched on. When the temperature sensor approaches its low curie point, i.e. the selected peak temperature, its magnetic behavior will change and the heating will be switched off. If the tip cools down a little, the temperature sensor retracts and the control circuit starts again. The working temperature is selected by simply changing the soldering tip with the temperature sensor attached to it. Weller longlife soldering tips cover temperature ranges 260°, 310°C, 370°C, 425°C and 480°C. The WTCP 51 is not suitable for ESD-safe applications, because the soldering iron is not anti-static.

This text is machine translated.
