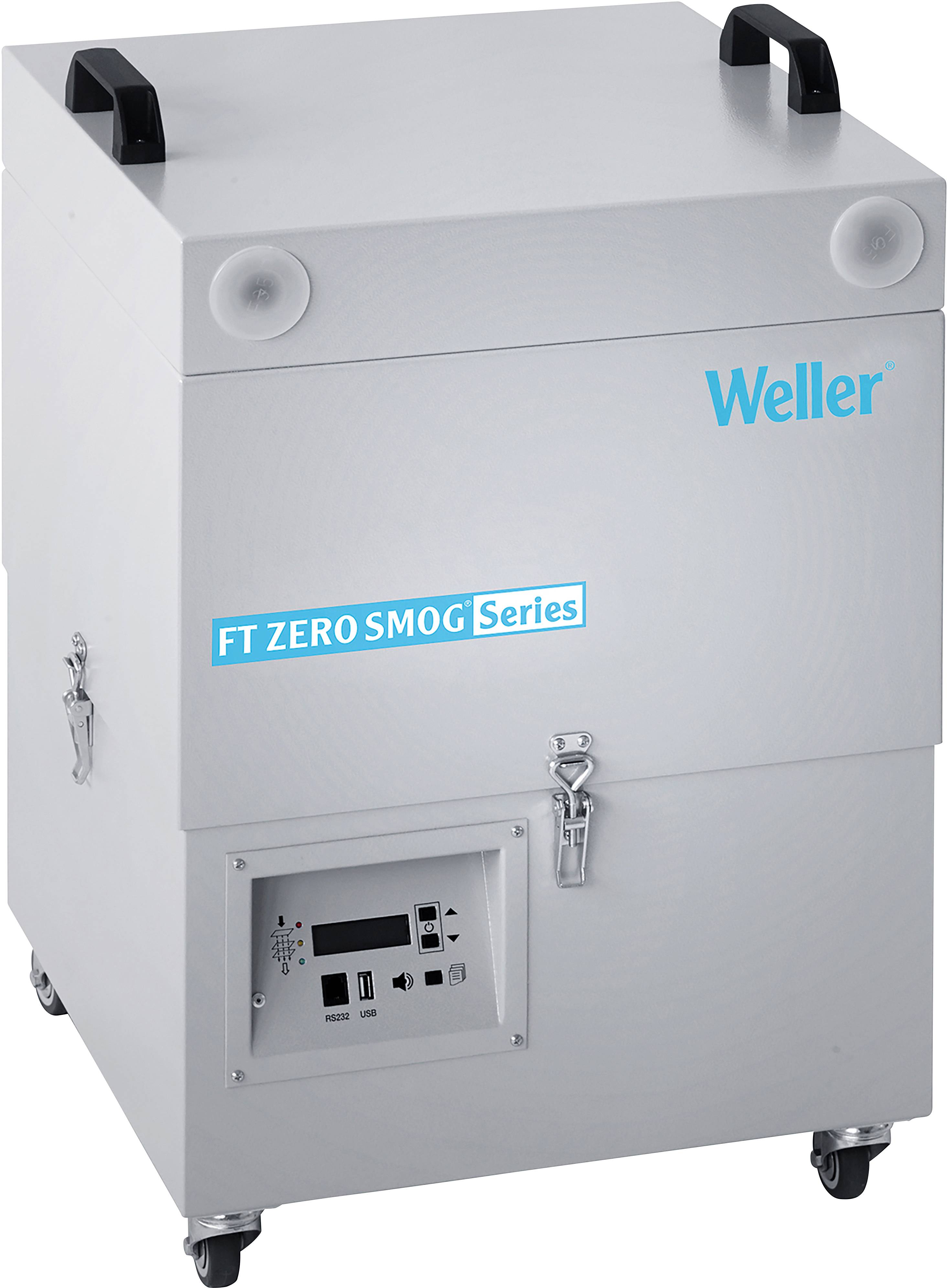

Weller Zero Smog 20T Soldering fume extractor 230 V 530 VA
EAN:
Part number:
Item no:
Number
Total (€ 4,995.80 / piece)
€ 4,995.80
plus VAT.
14-day return policy included
Highlights & Details
Weller Zero Smog 20T Soldering fume extractor 230 V 530 VA
- For connecting up to 20 soldering irons
- Electronically controlled, maintenance-free turbine generates required vacuum
- 4 integrated rollers for increased unit flexibility
- Mobile device for centralized or decentralized use
- Use with a pipe system up to 200 m (7874 in)
Technical specifications
- Max. Capacity: 1-20 jobs
- Applications: Hand soldering
- Product type
Soldering fume extractor
- Max. power
530 VA
- Operating voltage
230 V
- Max. noise generation
51 dBa
- Dim
(L x W x H) 450 x 450 x 695 mm
- Type
Zero Smog 20T fume extractor
- Weight
45 kg
- Features
Antistatic
- Width
450 mm
- Height
695 mm
- Length
450 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2177668 Weller Zero Smog 20T Soldering fume extractor 230 V 530 VA
Description

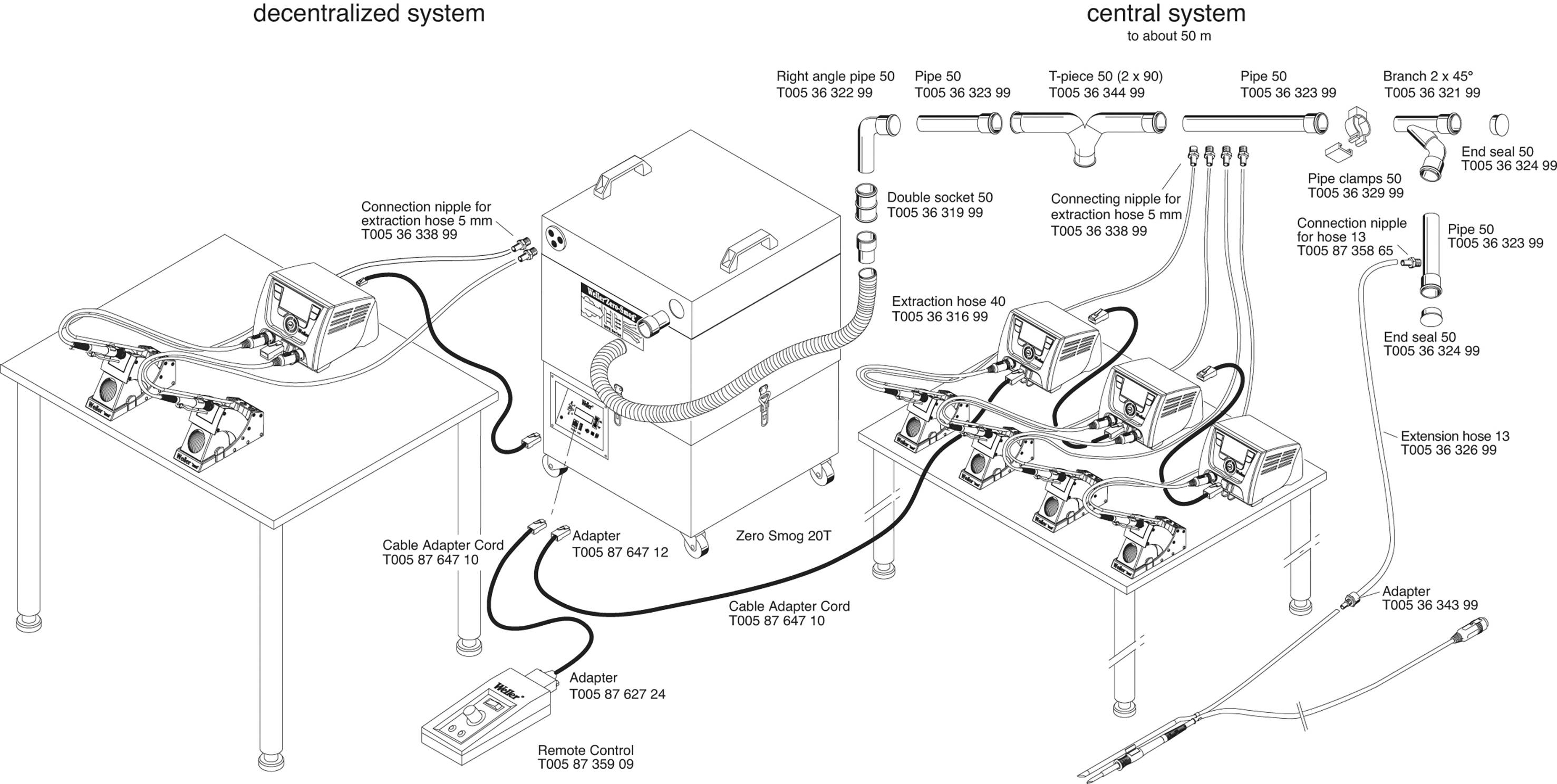

The Zero Smog 20T is designed for direct suction on the soldering iron. Up to 6 Weller FE soldering irons can be connected directly. Indirect, via the pipe system 50 available as an accessory, up to 20 FE soldering irons. The powerful, maintenance-free turbine generates a vacuum of max. 10,000 Pa and is electronically controlled. The operating hours and level of filter contamination are also recorded electronically. The filter system achieves a separation degree of 99, 95 % according to EN 1822 with a particle size of 0, 16 μ m.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Fine dust filter F7 (T0058735836), compact filter (T0058735838)
