Name: Wieland Electric 96.032.0053.1 Plug Connector With Screw Connection, Series Gesis IP+ RST 20i3 Pins: 3
Brand: Wieland Electric
SKU: 749024
Price: 7.49 EUR
Availability: InStock

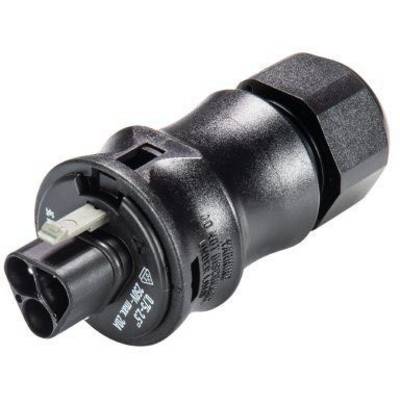

A black and grey connecting plug with two slots and a locking mechanism, designed with a technical and industrial aesthetic.

Product type

Bullet connector

Connector type

Plug, straight

Total no. of pins

Connection

Spring-loaded contacts

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

76 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Wieland Electric 96.032.0053.1 Plug Connector With Screw Connection, Series Gesis IP+ RST 20i3 Pins: 3

IP 65 - IP 68

Our service for you

Technical specifications

Standards: DIN VDE 0606 T200
DIN EN 61984 (VDE 0627)
Complies with VDE 0110, IEC 60999, UL 2238.
CSA: C22.2 No.182.2-M1987

Type: 96.032.0053.1

Product type: Bullet connector

Connector type: Plug, straight

Total no. of pins: 3

Connection: Spring-loaded contacts

Factory colour: Black

Content: 1 pc(s)

Max. temperature: +100 °C

Nominal current: 20 A

Min. temperature: 40 °C

Nominal current - rounded value: 20 A

Nominal voltage: 250 V

Cable Ø (max.): 1.5 mm

Cable Ø up to: 0.5 mm

Case material: Thermoplastic

Connection angle: 180°

Manufacturer part #: 96.032.0053.1

Cable Ø range: 0.5 - 1.5 mm

Number of pins: 3

max. cross section: 2.5 mm²

Cross-section range: 2.5 mm² (max)

RoHS-compliant: Yes

: Protection class II

Material (details): Contact parts: brass · Housing: thermoplastic plastic PA 66

Type: Connector

Ambient temperature: -40 - +100 °C

Cross section: 0.5 - 1.5 (2.5) rigid/flexible

Pins: 3

Connection: Spring

Cable diameter (details): 6-10 mm

Temperature range: -40 - +100 °C

Operating voltage: 250 V

Documents & Downloads

Datasheet

Datasheet 749024 Wieland Electric 96.032.0053.1 Plug Connector With Screw Connection, Series Gesis IP+ RST 20i3 Pins: 3

Description

Minimum installation work required, with few individual parts. Simple, secure connection. All parts are re-usable. Considerable time and cost savings. Complete installation system Consumers can be connected quickly and securely with each other, without error and in difficult conditions. Possible applications include: underground parking / parking garages, industrial buildings, outdoors, construction sites, light advertising, temporary installations (suchas. christmas or fixed tent lighting).
