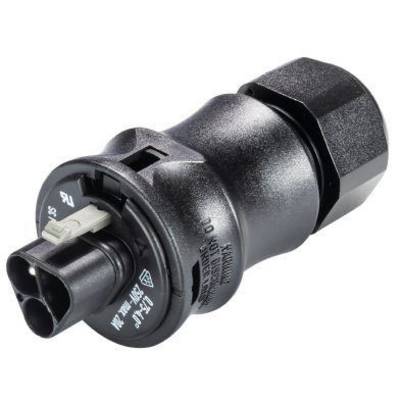

Wieland Electric 96.032.0153.1 Plug Connector With Screw Connection, Series Gesis IP+ RST 20i3 Pins: 3
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
3
Connection
Spring-loaded contacts
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
Wieland Electric 96.032.0153.1 Plug Connector With Screw Connection, Series Gesis IP+ RST 20i3 Pins: 3
- IP 65 - IP 68
Our service for you
Technical specifications
- Standards: DIN VDE 0606 T200
- DIN EN 61984 (VDE 0627)
- Complies with VDE 0110, IEC 60999, UL 2238.
- CSA: C22.2 No.182.2-M1987
- Type
96.032.0153.1
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
3
- Connection
Spring-loaded contacts
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+100 °C
- Nominal current
20 A
- Min. temperature
40 °C
- Nominal current - rounded value
20 A
- Nominal voltage
250 V
- Cable Ø (max.)
1.5 mm
- Cable Ø up to
0.5 mm
- Case material
Thermoplastic
- Connection angle
180°
- Manufacturer part #
96.032.0153.1
- Cable Ø range
0.5 - 1.5 mm
- Number of pins
3
- max. cross section
2.5 mm²
- Cross-section range
2.5 mm² (max)
- RoHS-compliant
Yes
Protection class II
- Material (details)
Contact parts: brass · Housing: thermoplastic plastic PA 66
- Type
Connector
- Ambient temperature
-40 - +100 °C
- Cross section
0.5 - 1.5 (2.5) rigid / flexible
- Pins
3
- Connection
Spring
- Cable diameter (details)
10-14 mm
- Temperature range
-40 - +100 °C
- Operating voltage
250 V
Documents & Downloads
Datasheet
Datasheet 749036 Wieland Electric 96.032.0153.1 Plug Connector With Screw Connection, Series Gesis IP+ RST 20i3 Pins: 3
Description
Minimum installation work required, with few individual parts. Simple, secure connection. All parts are re-usable. Considerable time and cost savings. Complete installation system Consumers can be connected quickly and securely with each other, without error and in difficult conditions. Possible applications include: underground parking / parking garages, industrial buildings, outdoors, construction sites, light advertising, temporary installations (suchas. christmas or fixed tent lighting).
