Wiska 10063226 MMU-EMV 42 Locknut shockproof PG42 Metal Ecru 50 pc(s)

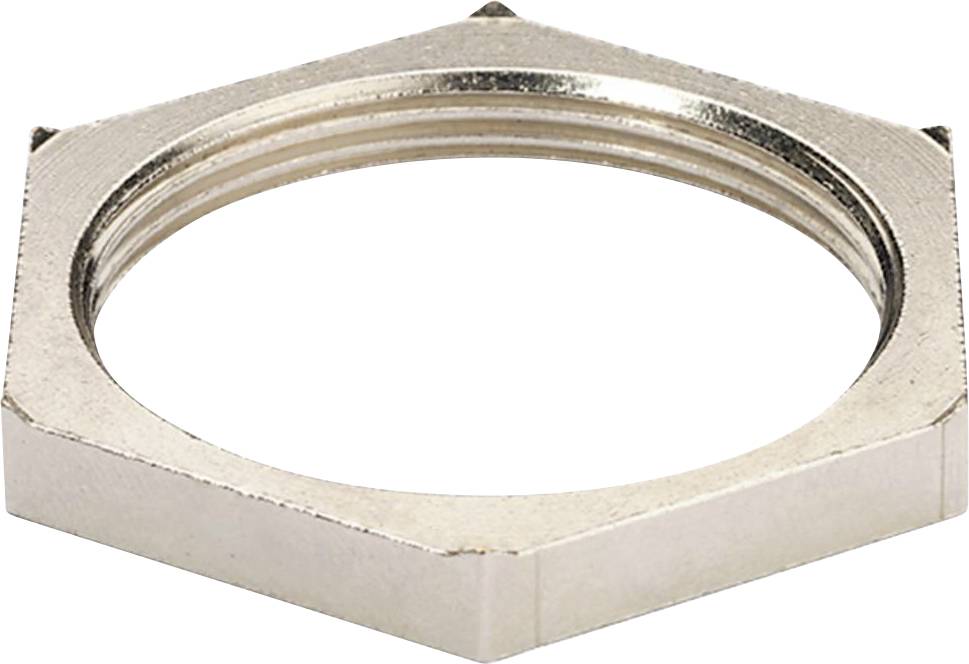

Metal hexagonal nut with thread, viewed from above.
Technical drawing of a cutting tool with the label 'SW/E'. Dimensions 'T' and 'D' are specified.
1/2
Product type
Locknut
Size
PG42
Material
Metal
Features
shockproof
Factory colour
Ecru
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 9.30 / piece)
€ 465.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

EMC brass locknut PG42

Our service for you

Technical specifications

  • Thread pitch 1.588 mm
  • Material quality: Brass
  • With ground connection: Yes
Product type

Locknut

Features

shockproof

Factory colour

Ecru

Size

PG42

Material

Metal

Type

hexagonal, nickel-plated

Halogen-free

Yes

Content

50 pc(s)

RoHS-compliant

Yes

Manufacturer part #

10063226

Type

MMU-EMV 42

Documents & Downloads

Datasheet

Datasheet 2478775 Wiska 10063226 MMU-EMV 42 Locknut shockproof PG42 Metal Ecru 50 pc(s)

User & Safety Instructions

User & Safety Instructions 2478775 Wiska 10063226 MMU-EMV 42 Locknut shockproof PG42 Metal Ecru 50 pc(s)

Description

For cutting through paint layers or powder coatings for optimum contact during equipotential bonding.
