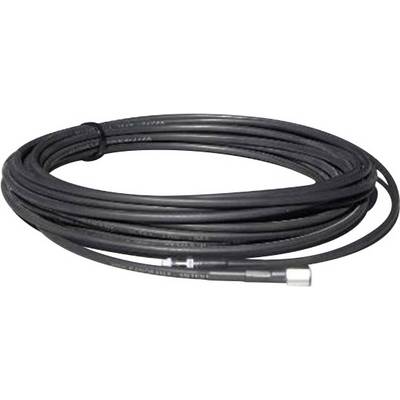

Wittenberg Antennen 10 m Antenna cable FME plug, FME socket 103076
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 50.41
-45 %
€ 27.72
plus VAT.
Technical specifications
- Attenuation values per 100m: 50 MHz 6,5dB; 100 MHz 9,3dB; 230 MHz 14.1 dB; 300 MHz 16.3 dB; 470 MHz 16.9 dB; 600 MHz 18.2 dB; 1000 MHz 30.9 dB; 1350 MHz 35.9 dB; 2150 MHz 46.9 dB
- Product type
Antenna cable
- Version
Cable extension
- Connections
FME plug
FME socket
- Factory colour
Black
- Cable length
10 m
- Shielding
Braid shielding/shielding film
- Cable features
suitable for outdoor use
- Cable design
Round
Copper
Documents & Downloads
Datasheet
Datasheet 1302484 Wittenberg Antennen 10 m Antenna cable FME plug, FME socket 103076
User & Safety Instructions
User & Safety Instructions 1302484 Wittenberg Antennen 10 m Antenna cable FME plug, FME socket 103076
Description
Features
- Extension cable, FME-plug to FME-socket
- Inner conductor as well as outer Braid made of copper/insulation
- Aluminum foil + FOAM FOAM
- Outer sheath PVC (outdoors)
- Impedance 50 Ohm +/- 2
- Outside diameter 5.4 mm
- Temperature range -40°C to +80°C
- Weight approx. 48.4 kg/km
- Capacity 82 pF/m at 1 kHz
- This text is machine translated.
Scope of delivery
- Wittenberg Antennas LTE/GSM/UMTS cable FME-plug to FME-socket 10 m
