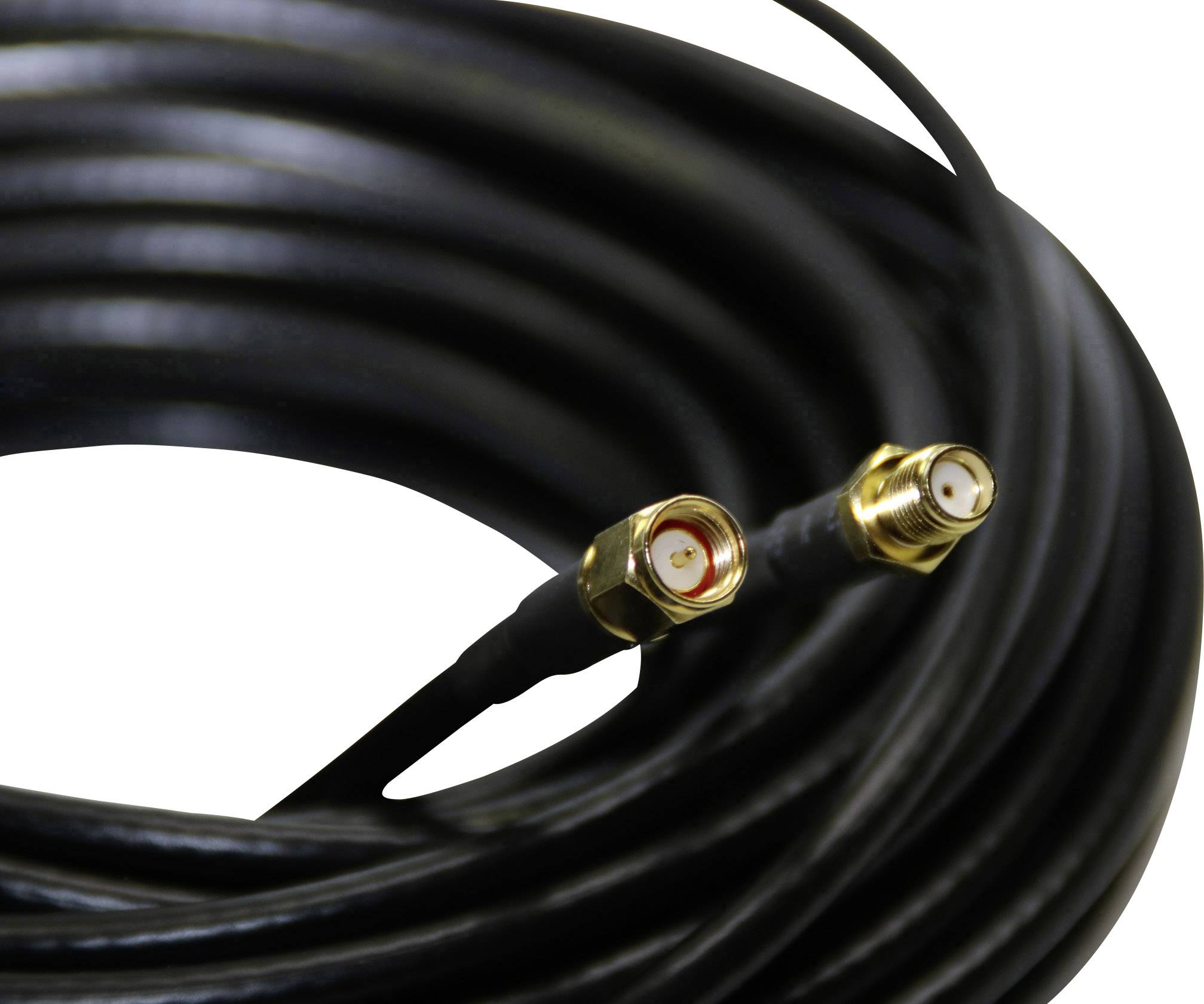

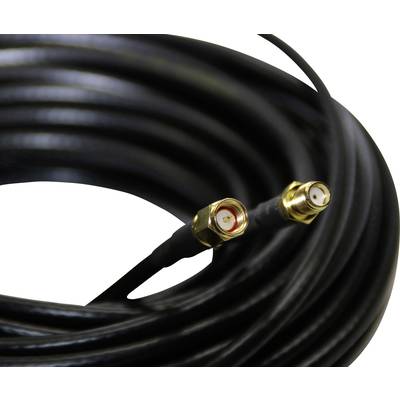

Wittenberg Antennen 5 m Antenna cable SMA socket, SMA plug P-102917
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
Wittenberg Antennas LTE/GSM/UMTS cable SMA plug to SMA connector 5 m
- Connection cable SMA bush to SMA plug
- Inner wire as well as outer braid made of copper
- Outer sheath PCV, suitable for outdoor areas
- Impedance: 50 ohm
- Diameter outer 5.4 mm
- Length 5 m
Technical specifications
- Attenuation values per 100m: 50 MHz 6,5dB; 100 MHz 9,3dB; 230 MHz 14.1 dB; 300 MHz 16.3 dB; 470 MHz 16.9 dB; 600 MHz 18.2 dB; 1000 MHz 30.9 dB; 1350 MHz 35.9 dB; 2150 MHz 46.9 dB
- Product type
Antenna cable
- Version
Connection cable
- Connections
SMA socket
SMA plug
- Factory colour
Black
- Cable length
5 m
- Shielding
Braid shielding/shielding film
- Cable features
suitable for outdoor use
- Cable design
Round
Copper
Documents & Downloads
Datasheet
Datasheet 1880025 Wittenberg Antennen 5 m Antenna cable SMA socket, SMA plug P-102917
User & Safety Instructions
User & Safety Instructions 1880025 Wittenberg Antennen 5 m Antenna cable SMA socket, SMA plug P-102917
Description
High-quality antenna connection cable, 5 m long, for indoors and outdoors. Suitable for LTE/GSM/UMTS antennas.
This text is machine translated.
This text is machine translated.
Features
- Connection cable SMA BUSH ON SMA plug
- Inner conductor as well as outer Braid made of copper/insulation
- Aluminum foil + FOAM FOAM
- Outer sheath PVC (outdoors)
- Impedance 50 Ohm +/- 2
- Outside diameter 5.4 mm
- Temperature range -40°C to +80°C
- Weight approx. 48.4 kg/km
- Capacity 82 pF/m at 1 kHz
- This text is machine translated.
Scope of delivery
- Wittenberg Antennas LTE/GSM/UMTS cable SMA plug to SMA connector 5 m
