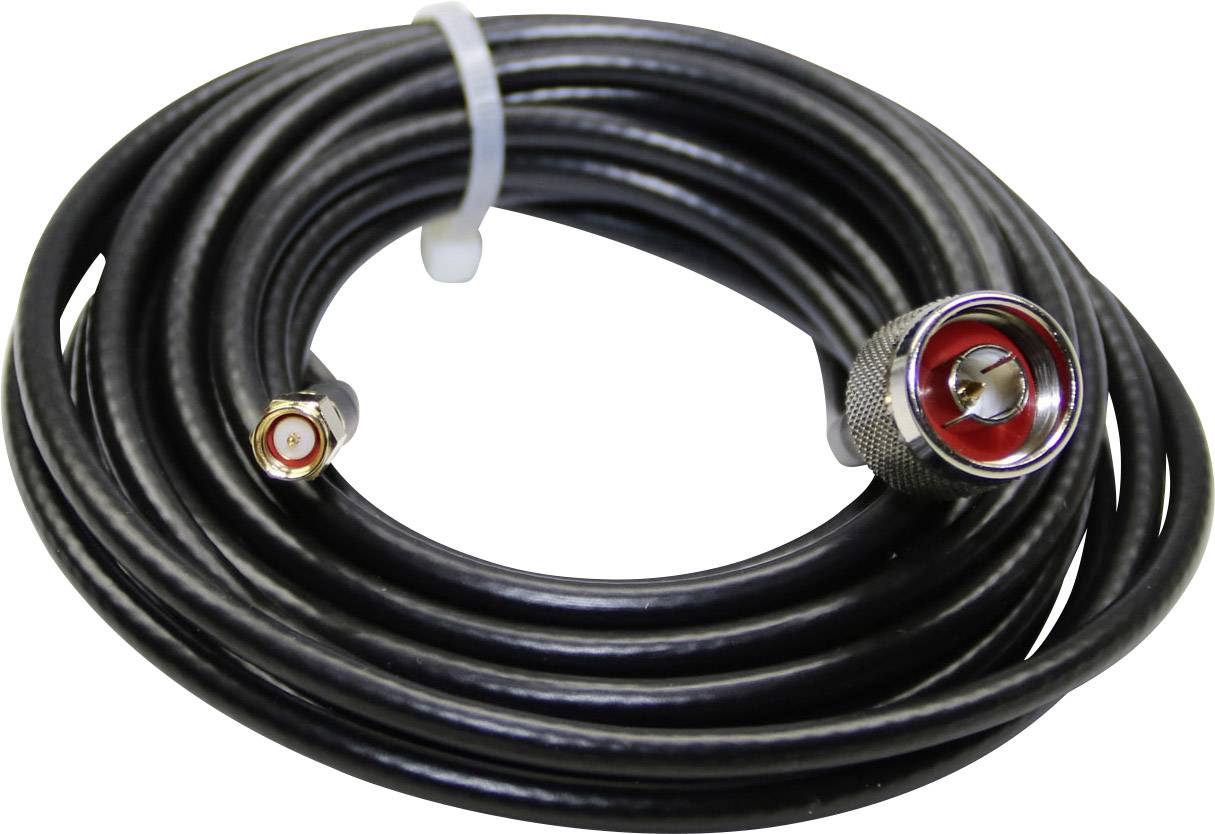

Wittenberg Antennen 10 m Antenna cable N plug, SMA plug P-103237
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Attenuation values per 100 m: 50MHz 6.5dB; 100MHz 9.3dB; 230MHz 14.1dB; 300MHz 16.3dB; 470MHz 16.9dB; 600MHz 18.2dB; 1000MHz 30.9dB; 1350MHz 35.9dB; 2150MHz 46.9dB
- Product type
Antenna cable
- Version
Connection cable
- Connections
N plug
SMA plug
- Factory colour
Black
- Cable length
10 m
- Shielding
Braid shielding/shielding film
- Cable features
suitable for outdoor use
- Cable design
Round
Copper
- Connection type
Antenna
- Cable length
10 m
Documents & Downloads
Datasheet
Datasheet 1880029 Wittenberg Antennen 10 m Antenna cable N plug, SMA plug P-103237
User & Safety Instructions
User & Safety Instructions 1880029 Wittenberg Antennen 10 m Antenna cable N plug, SMA plug P-103237
Description
Features
- Connection cable N-plug to SMA plug
- Inner wire as well as outer braid of copper / insulation
- Aluminum foil + foam FOAM
- Outer sheath PCV (suitable for outdoor areas)
- Impedance 50 Ohm +/- 2
- Outside diameter 5.4 mm
- Temperature range -40°C to +80°C.
- Weight approx. 48.4kg/km
- Capacity 82pF/m at 1kHz
- This text is machine translated.
Scope of delivery
- Wittenberg Antennas LTE/GSM/UMTS Cable N-Plug to SMA-Plug 10 m
