Buy Wolfgang Warmbier PGT ® 120 ESD tester set PG incl. floor plate, incl. calibration certificate

Diagnostic device with foot sensors and control unit. The user interface displays buttons for start, stop, and selection functions.

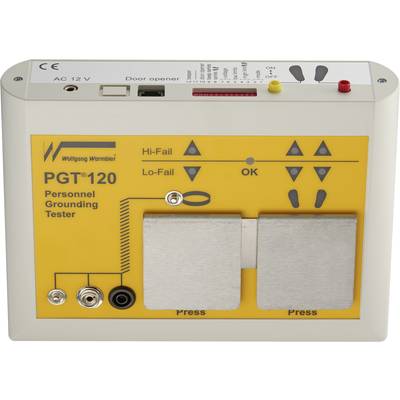

The image shows a 'PGT®120' tester for personal earthing with a yellow control panel and readable indicators for 'Hi-Fail', 'Lo-Fail' and 'OK'.

Electronic bathroom scales with a grey platform and two footprints indicating the positioning of the feet.

1/3

Datasheet (PDF)

30 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 646.22 / piece)

€

Report legal concerns

Highlights & Details

Personnel Grou Thing Tester PGT ® 120

Separate examination of the left and right shoe
Can be switched off lower limit values
Test voltages 30 V, 50 V or 100 V (default setting)
Limit values can be set via dip switches
Can be used as table or wall device

Technical specifications

LED display

Product type: ESD tester set

Type: PGT ® 120

Method(s) of measurement: PG

Features: incl. floor plate
incl. calibration certificate

Operating voltage: 9 V DC
230 V AC

Width: 200 mm

Height: 65 mm

Length: 150 mm

Dim: (L x W x H) 150 x 200 x 65 mm

Range of use: ESD

Documents & Downloads

Datasheet

Datasheet 1337383 Wolfgang Warmbier PGT ® 120 ESD tester set PG incl. floor plate, incl. calibration certificate

User & Safety Instructions

User & Safety Instructions 1337383 Wolfgang Warmbier PGT ® 120 ESD tester set PG incl. floor plate, incl. calibration certificate

Conformity certificate

Conformity certificate 1337383 Wolfgang Warmbier PGT ® 120 ESD tester set PG incl. floor plate, incl. calibration certificate

Description

The Personnel Grou Thing Tester PGT ® 120 controls the persons leakage resistance for wrist grounding and footwear grounding for access control of electrostatic protected areas (EPA's). The test result is visually and acoustically signalled. An additional potential free contact allows the connection of a door opener. Power supply is effected via a built-in battery or a plug-in power supply. Testing of wrist grounding, left and right shoe is due to separate the measuring circuits is possible at the same time. In connection with persons separation systems (e.g. hubs), the footwear measurement as "series connection without pressing on the touch panel can be carried out (hands-free mode).
