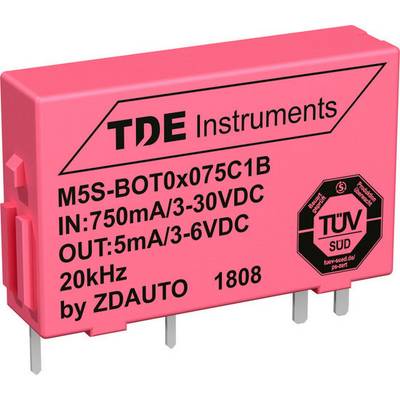

ZDAuto BOT05750D1 I/O module 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Highlights & Details
ZDAuto M5S BOT05750D1b Digital output 0-5 kHz Source external 5 V/DC internal
- I/O module for PCB mounting
- Digital output
- 5V internal 0-5kHz source isolated
Technical specifications
- Connection: Soldering pins
- Switching voltage (max.) 30 V/DC
- Switching current (max.) 750 mA
- Supply voltage 5 V/DC
- Internal signal 0 - 5 kHz
- External signal: 0 - 5 kHz source
- Dim. (L x W x H) 20 x 5 x 12.7 mm
- Product type
I/O module
- Tool type
I/O module
- Content
1 pc(s)
- Interfaces
Soldering
Documents & Downloads
Datasheet
Datasheet 2108004 ZDAuto BOT05750D1 I/O module 1 pc(s)
Datasheet 2108004 ZDAuto BOT05750D1 I/O module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2108004 ZDAuto BOT05750D1 I/O module 1 pc(s)
Description
M5S modular I/O modules for PCB mounting
modular interface modules with integrated circuits for versatile use in industrial plants, such as controllers or programmable logic controllers.
The
modules serve as a link between the electronics on one side and the industrial signaling world on the other. The modules are fully sealed, waterproof, fire-proof and dust-proof.
Universal connection scheme for full flexibility
thanks to the universal connection scheme, all M5S modules can be replaced without having to change the internal or external interconnection. This allows all possible applications to be covered with a universal circuit, customer-specific input and output configurations to be implemented by plugging in the corresponding modules and even further functions to be added to the devices already used in the field.
This text is machine translated.
modular interface modules with integrated circuits for versatile use in industrial plants, such as controllers or programmable logic controllers.
The
modules serve as a link between the electronics on one side and the industrial signaling world on the other. The modules are fully sealed, waterproof, fire-proof and dust-proof.
Universal connection scheme for full flexibility
thanks to the universal connection scheme, all M5S modules can be replaced without having to change the internal or external interconnection. This allows all possible applications to be covered with a universal circuit, customer-specific input and output configurations to be implemented by plugging in the corresponding modules and even further functions to be added to the devices already used in the field.
This text is machine translated.
