Name: Zettler Electronics AZ2501P2-1C-12DK PCB relay 12 V DC 50 A 1 change-over 1 pc(s)
Brand: Zettler Electronics
SKU: 507759
Availability: InStock

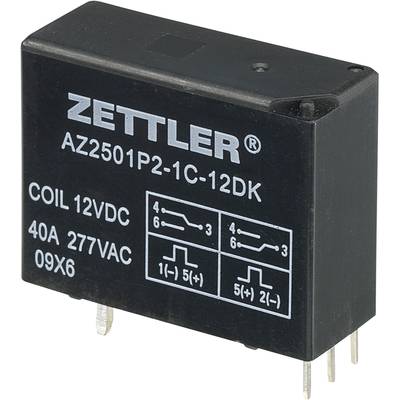

Black relay with the inscription 'Zettler AZ2501P2-1C-12DK', rated values 12V DC coil, 40A 277V AC. Four circuit diagrams are shown.

Electrical Diagram: Housing Dimensions in Inches and mm. Overall Width: 1.547 inches (39.3 mm), Height: 0.118 inches (3.0 mm), Depth: 0.205 inches (5.2 mm).

Technical drawing of an electrical component, showing relevant dimensions: max. height 1.201 inches [30.5 mm], max. width 0.601 inches [15.3 mm].

Technical drawing of a component with precise dimensional specifications in inches and millimetres. The drawing depicts holes and interfaces.

Schematic of an electrical component with dimensional specifications in inches and millimetres. Connections and specific terminals are described.

Circuit Diagram: A switch connects nodes 4, 6 at the top and 3 on the right side with a central distributor below, marked with 1, 5 and 2.

1/6

Product type

PCB relay

Coil nominal voltage

12 V DC

Control mode

bi-stable, 2 coil

Contact type

1 change-over

Switching voltage (max.)

440 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

368 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Bi-stable high-power relay

For use in the climate technology, light controls or UPS systems
For solar applications (photovoltaic systems, solar inverter) or wind generators
To switch from high loads

Our service for you

Technical specifications

Product type: PCB relay

Type: AZ2501P2-1C-12DK

Coil nominal voltage: 12 V DC

Min. pick-up voltage: 9.6 V DC

Max. pick-up voltage: 15.6 V DC

Control mode: bi-stable, 2 coil

Resistance (coil): 48 Ω

Contact type: 1 change-over

Contact material: AgSnO

Switching voltage (max.): 440 V AC

Switching current (max.): 50 A

Max. switching capacity: 13850 VA

Connection: Solder pins

Insulation voltage: 1500 V

Min. temperature: -40 °C

Max. temperature: +70 °C

Length: 39.3 mm

Width: 15.3 mm

Height: 30.5 mm

Dim: (L x W x H) 39.3 x 15.3 x 30.5 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 507759 Zettler Electronics AZ2501P2-1C-12DK PCB relay 12 V DC 50 A 1 change-over 1 pc(s)

User & Safety Instructions

User & Safety Instructions 507759 Zettler Electronics AZ2501P2-1C-12DK PCB relay 12 V DC 50 A 1 change-over 1 pc(s)

Certificate

Certificate 507759 Zettler Electronics AZ2501P2-1C-12DK PCB relay 12 V DC 50 A 1 change-over 1 pc(s)

Description

Developed for solar inverter, air-conditioning systems, lighting controls, UPS systems, power amplifiers as well as all applications, where high loads to be switched.
