Zettler Electronics AZ850-5 PCB relay 5 V DC 1 A 2 change-overs 1 pc(s)

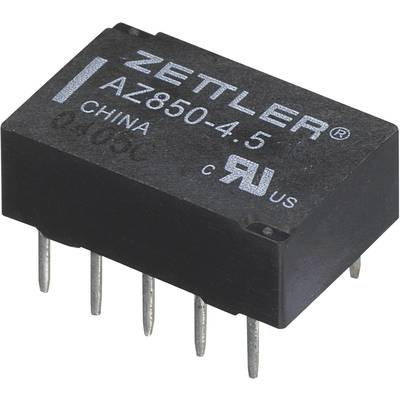

A black electronic component with the inscription 'Zettler AZ850-4.5'. Several metal pins protrude.
A technical diagram shows the dimensions of an electronic component with four terminals: width 14 mm, height 5 mm, pin spacing 2.54 mm.
Dimensional drawing of an electronic component with length and width specifications: Width .354 inches (9.00 mm), Height .300 inches (7.63 mm).
'Diagram shows circuit diagrams for two types of relay: unilaterally stable and bistable (two coils). Illustrates deactivation and reset conditions with polarity indications.'

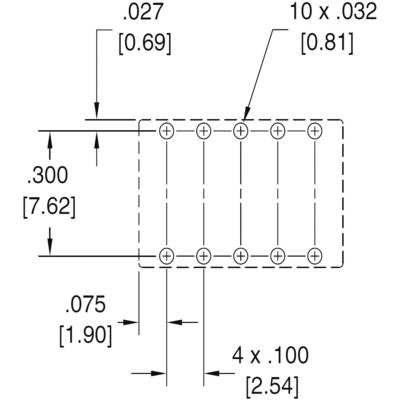

Technical drawing of a rectangular layout with dimensional annotations in inches and millimetres. Contains dimensions .027, .032, .300, .075 inches and hole measurements.
1/5
Image similar
Product type
PCB relay
Coil nominal voltage
5 V DC
Control mode
monostable, 1 coil
Contact type
2 change-overs
Switching voltage (max.)
220 V DC
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
45 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.49 / piece)
€ 2.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Polarized miniature relay

Our service for you

Technical specifications

Product type

PCB relay

Type

AZ850-5

Coil nominal voltage

5 V DC

Min. pick-up voltage

3.8 V DC

Max. pick-up voltage

12.5 V DC

Control mode

monostable, 1 coil

Resistance (coil)

178 Ω

Contact type

2 change-overs

Contact material

AgPd alloy, gold plated

Switching voltage (max.)

220 V DC

250 V AC

Switching current (max.)

1 A

Max. switching capacity

30 W

62.5 VA

Connection

Solder pins

Insulation voltage

1000 V

Min. temperature

-40 °C

Max. temperature

+70 °C

Length

14 mm

Width

9 mm

Height

5 mm

Dim

(L x W x H) 14 x 9 x 5 mm

Content

1 pc(s)

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 507434 Zettler Electronics AZ850-5 PCB relay 5 V DC 1 A 2 change-overs 1 pc(s)

User & Safety Instructions

User & Safety Instructions 507434 Zettler Electronics AZ850-5 PCB relay 5 V DC 1 A 2 change-overs 1 pc(s)

Description

Miniature relay with the dimensions 14 x 9 x 5 mm. DIP-layout - suitable for 10-pin IC bases.
