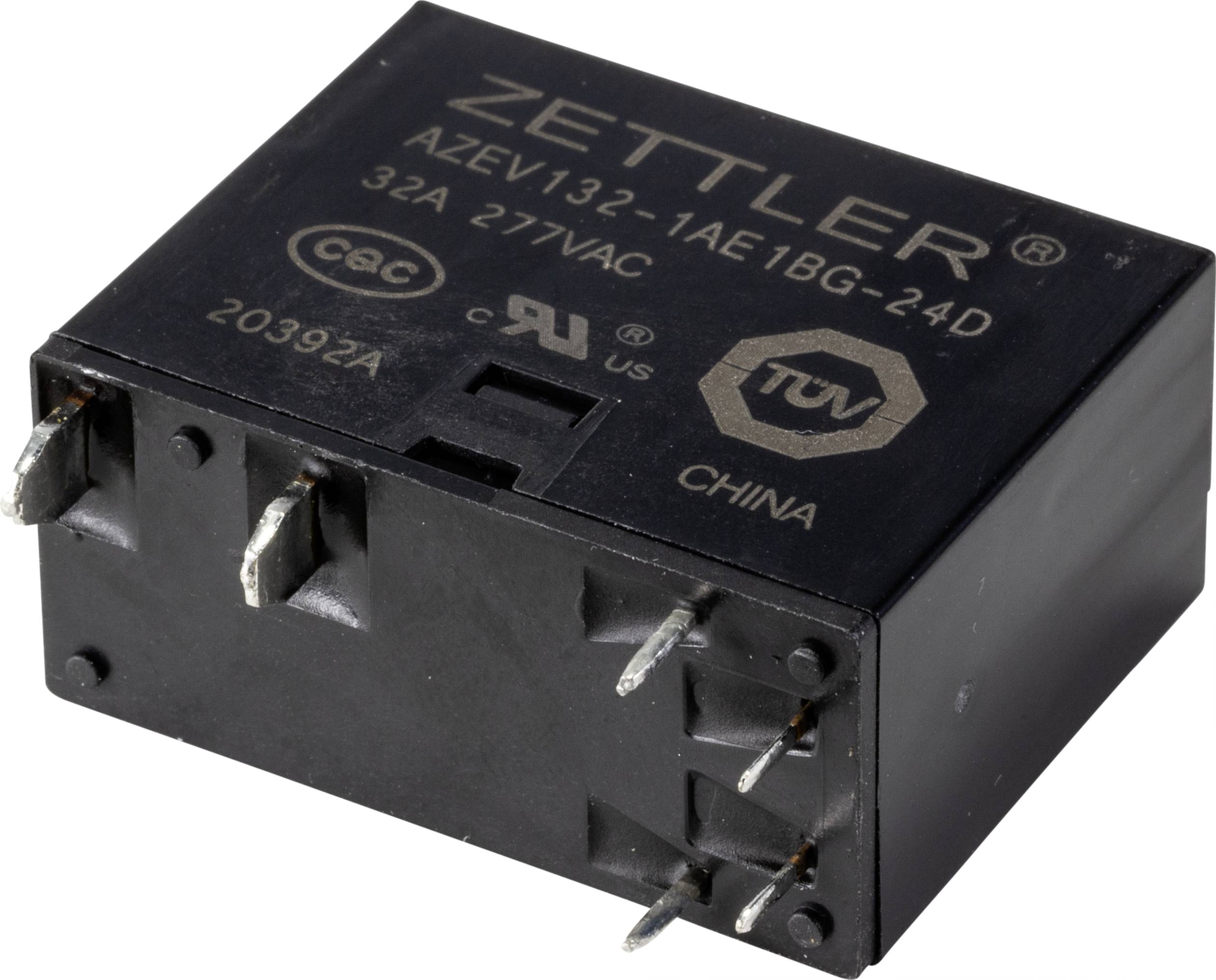

Zettler Electronics AZEV132-1AE1BG-24D Power relay 24 V DC 32 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Power relay
Coil nominal voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
277 V AC
Switching current (max.)
32 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Highlights & Details
Zettler 32 A relay, 24 V
Our service for you
Technical specifications
- Product type
Power relay
- Type
AZEV132-1AE1BG-24D
- Coil nominal voltage
24 V DC
- Min. pick-up voltage
8.4 V DC
- Max. pick-up voltage
28.8 V DC
- Resistance (coil)
372 Ω
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
277 V AC
- Switching current (max.)
32 A
- Max. switching capacity
12800 VA
- Connection
Pins
- Insulation voltage
277 V AC
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Weight
35 g
- Factory colour
Black
- Length
35 mm
- Width
16 mm
- Height
27.9 mm
- Dim
(L x W x H) 35 x 16 x 27.9 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
