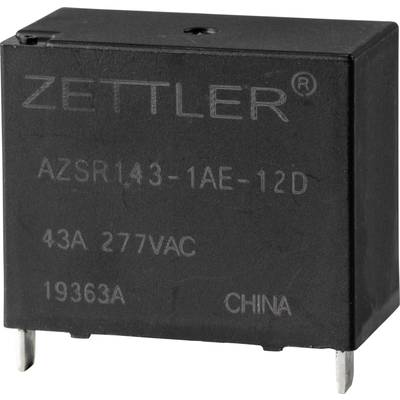

Zettler Electronics AZSR143-1AE-12D Power relay 12 V DC 50 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Power relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Switching voltage (max.)
277 V AC
Switching current (max.)
50 A
Datasheet (PDF)
477 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€
Technical specifications
- Product type
Power relay
- Type
AZSR143-1AE-12D
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
4.2 V DC
- Max. pick-up voltage
14.4 V DC
- Resistance (coil)
90 Ω
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
277 V AC
- Switching current (max.)
50 A
- Max. switching capacity
13850 VA
- Connection
Pins
- Insulation voltage
277 V AC
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Weight
25 g
- Factory colour
Black
- Length
35 mm
- Width
16 mm
- Height
27.9 mm
- Dim
(L x W x H) 35 x 16 x 27.9 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
