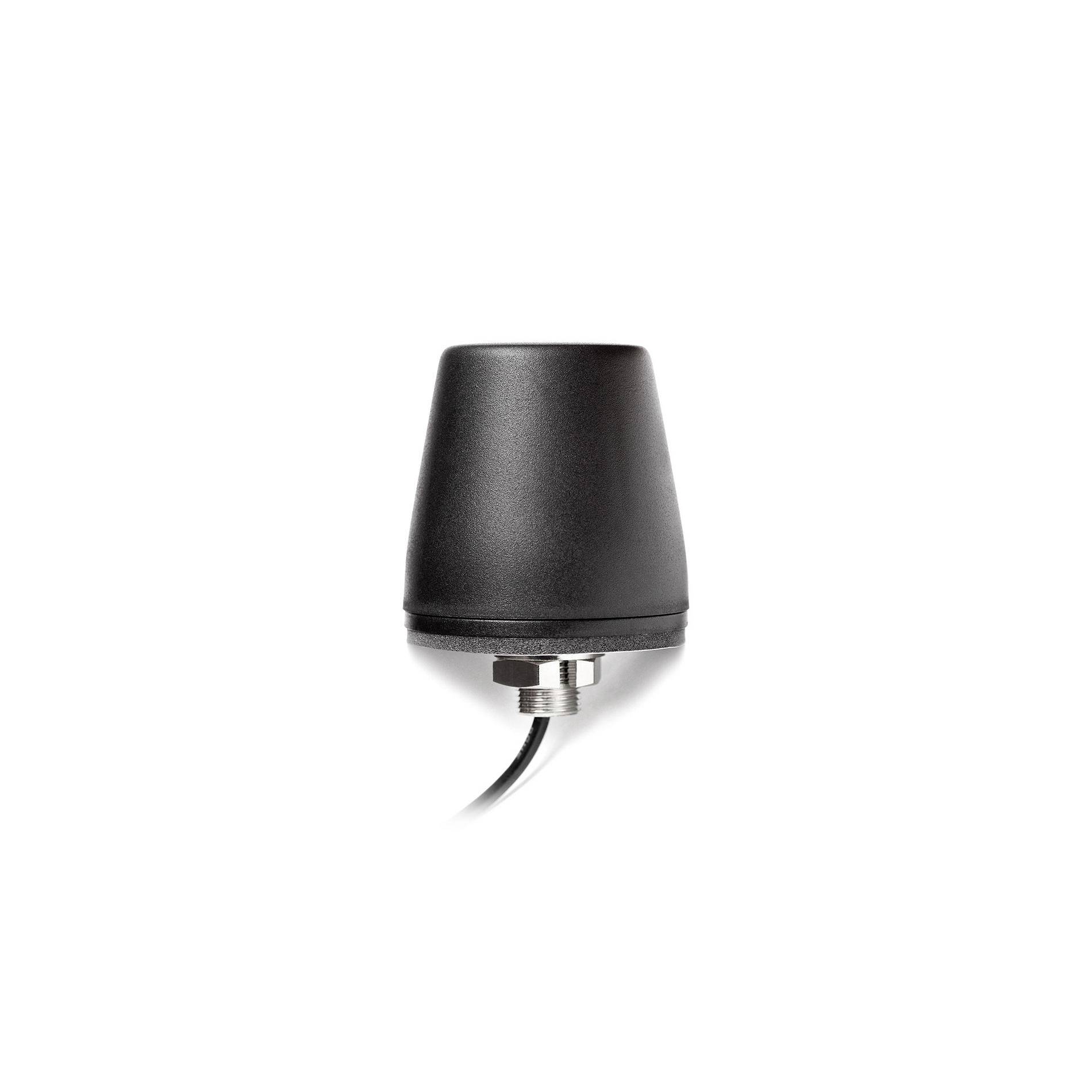

2J 2J7683B-300LL100-C20GST SI302100724 LTE antenna 2.90 dB
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 12.99 / piece)
€ 12.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Polarization: Linear
- Connector type: SMA Male
- Cable type: LL100
- Frequency: 617-960MHz|1427-2690MHz|3300-5000MHz|5150-5925MHz
- Note: IP67, IP69
- Series: 2J683
- Mounting: Screw Mount
- Technology: 2G (GSM)|3G (UMTS)|4G (LTE)
- Single / Combination: Single
- Internal / External: External
- Product type
LTE antenna
- Gain
2.90 dB
- Antenna socket
SMA plug
- Polarisation
Linear
- Width
50.00 mm
- Height
50.80 mm
- Length
50.00 mm
- Cable length
3.00 m
- Engineering Series Name
2J683
- Impedance
50 Ω
- Radio frequency
617-960MHz|1427-2690MHz|3300-5000MHz|5150-5925 MHz
- Fitting type (details)
Screw Mount
Documents & Downloads
Datasheet
Datasheet 3829637 2J 2J7683B-300LL100-C20GST SI302100724 LTE antenna 2.90 dB
User & Safety Instructions
User & Safety Instructions 3829637 2J 2J7683B-300LL100-C20GST SI302100724 LTE antenna 2.90 dB
Description
2J7683B-300LL100-C20GST ;5GNR/4G/3G/2G "Mini-Shaker" Antenna LL100 3m SMA M Au + Shrink Tube
Hints
IP67, IP69
