3M 314 Connector flexible: 0.5-1.5 mm² fixed: 0.5-1.5 mm² Number of pins: 3 50 pc(s) Blue
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Cross section (flexible) (min.)
0.5 mm²
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (min.)
0.5 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 35.29 / piece)
€ 35.29
plus VAT.

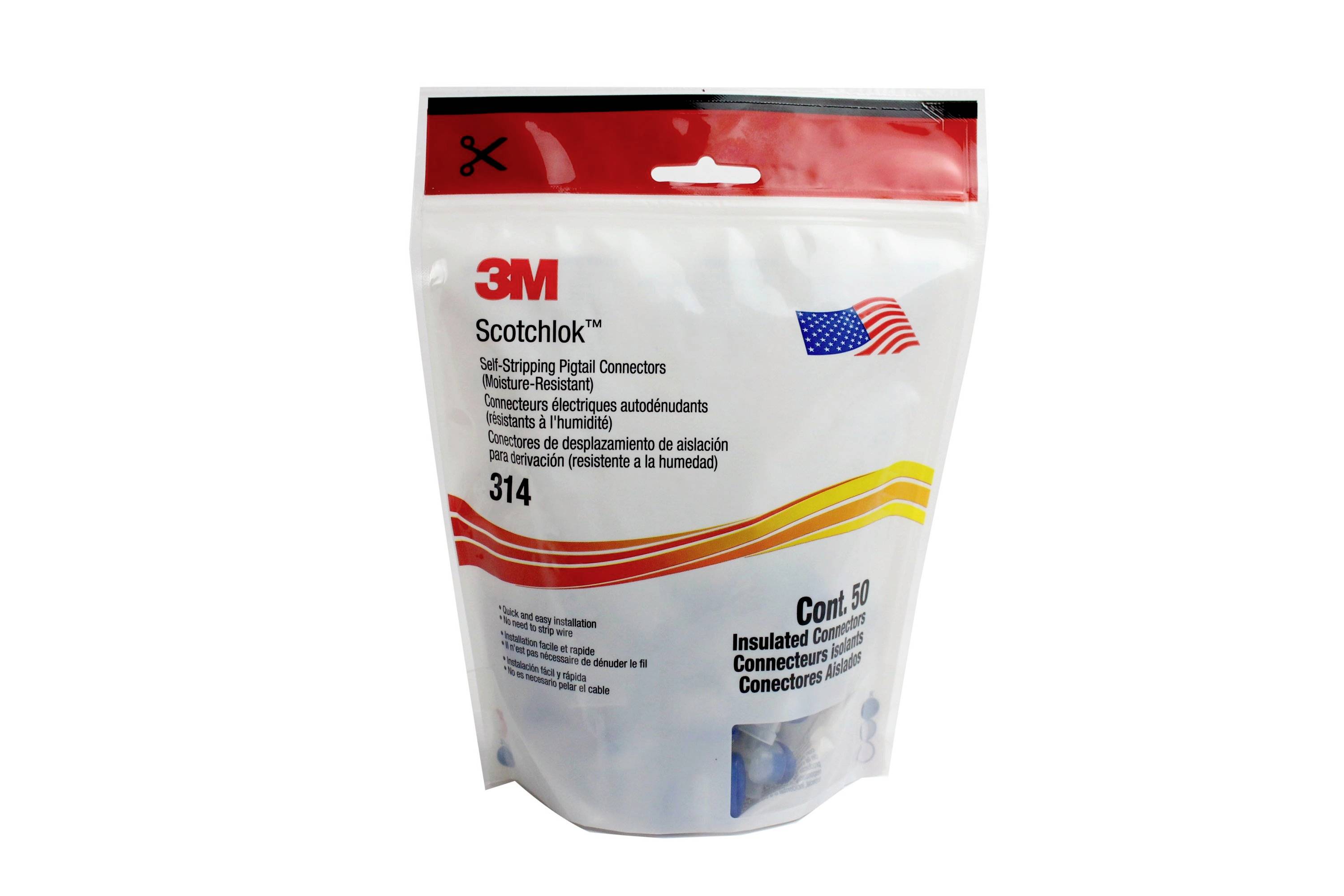

3M™ Scotchlok™ 314 connector, moisture resistant, flame resistant, blue, 600 V, max. 0.5 - 1.5 mm², 500/pack
Highlights & Details
- Unique "U" contact ensures a reliable electrical connection up to 600 V.
- Fast and effortless use through simple folding without stripping or twisting the wire.
- 60998-2-3
- Resistant to moisture in applications in damp environments when using with distribution box.
- IPX8 humidity protection
- Withstands temperatures of up to 105°C.
- RoHS 2011/65/EU compliant
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Number of pins
3
- Factory colour
Blue
- Content
50 pc(s)
- Manufacturer part #
314
- Connection
IDC
- Nominal voltage
600 V
- Temperature range
up to +105 °C
Documents & Downloads
Datasheet
Datasheet 3098735 3M 314 Connector flexible: 0.5-1.5 mm² fixed: 0.5-1.5 mm² Number of pins: 3 50 pc(s) Blue
User & Safety Instructions
User & Safety Instructions 3098735 3M 314 Connector flexible: 0.5-1.5 mm² fixed: 0.5-1.5 mm² Number of pins: 3 50 pc(s) Blue
Information
Information 3098735 3M 314 Connector flexible: 0.5-1.5 mm² fixed: 0.5-1.5 mm² Number of pins: 3 50 pc(s) Blue
Information 3098735 3M 314 Connector flexible: 0.5-1.5 mm² fixed: 0.5-1.5 mm² Number of pins: 3 50 pc(s) Blue
Description

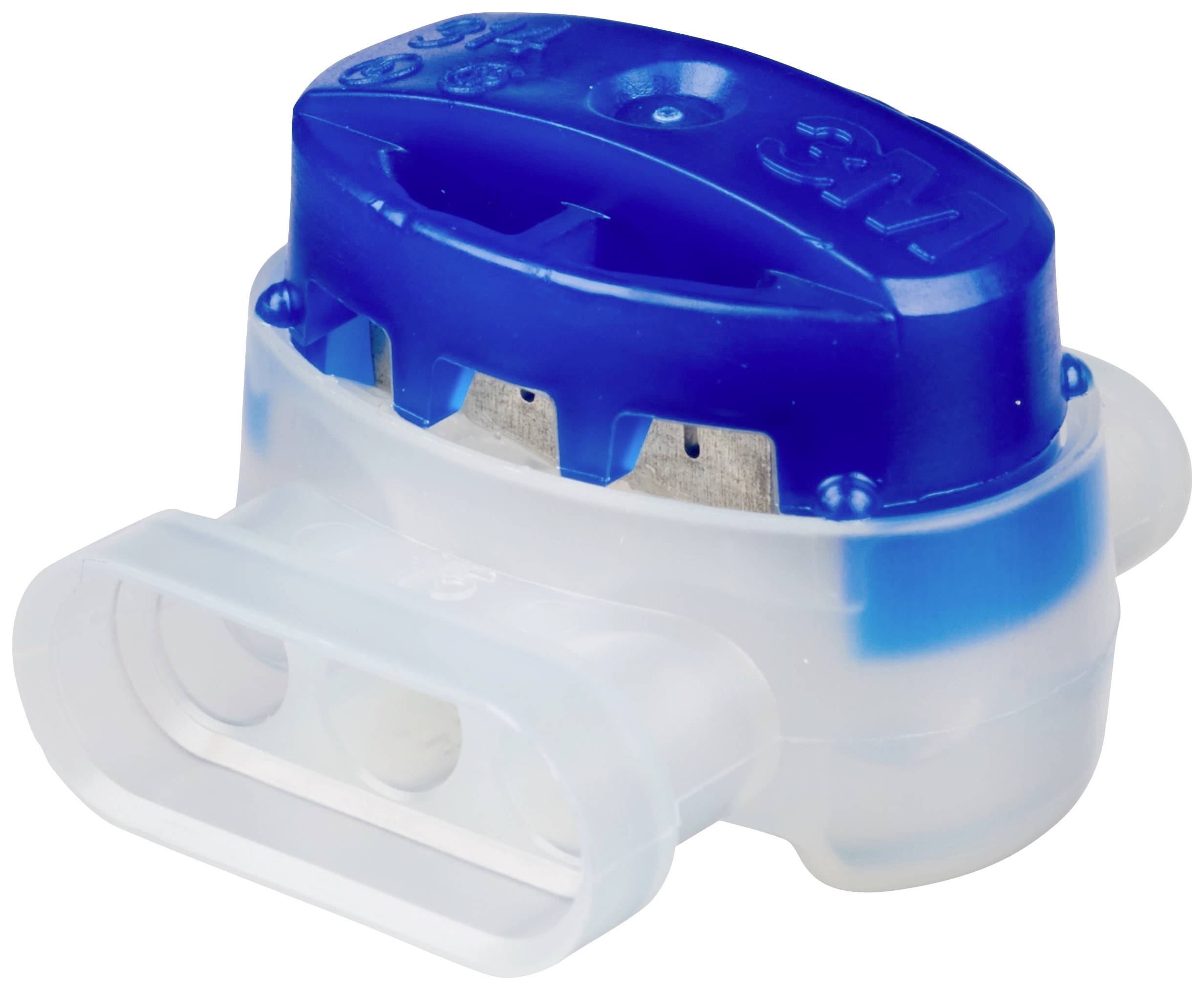

The 3M™ Scotchlok™ 314 IDC connector is self-pulling, flame retardant and moisture resistant, with a unique "U" contact that provides a fast and reliable electrical connection.
This text is machine translated.
This text is machine translated.
Features
- For bundling, color coding and marking
Hints
The 3M™ Scotchlok™ connector is suitable for connecting single or multi-wire conductors in installation wiring technology. With a cross-section range from 0.5 to 1.5 square millimeters, it enables a passage connection even on uncut conductors. Black Scotchlok™ connector has a maximum voltage of 30 volts and a temperature limit of 105°C. It can be used in control, measurement and control range as well as in car electronics and switchgear construction. Its functionality is based on the principle of a U-element: The conductors to be connected are inserted into the connector without having to be stripped beforehand. By lightly pressing the Scotchlok™ pliers, the U-elements remove the wire insulation, enlarge the contact surface and place the contact with the conductor HER. Spring-loaded U-element surrounds the individual wires and provides mechanically stable, vibration-proof, electrically and reliably continuous connection. The connector has been tested in the high-voltage test field of 3M Deutschland GmbH according to VDE 0606, 0607, 0303, 0470 and IEC23F and has met all the conditions. The Scotchlok™ connectors are all UL and C.S.A. listed.
