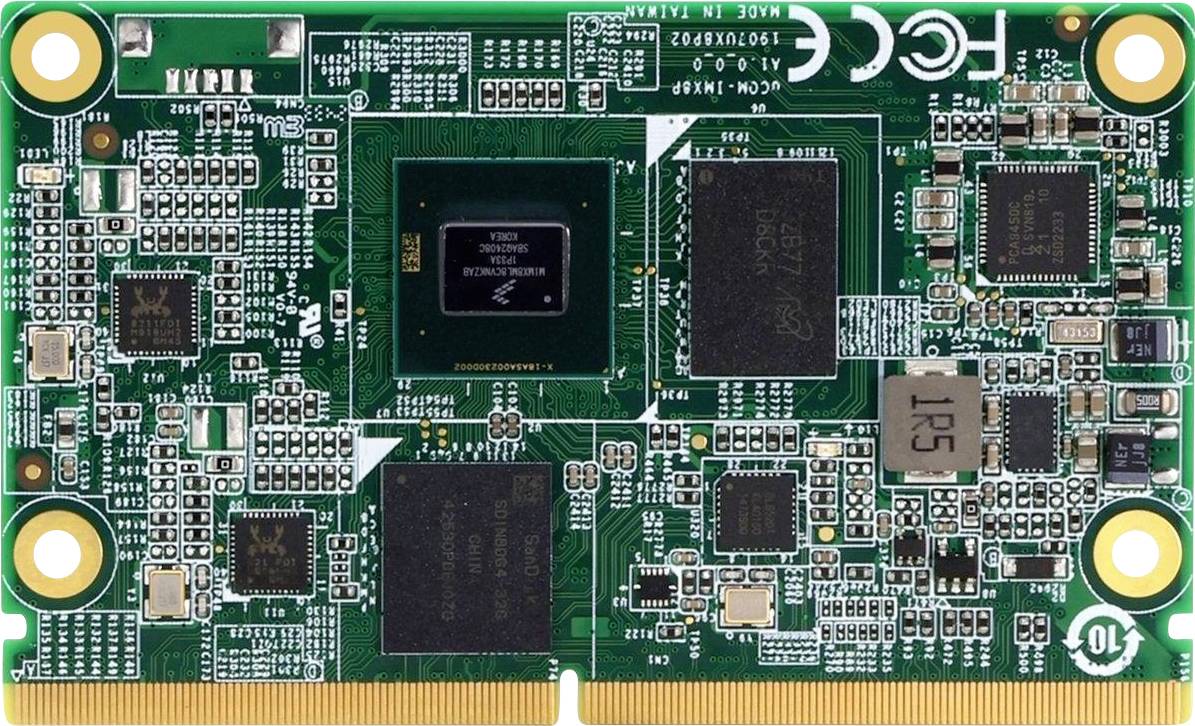

Aaeon uCOM-IMX8P-A11-0002 4 GB 4 x
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 249.99 / piece)
€ 249.99
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Microarchitecture: ARM Cortex-A53 + Cortex M7
- OS support: Debian 12
- Display Interfaces: Int.: LVDS 18/24bit 2Ch
- Product type
SBC
- Processor
ARM Cortex-A53
- Processor cores (No.)
4 x
4 GB
- Memory type
LPDDR4
- Memory capacity
4 GB
- Length
82.00 mm
- Width
50.00 mm
- Height
1.00 mm
- Engineering Series Name
uCOM-IMX8P
- Operating voltage
3.3 V DC
5.25
- CPU
NXP i.MX8M Plus
- CPU speed
1.6 GHz
- Interfaces
1 Gb, PHY x2, 3.2 Gen1x1|2.0 x4|2.0 OTG, CAN 2.0 FD x2|I2C x5|QSPI|SPI|UART (Rx, Tx) x2|UART (Rx, Tx, RTS, CTS) x2, I2S, , , HDMI
- RAM type
LPDDR4 RAM
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3639395 Aaeon uCOM-IMX8P-A11-0002 4 GB 4 x
User & Safety Instructions
User & Safety Instructions 3639395 Aaeon uCOM-IMX8P-A11-0002 4 GB 4 x
Description
uCOM-IMX8P-A11-0002 ;SMARC NXP i.MX8M Plus 4GB LPDDR4 32GB eMMC -40…85°C
