Buy Absima 6-channel "R6WP" 2.4 GHz 6-channel receiver 2,4 GHz Connector system JR

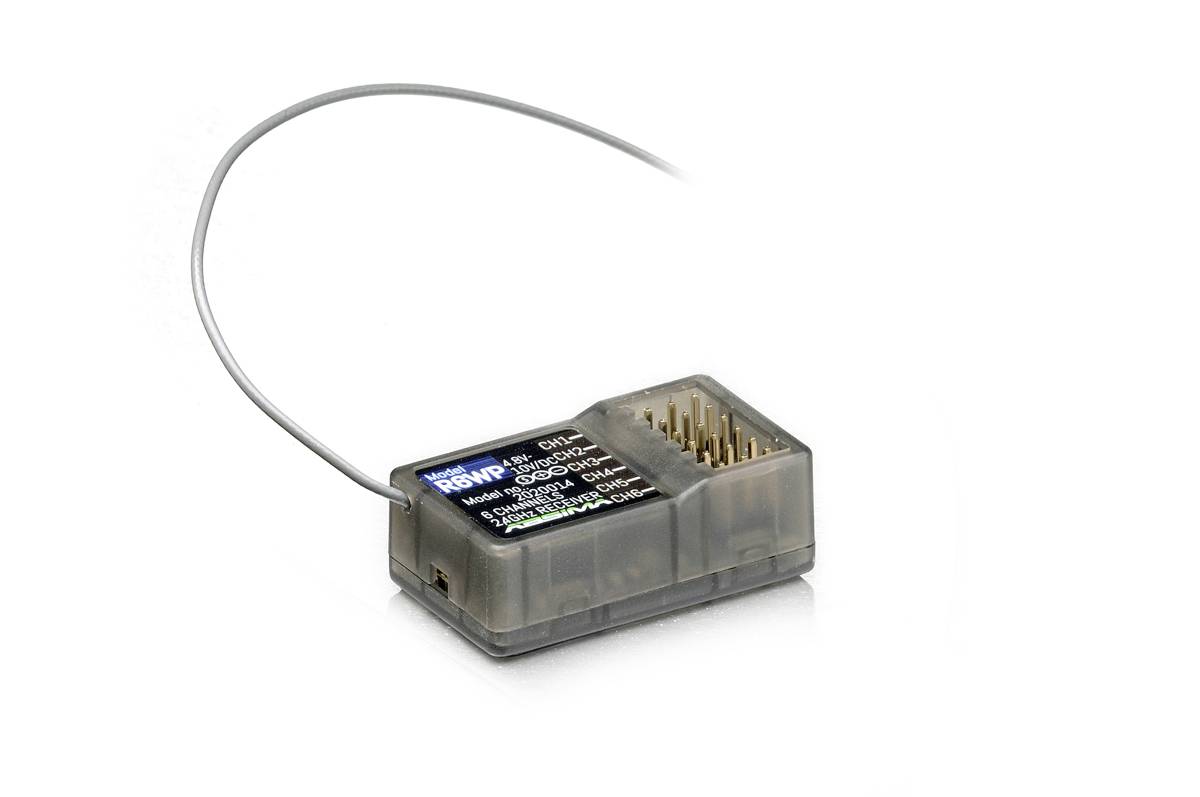

Small electronic module with a clear plastic case and attached cable, showing a row of gold pins on top against a white background.

4 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 21.81 / piece)

€

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Model Making Receivers

Receiver
Brand compatibility: Absima
1 pieces(s)

Technical specifications

Product type: Receiver

Dim: (W x H x D) 35 x 13 x 20 mm

Weight: 10 g

No. of channels (details): 6

Operating voltage: 4.0 - 8.4 V

Connector system: JR

Factory colour: Black

Depth: 20 mm

Height: 13 mm

Width: 35 mm

Manufacturer part #: 2020014

HF modulation: GFSK

Load (max.): 30 A

Frequency: 2,4 GHz

Min. operating voltage: 4.0 V

Max. operating voltage: 8.4 V

Compatible with: CR6S

Compatible with: Absima

Product type: 6-channel receiver

Maximum operating distance: 200 m

Quantity per pack: 1 Stück(e)

Receiver included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3760323 Absima 6-channel "R6WP" 2.4 GHz 6-channel receiver 2,4 GHz Connector system JR

Description

R6WP receiver technical details:

6-channel receiver
Operating voltage 3.3 - 10.0 volt
Operating current: 30 mA
Splash-proof
Supports high-voltage servos
Connector system : JR / Futaba
Dimensions (L/W/H) 35 x 20 x 13 mm
Weight: 7 g
Compatible only with Absima CR6S remote control system
Delivery scope :

1 PC. Receiver R6WP
Bind plug

This text is machine translated.

Features

6-channel receiver;Operating voltage 3.3 - 10.0 Volt;Operating current: 30 mA;Supports high-voltage servos;Plug system: JR / Futaba;Dimensions (L/B/H): 35 x 20 x 13 mm;Weight: 7 g

Scope of delivery

1 PC. Receiver R6WP
Bind plug

System requirements

Suitable for Absima remote controls CR4S-EVO (NEW) / CR6S (Conrad Art. 2238975) / SR6S-EVO (NEW)
