Buy Reely Gen7 RX 7-channel receiver 2,4 GHz

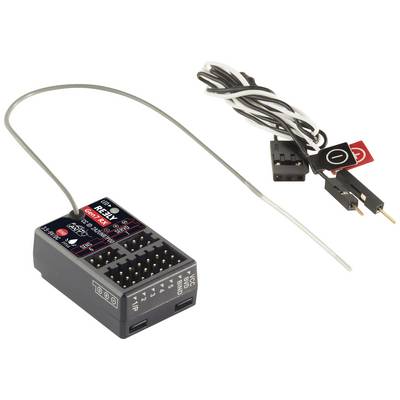

A radio control receiver with connected antenna and two cables with connectors, suitable for model building applications.

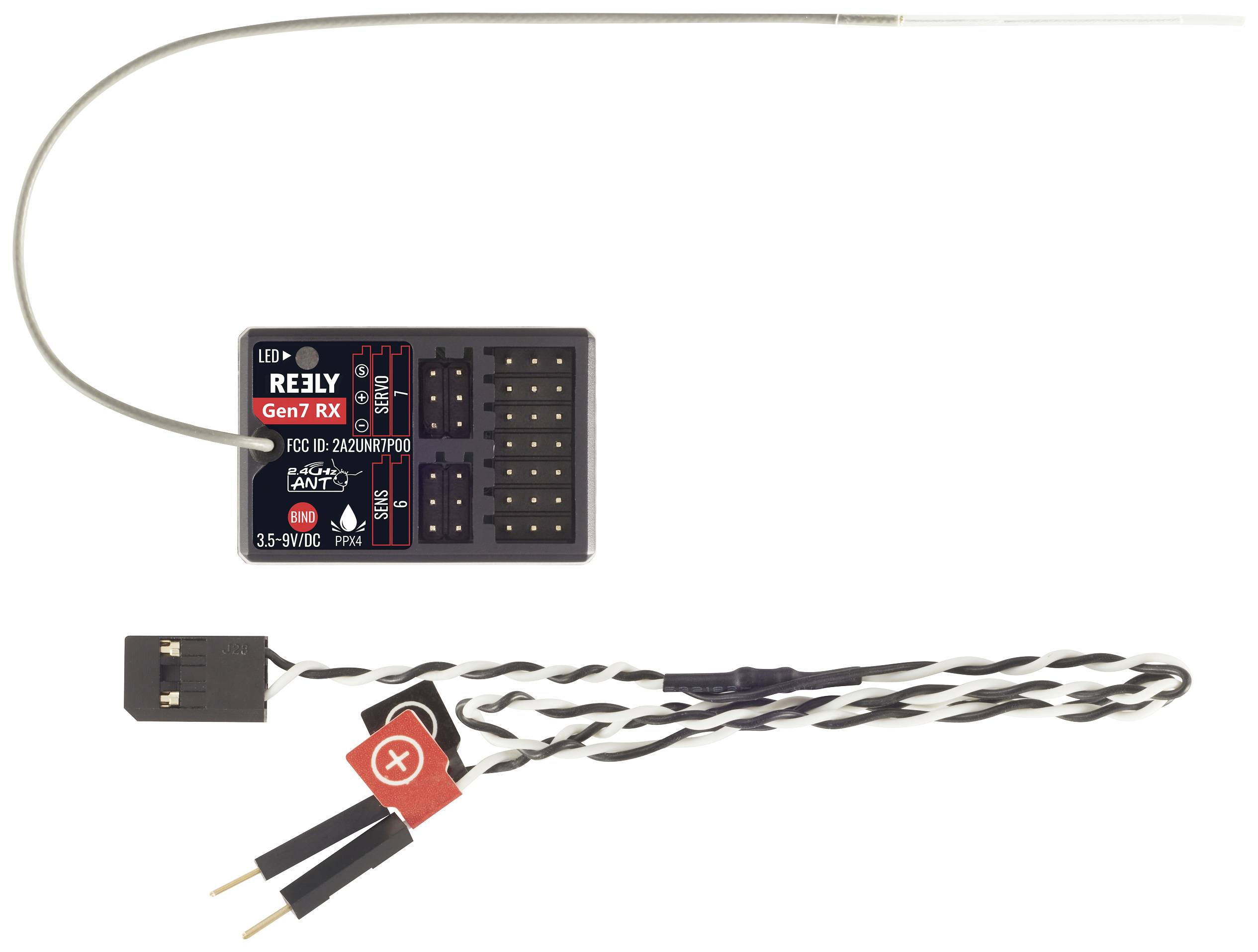

'RELY Gen7 RX' receiver shows various connections and labelled cables. Suitable for models with 3.5-9V direct current requirement.

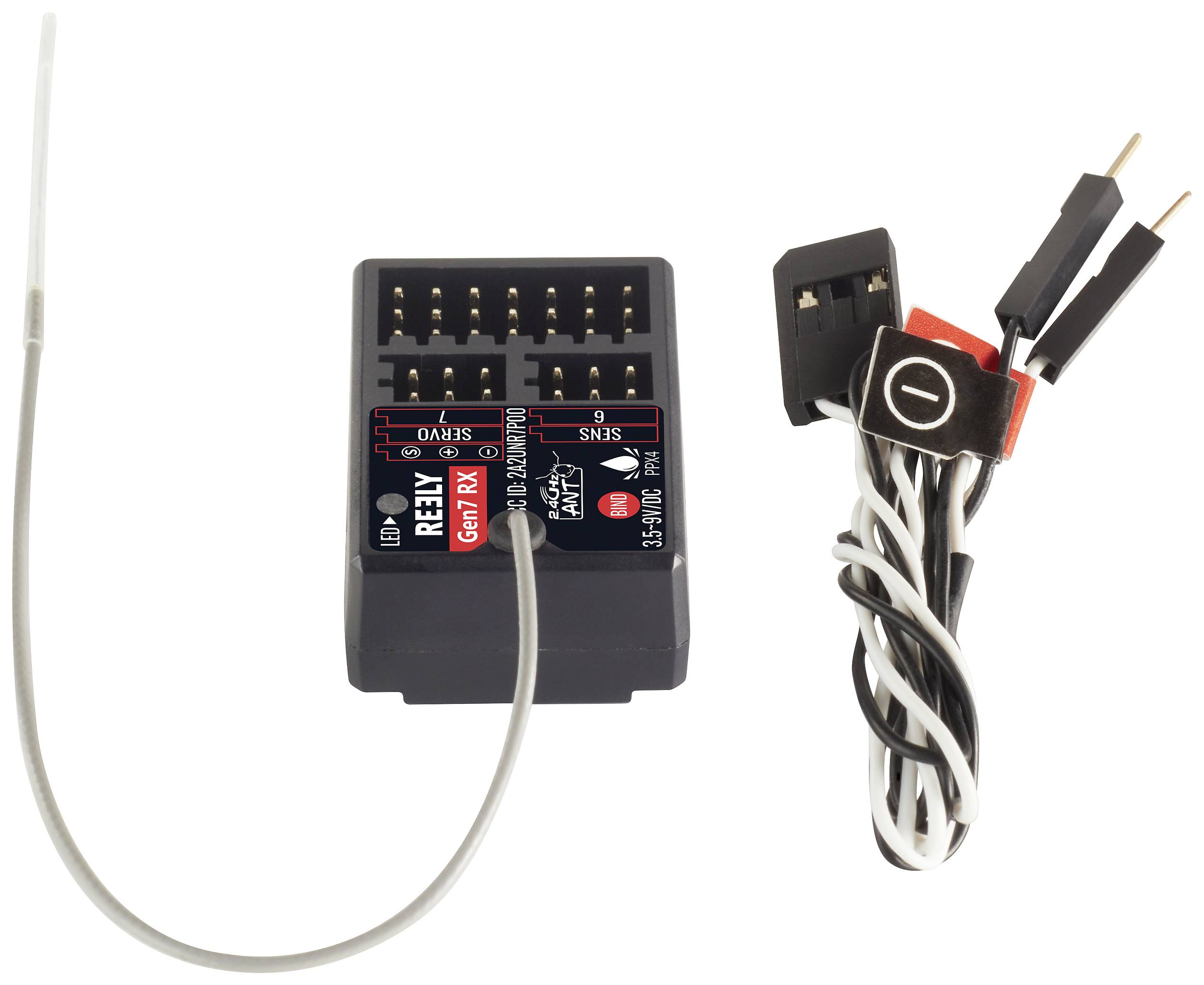

Small black receiver with multiple ports and an attached cable with two connector plugs. Primarily used for electronic devices.

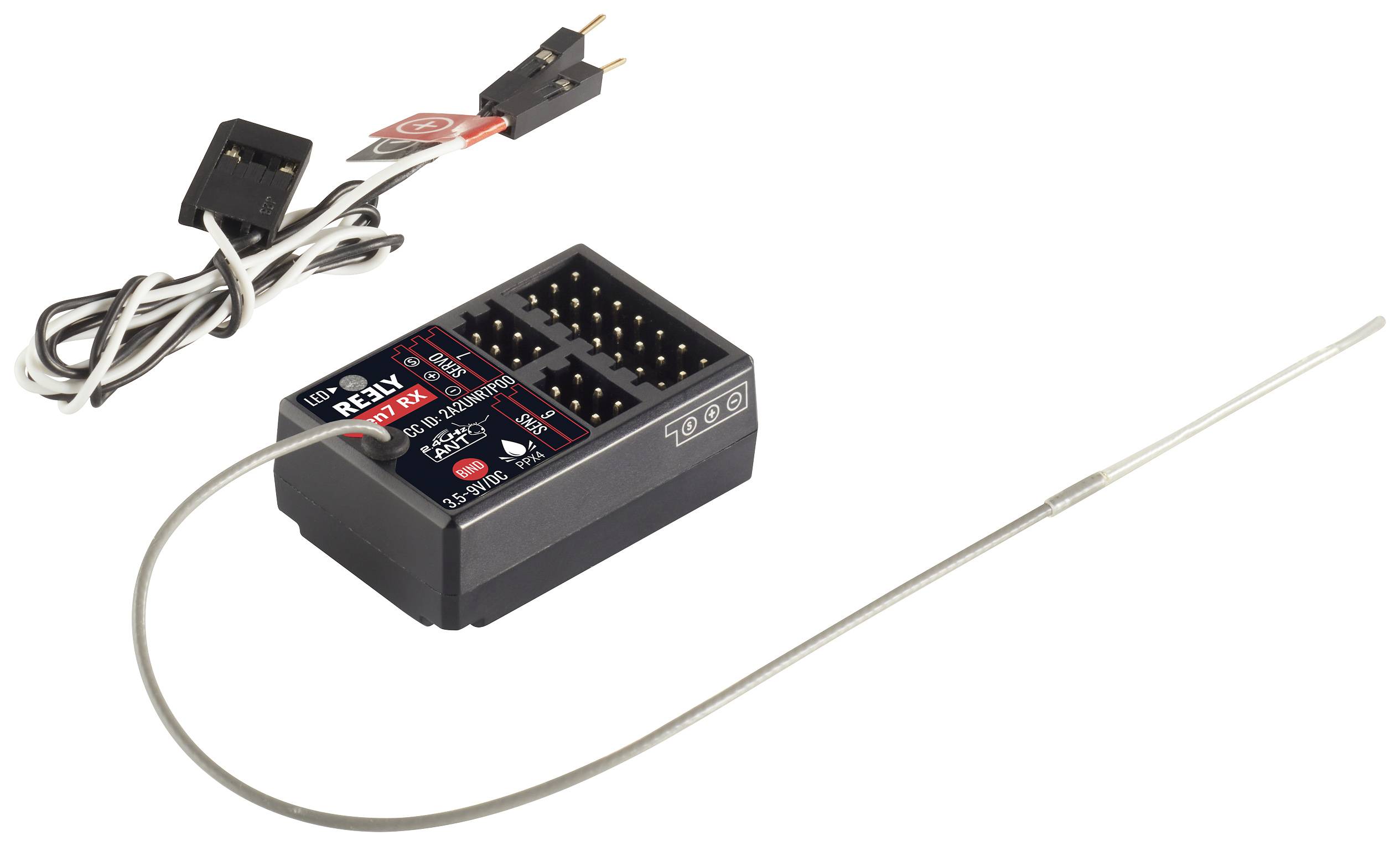

A digital thermometer with cable and probe, suitable for temperature measurement in various applications.

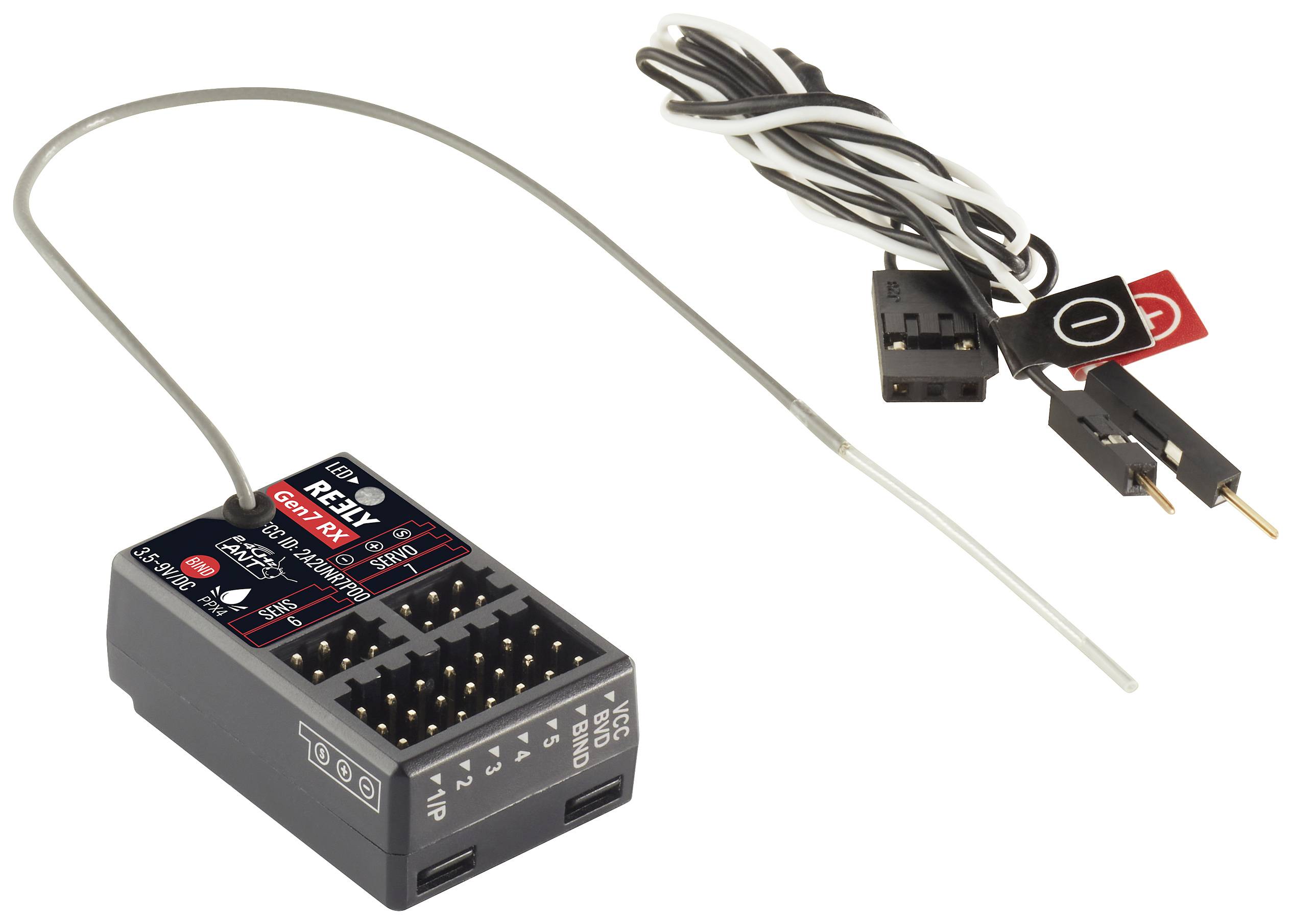

A radio signal receiver with an antenna, multiple connection terminals and cables. Suitable for model-making applications and remote controls.

'Bildera' RC receiver with multiple plug connections and a long, thin antenna. Alongside it lies a cable with two plug connectors.

1/6

Our service for you

Fast track dispatch on Mon, 14 Sep

196 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Report legal concerns

Highlights & Details

Model Making Receivers

7-channel receiverSupports two-way binding and one-way binding

Technical specifications

Dim: (L x W x H) 23.6 x 35 x 13.3 mm

Weight: 6 g

No. of channels (details): 7

Operating voltage: 3.5 - 8.4 V

Height: 13.3 mm

Length: 23.6 mm

Width: 35 mm

Manufacturer part #: RE-7835043

Model: Gen7 RX

Frequency: 2,4 GHz

Min. operating voltage: 3.5 V

Max. operating voltage: 8.4 V

Plastic free packaging: Plastic-free packaging

Product type: 7-channel receiver

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2611681 Reely Gen7 RX 7-channel receiver 2,4 GHz

Description

High-quality 7-channel receiverTo establish a connection with servos or other compatible components, the Reely model-built receiver provides seven channels for the output of the PWM signal. A PPM signal can also be output via channel 1.Variety of interfacesDuring normal operation, the voltage is at the BVD/VCC interface, a BVD harness can be connected to detect the battery voltage. In addition, connections are available for the binding process, for i-BUS sensors as well as a SERVO interface for the output of i-BUS or S-BUS signals. The i-BUS type channel extension is also supported here. ANT serves as the wireless network standard.

This text is machine translated.

Features

CH 1 to CH 7: For the output of the PWM signal (in addition, CH 1 can output the PPM signal)Can be connected to servos or other compatible componentsBVD/VCC: During the battery voltage detection process, a BVD harness is connected here. In normal operation, the voltage is at this interfaceBind interface: During the tying cycle, a tie wire is connected to this interfaceSENS interface: For connecting i-BUS sensorsSERVO interface: For the output of i-BUS or S.BUS signals and for supporting the channel expansion in i-BUS typeRF protocol: ANT

Scope of delivery

Receiver
User manual.
