Buy Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 2280 Turns: 21.5

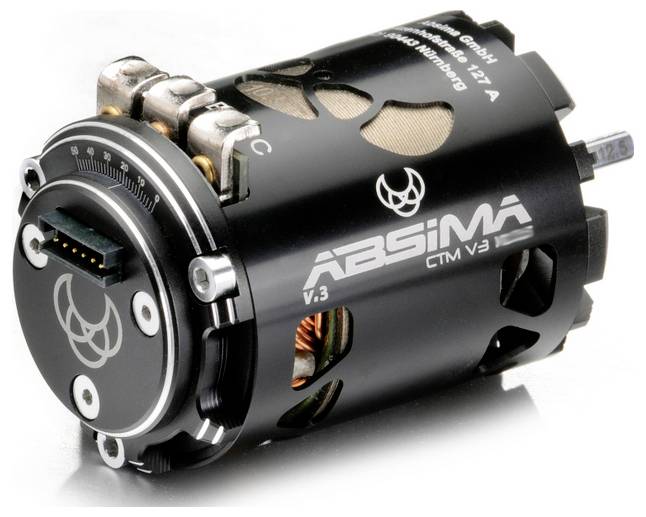

Black electric motor with trademark and model number 'Absima CTM V3', with visible connections and ventilation openings.

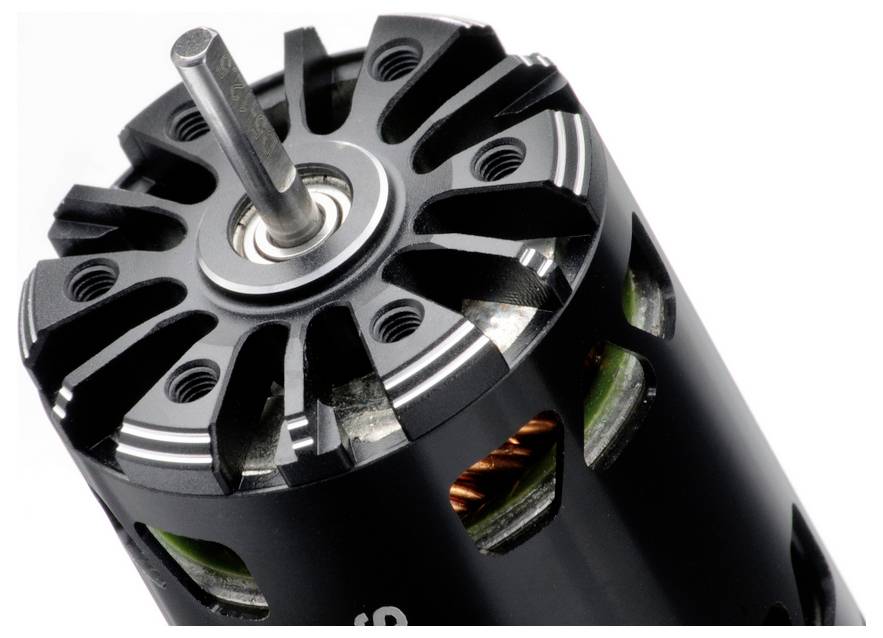

A black electric motor with cooling apertures and visible copper windings. The motor is cylindrical with a protruding axle.

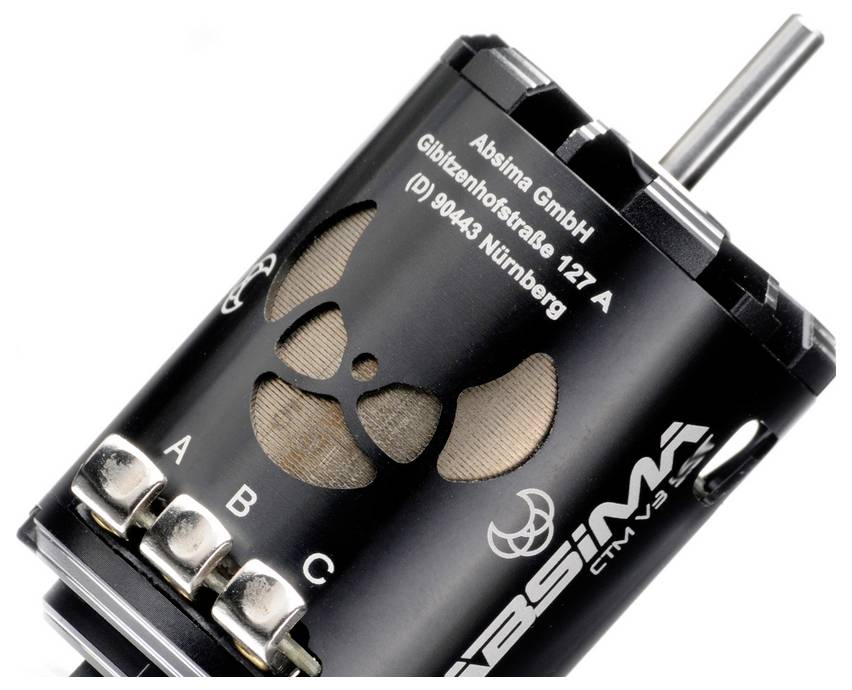

Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 2280 Turns: 21.5-4

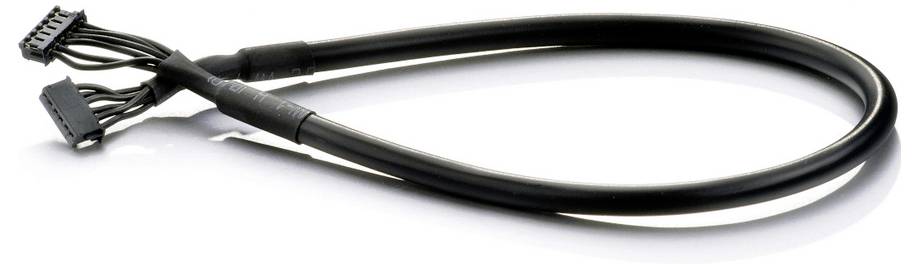

Black connecting cable with two plugs at the ends, used for transmitting data or electricity between devices.

1/6

Fast track dispatch on Mon, 14 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 67.22 / piece)

€ 67.22

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Absima 1:10 high performance brushless motor "Revenge CTM V3" 21.5T stock

CNC milled lightweight housing
High torque stator
Extremely stable and balanced rotor
Optimized air cooling
Stainless Steel Bearings
Silver-plated soldering tags
Adjustable motor timing
Sensor-controlled
2 pin
Designed for maximum performance

Technical specifications

Turns 21.5T
Rpm per V: 2280 KV
Power 160 W
Continuous current 20 A
Efficiency: 96%
Operation (VOLT) 1-3S LiPo
Pole (motor) 2 pole
Sensor
Adjust timing
Ø Shaft 3,175 mm
Wavelength 15.2 mm

Dim: (Ø x L) 35.8 mm x 51.8 mm

(Ø): 35.8 mm

Length: 51.8 mm

kV (RPM per volt): 2280

Manufacturer part #: 2130062

Output power: 160 W

Shaft Ø: 3.175 mm

Turns: 21.5

Efficiency: 96 %

Weight: 165 g

Product type: Model car brushless motor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3404490 Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 2280 Turns: 21.5

Description

NEW DESIGN - LESS WEIGHT - EXCELLENT PERFORMANCE ! YOUR ARGUMENTS FOR THE REVENGE V3 ENGINE SERIES · One year of development is stuck in the new generation of brushless REVENGE CTM V3 competition engines. On the outside, we have changed the housing design to reduce weight and ensure maximum cooling and excellent heat dissipation. The heart of the engines is a new, unique high torque stator to achieve a Maximum of performance and speed. Of course, all motors are controlled by sensor (sensor cable included) with adjustable timing and are supplied with stainless steel ball bearings.

This text is machine translated.
