Buy Hobbywing Hobbywing Quicrun Fusion Pro Elite 2300kV Model car brushless motor kV (RPM per volt): 2300

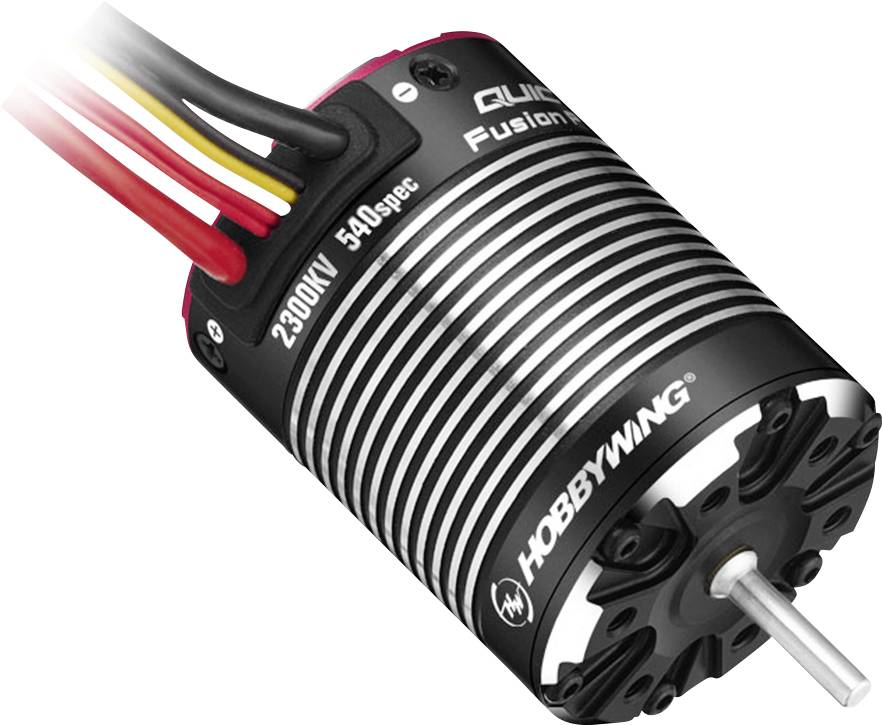

Black Hobbywing QuicRun Fusion brushless motor with attached red, yellow, and black wires and protruding shaft.<br>

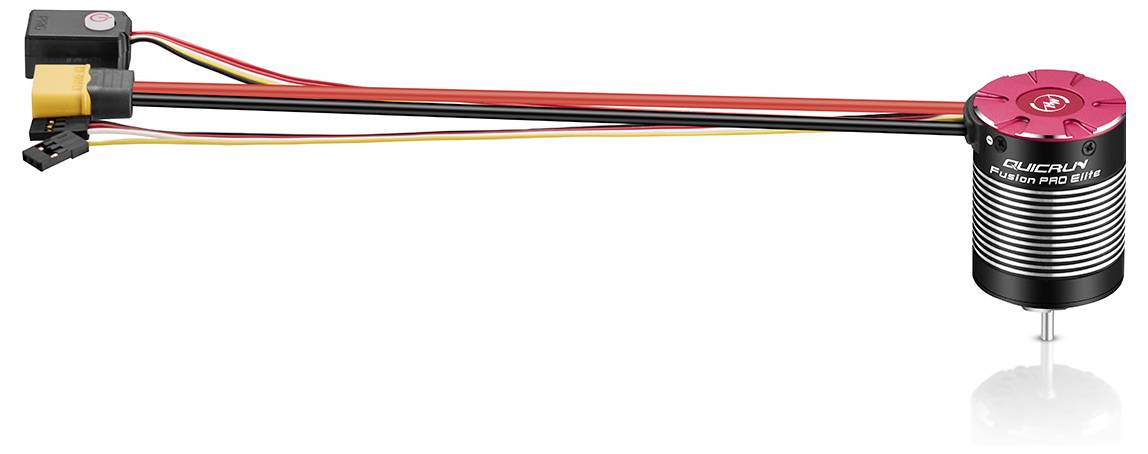

Brushless motor connected to an ESC with wires and a small propeller shaft, shown on a white background.

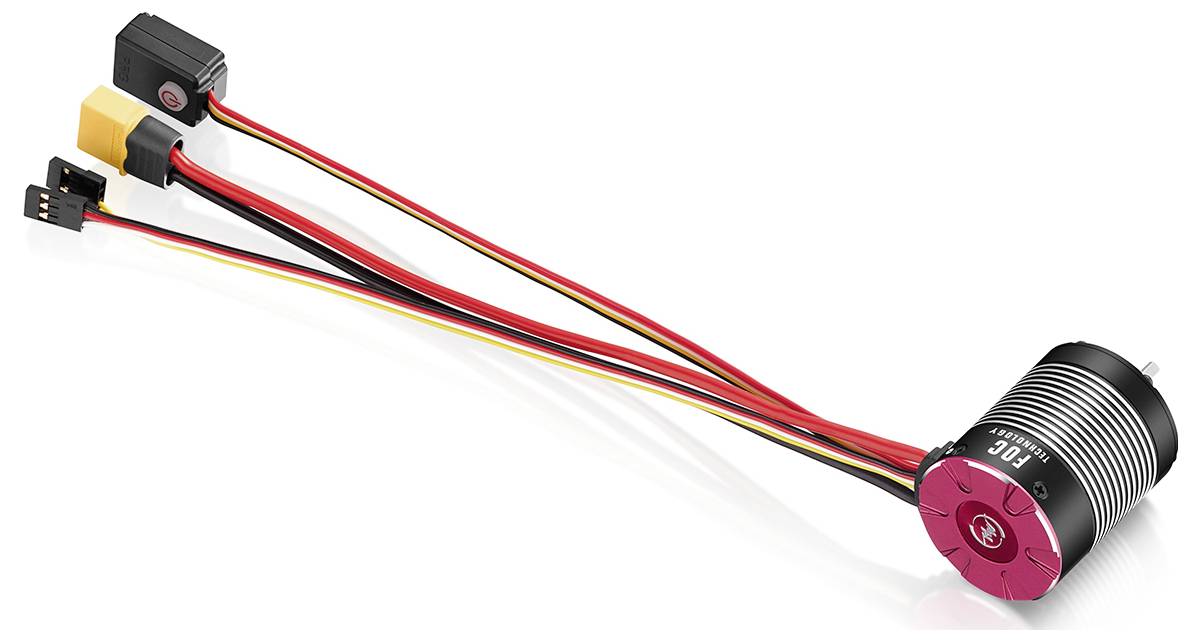

Brushless electric motor with attached red, black, and yellow wiring harness and connectors on a white background.

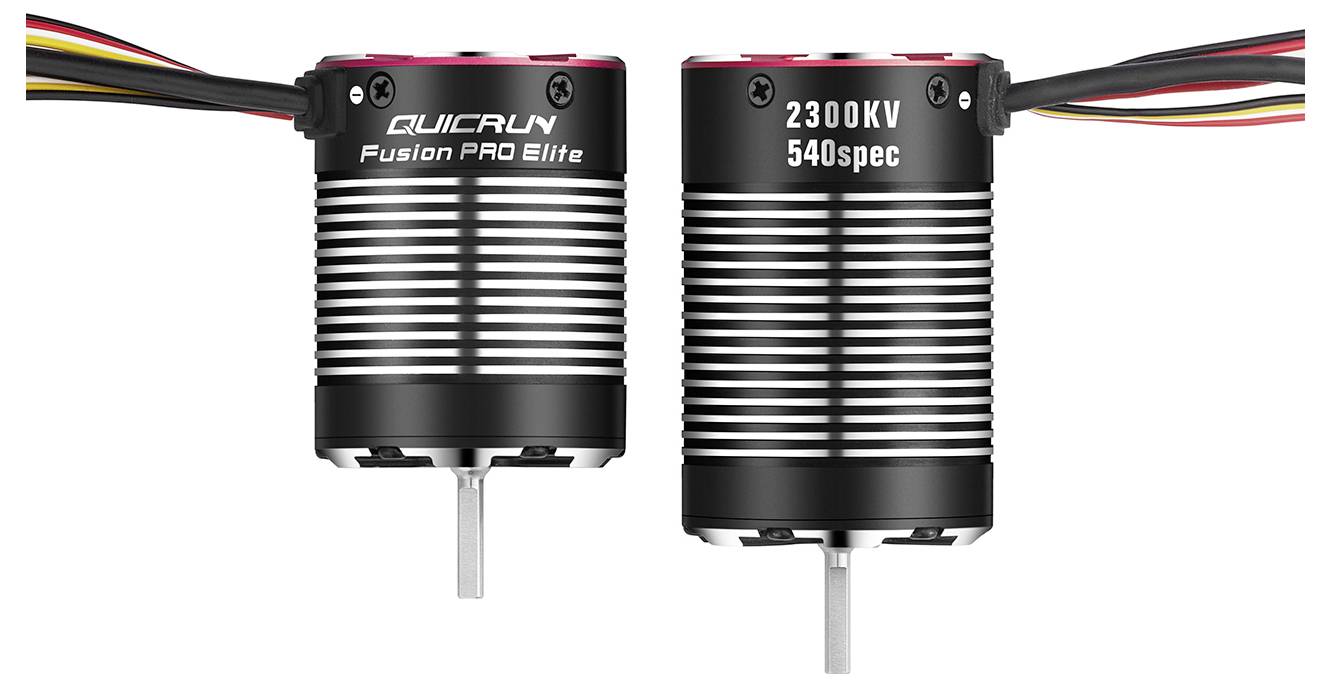

Two black brushless motors side by side, labeled 'QUICRUN Fusion Pro Elite' and '2300KV 540spec', each with exposed wires and a silver shaft.

1/4

Dispatches on Tue, 22 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Highlights & Details

Quickrun Fusion Pro Elite 2300kV 2-4s

2 in 1 design: Motor & ESC combined, only 48.5 mm long
9.5mm shorter than the QuickRun Fusion Pro, 1.3mm shorter than the AXE 540
FOC drive: Particularly strong low speed torque & silent operation
Maximum continuous current: 50A at 2–4S LiPo
Intelligent torque & speed regulation for precise control
"Drag Brake" and additional parameters can be set in real time via AUX channel
5 operating modes
Fully water and dust proof according to IP67

Technical specifications

Dim: (Ø x L) 37 mm x 48.5 mm

(Ø): 37 mm

Length: 48.5 mm

kV (RPM per volt): 2300

Manufacturer part #: HW30120500

Shaft Ø: 3.175 mm

Shaft Ø: 3.175 mm

No. of LiPo cells: 2–4S

Weight: 178.5 g

Product type: Model car brushless motor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742889 Hobbywing Hobbywing Quicrun Fusion Pro Elite 2300kV Model car brushless motor kV (RPM per volt): 2300

Description

Hobbywing Quickrun Fusion Pro elite 2300kV 2-4s

The Hobbywing QuickRun Fusion Pro elite is the latest generation of the popular Fusion-series and combines motor and regulator in an ultra-compact 2in1-design. With a total length of just 48.5mm, it is a whole 9.5mm shorter than the QuickRun Fusion Pro version and even 1.3mm shorter than the AXE 540.

Thanks to the FOV (Field-Oriented Control) drive technology, the Fusion Pro Elite delivers extremely high torque at low speeds as well as an exceptionally smooth and quiet feel. This enables precise climbing and controlled driving even on challenging terrain.

The controller supports 2–4S LiPo and provides a maximum continuous current output of 50A, guaranteeing a stable and constant power output without dropouts. Combined with intelligent torque management and closed regulation for speed and power, the Fusion Pro Elite offers highest control on any surface.

This text is machine translated.

Scope of delivery

1× QuickRun Fusion Pro Elite
1 set of operating instructions
