Buy Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 2300

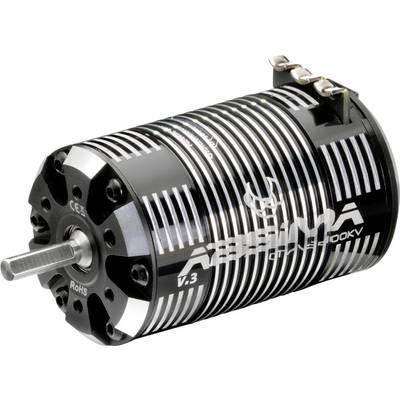

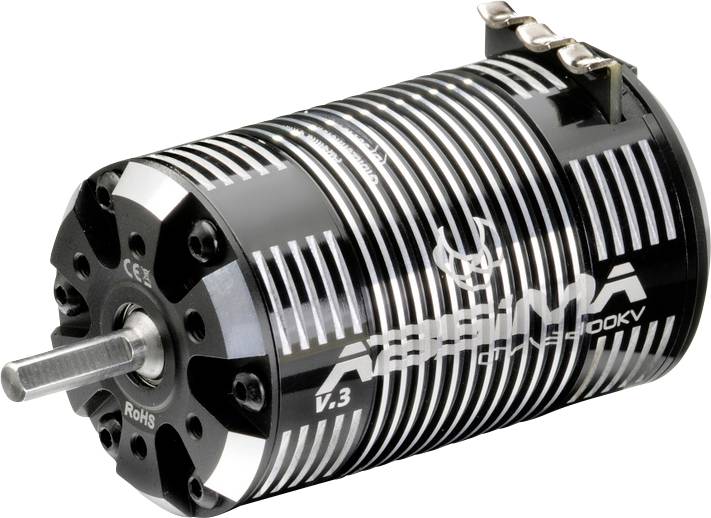

A black and silver electric motor with cooling fins and plug connections. Label reads: 'ARRMA 6S 2050KV V.3'. Suitable for RC vehicles.

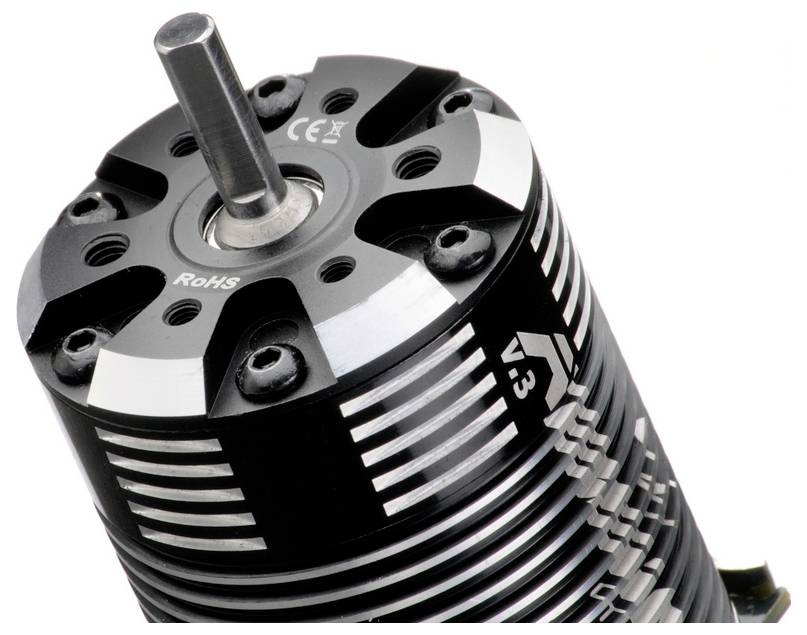

Close-up of an electric motor with a ribbed casing and silver shaft. The design displays certification marks and screws.

'Cylindrical electronic device with USB ports and ventilation slots, potentially a portable charging or lighting unit.'

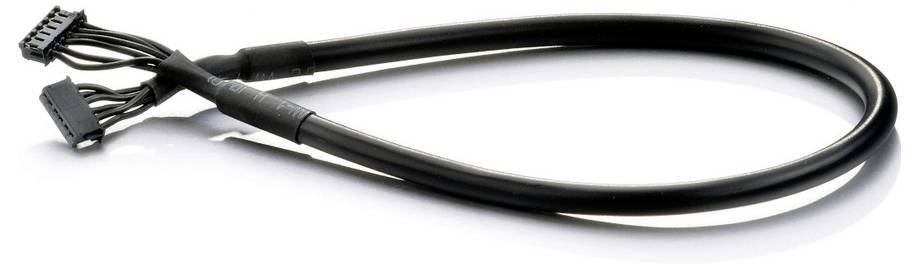

A black, flexible data cable with two connectors at each end, used for internal connection of computer components.

1/6

Fast track dispatch on Mon, 14 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Absima 1:8 high performance brushless motor "Revenge CTM V3" 2300KV

CNC milled lightweight housing
High torque stator
Extremely stable and balanced rotor
Optimized air cooling
Stainless Steel Bearings
Silver-plated soldering tags
Adjustable motor timing
Sensor-controlled
4 pole
Designed for maximum performance

Technical specifications

Turns 2300 KV
Power 2100 W
Continuous current 145 A
Efficiency: 88%
Operation (VOLT): 4-6S LiPo
Pole (motor) 4 pole
Sensor
Adjust timing
Ø Shaft 5.0 mm
Wavelength 18.3 mm

Dim: (Ø x L) 42 mm x 69 mm

(Ø): 42 mm

Length: 69 mm

kV (RPM per volt): 2300

Manufacturer part #: 2130065

Output power: 2100 W

Shaft Ø: 5 mm

Efficiency: 88 %

Weight: 320 g

Product type: Model car brushless motor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3404492 Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 2300

Description

NEW DESIGN - LESS WEIGHT - EXCELLENT PERFORMANCE ! YOUR ARGUMENTS FOR THE REVENGE V3 ENGINE SERIES · 1:8 "Revenge CTM 8 V3" High Performance Brushless Motors · One year of development is stuck in the new generation of brushless REVENGE CTM V3 competition engines. On the outside, we have changed the housing design to reduce weight and ensure maximum cooling and excellent heat dissipation. The heart of the engines is a new, unique high torque stator to achieve a Maximum of performance and speed. Of course, all motors are controlled by sensor (sensor cable included) with adjustable timing and are supplied with stainless steel ball bearings.

This text is machine translated.
