Name: ACV ISO jack adapter Compatible with: Dacia
Brand: ACV
SKU: 3594961
Availability: InStock

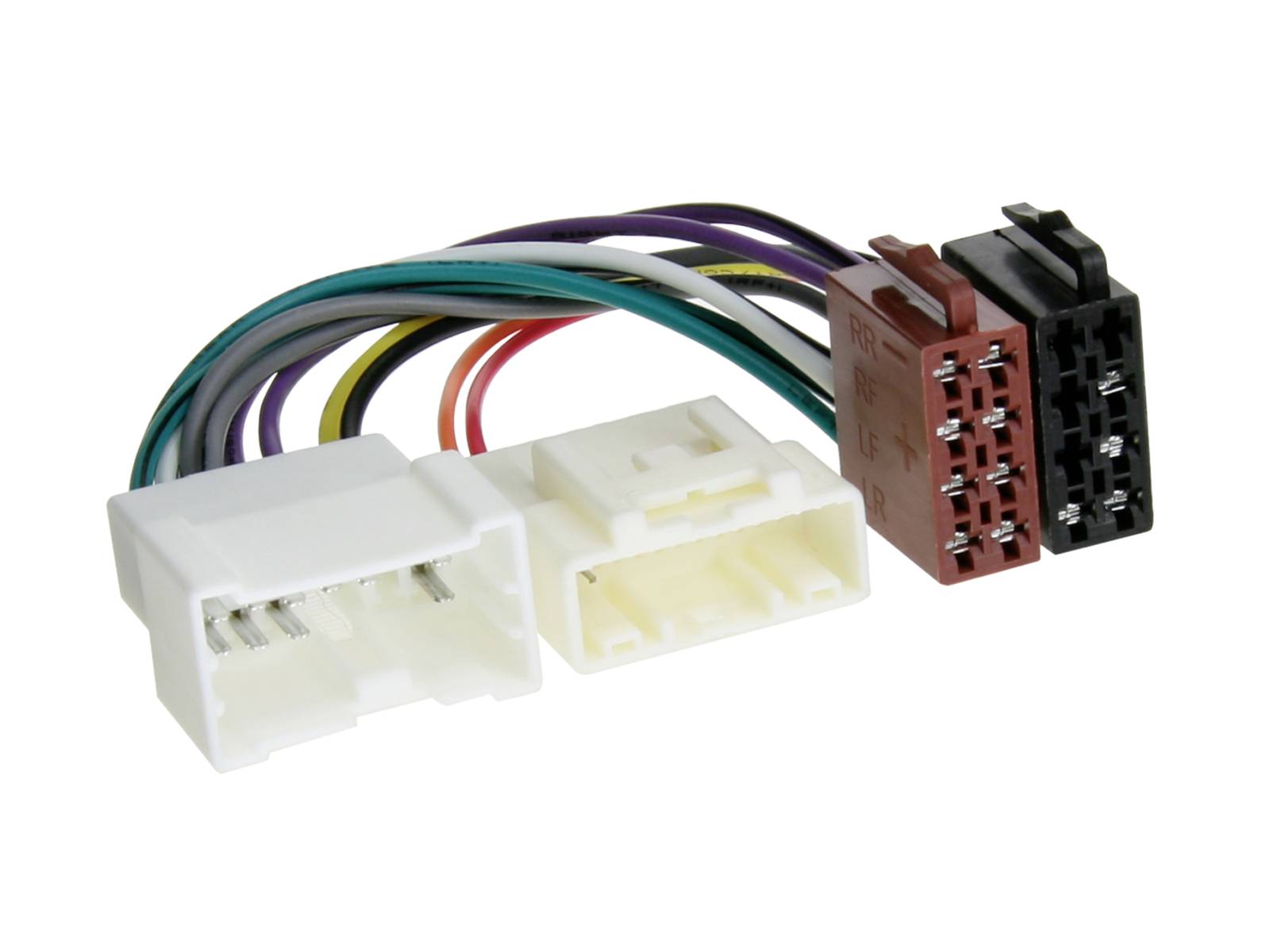

Multi-colored automotive wiring harness with four plastic electrical connector plugs on a white background.

'Car stereo wiring harness with three connectors, each with multiple colored wires; used for connecting audio components.'

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: ISO adapter
Compatibility: ACIA Docker (SD) 12/2012 - 11/2020*
Dacia Dokker Stepway (SD) 11/2014 - 11/2020*
Dacia Duster (SD/SR Facelift) 11/2013 - 07/2021*
Dacia Lodgy (SD) 06/2012 - 06/2021*
Dacia Lodgy Stepway (SD) 11/2014 - 06/2021*
Dacia Logan MCV (SD) 07/2013 - 09/2020*
Dacia Sandero (SD) 01/2013 - 09/2020*
Dacis Sandero Stepway (SD) 01/2013 - 09/2020*
Fiat
Fiat Talento (ZAF 296) 07/2016 - 2021**
Mercedes
Mercedes Citan (W415) 10/2012 - 12/2020
Nissan
Nissan NV300 (J4) 11/2016 - 05/2021*
Nissan NV400 (X62) 2014 - 2019
Nissan NV400 2020 - 2021*****
Nissan Primastar (X83 Facelift) 01/2011 - 05/2015***
Opel
Opel Movano B (X62) 06/2013 - 09/2019**
Opel Movano B (X62) 10/2019 - 08/2021*****
Opel Vivaro B (X82) 06/2014 - 01/2019**
Renault
Renault Capture (R) 06/2013 - 12/2019**
Renault Clio (IV X98) 11/2012 - 04/2019
Renault Grand Scenic 04/2012 - 09/2016***
Renault Kangoo (W) 03/2013 - 12/2020
Renault Master 09/2014 - 09/2019
Renault Master (4G) 10/2019 - 2021*****
Renault Megane 3 04/2012 - 12/2013****
Renault Scenic (JZ) 02/2012 - 09/2016***
Renault Trafic III (E82/F82) 09/2014 - 04/2021**
Renault Twingo (N) 01/2012 - 07/2014***
Renault Wind 08/2010 - 08/2013*

Product type: ISO jack adapter

Compatible with: Dacia

Compatible with: Dacia Duster

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3594961 ACV ISO jack adapter Compatible with: Dacia

Description

ISO adapter cables are used for the passive connection of retrofitting devices to the factory plugs present in the radio installation slot.
Depending on the vehicle and equipment, the following signals are available:

12V steady current
12V ignition
Earth
Lighting
Antenna remote
Loudspeaker connection for front and rear loudspeakers

In the case of vehicles with different equipment, signals that are not available must be connected to suitable tapping points in the vehicle (example: Fuse box) or additional adaptations/interfaces:

CAN bus interfaces
LFB interfaces
Sound system adapter
Camera adapter

Check the signals before connecting them.

Note:

Connection: 12 Pin / 24 Pin Dacia Plug

Vehicles with CAN bus, if necessary +12V ignition current terminal 15 fuse box secured

For the following application:

Radio connection cable electricity/loudspeaker

This text is machine translated.
