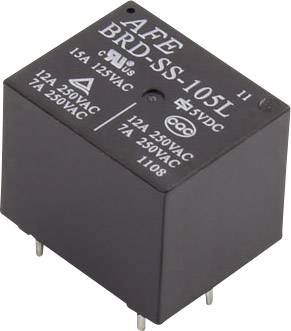

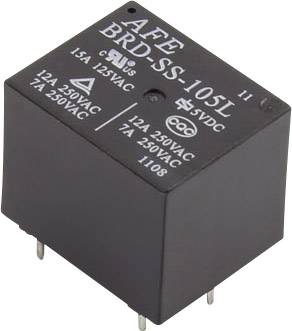

AFE BRD-SS-105L PCB relay 5 V DC 15 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
5 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
Highlights & Details
Print relay, series GERMANY (L)
Our service for you
Technical specifications
- Product type
PCB relay
- Type
BRD-SS-105L
- Coil nominal voltage
5 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
70 Ω
- Coil voltage rating
360 mW
- Contact type
1 change-over
- Contact material
Ag
- Switching voltage (max.)
250 V AC
- Switching current (max.)
15 A
- Max. switching capacity
3000 VA
- Connection
Solder pins
- Response time
10 ms
- Fall time
5 ms
- Electrical lifespan
1 x 10 5 cycles
- Durability
1 x 107 switching operations
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Weight
9 g
- Factory colour
Black
- Length
19.2 mm
- Width
15.5 mm
- Height
15.3 mm
- Dim
(L x W x H) 19.2 x 15.5 x 15.3 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1405635 AFE BRD-SS-105L PCB relay 5 V DC 15 A 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1405635 AFE BRD-SS-105L PCB relay 5 V DC 15 A 1 change-over 1 pc(s)
