Akyga AK-L1-075 Industrial PSU 15 V DC 6.25 A 75 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
LED POWER SUPPLY AK-L1-075 12V / 75W
- Output 15 V DC / 6.25 A
- Power 75 W
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H): 159x98x43 mm
- Supply voltage 100-265 V
- IP rating: IP20
- Supply line: Screw
- Product type
Industrial PSU
- Input voltage (max.)
265 V
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Min. input voltage
100 V
- Dim
(L x W x H) 159 x 98 x 43 mm
- Output voltage (max.)
15 V DC
75 W
IP20
- Type
closed
- Operating temperature (max.)
50 °C
- Operating temperature (min.)
5 °C
- Weight
298 g
- Width
98 mm
- Height
43 mm
- Length
159 mm
- Type
AK-L1-075
- Output voltage (min.)
11 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865412 Akyga AK-L1-075 Industrial PSU 15 V DC 6.25 A 75 W
User & Safety Instructions
User & Safety Instructions 2865412 Akyga AK-L1-075 Industrial PSU 15 V DC 6.25 A 75 W
Description

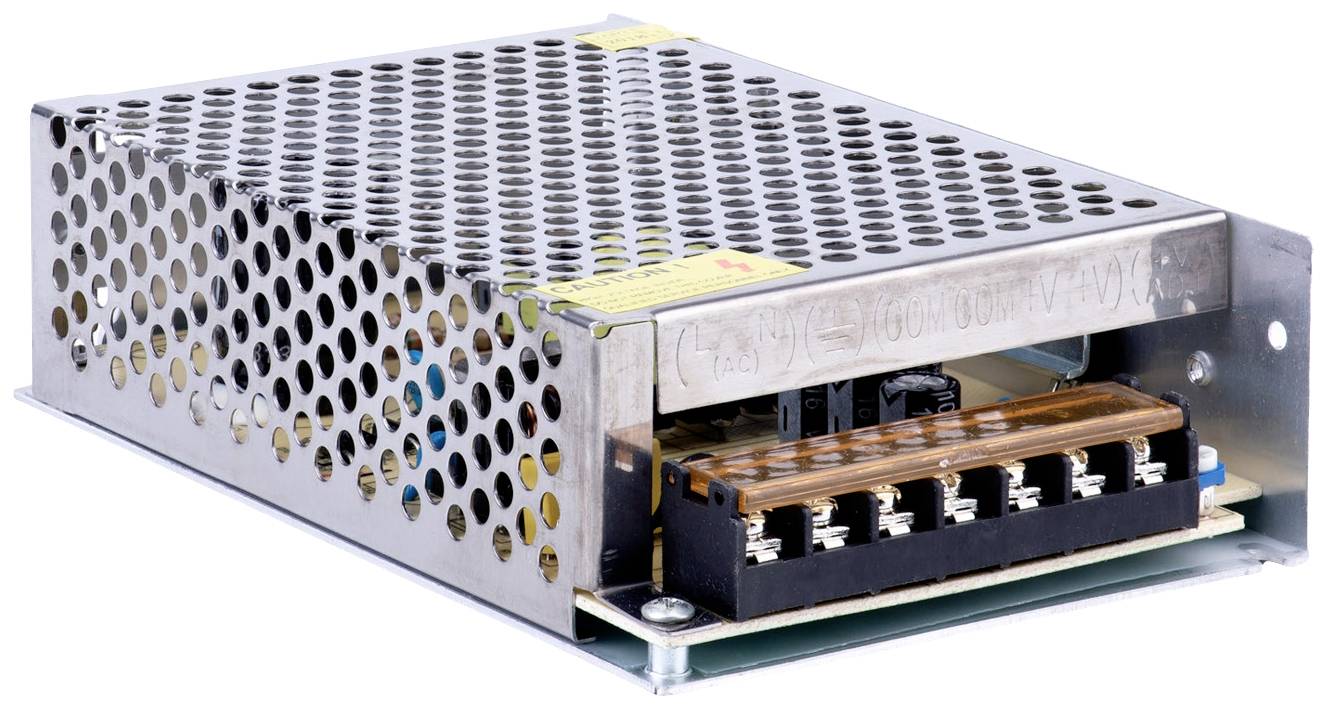

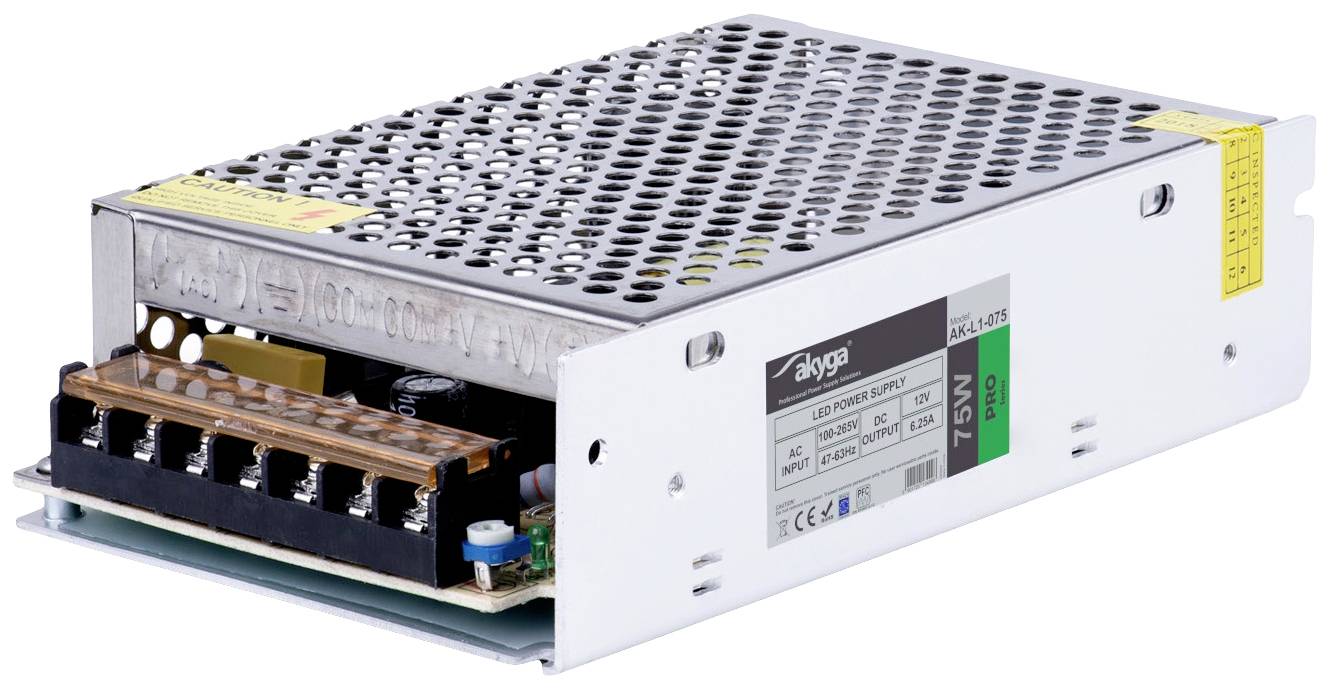

The Akyga® AK-L1-075 is a 75W power supply for industrial automation systems, machine control and lighting based on LED technology , which is controlled by a potentiometer for power supply of LED strips, LED lamps, LED panels, RGB LED drivers and other electronic devices with 11 - 15V DC. Current carrying capacity of 6.25A allows a 14m LED strip to be supplied with parameters of 4.8 W/m. It is possible to supply two different circuits at the same time.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
