Name: Akyga AK-SC-08 Low power adapter cable DC power plug, 3.0 x 1.0 mm - Open cable ends 1.2 m 1 pc(s)
Brand: Akyga
SKU: 3553685
Availability: InStock

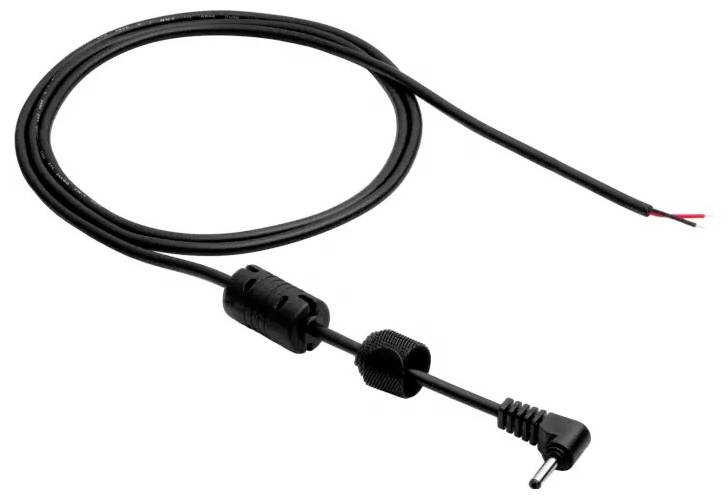

A black coaxial power cable with a right-angle plug and two exposed wires at the opposite end.

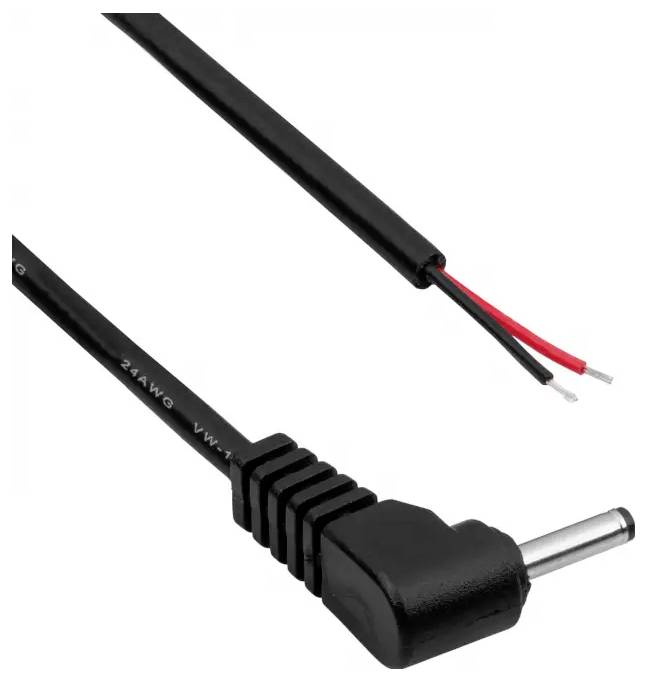

A black DC power cable with a right-angle connector and two exposed wires, red and black, at the opposite end for electrical connections.

1/2

Product type

Low power adapter cable

Type A

DC power plug, 3.0 x 1.0 mm

Type B

Open cable ends

Cable length

1.2 m

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

33 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Service cable DC AK-SC-08 3.0 x 1.0 mm (Samsung)

DC power plug, 3.0 x 1.0 mm
Open cable ends

Technical specifications

Output 60 W
Cable length: 1,2 m
Connection 1: Hollow plug 3.0 x 1.0 mm
Product color: Black
Packaging dimensions (L x B x H) 177 x 127 x 26 mm
Net weight: 50 g
Gross weight 55 g
Product dimensions (L x W x H) 145 x 56 x 24 mm
Current output: Max. 30 V
Output current: Max. 6 A
Output cable 3.0 x 1.0 mm
Manufacturing material: PVC
Length of output cable 1.2 m.

Product type: Low power adapter cable

Type A: DC power plug, 3.0 x 1.0 mm

Type B: Open cable ends

Cable length: 1.2 m

Content: 1 pc(s)

Manufacturer part #: AK-SC-08

Type: AK-SC-08

Factory colour: Black

Nominal voltage: 30 V

Nominal current: 6 A

Width: 56 mm

Length: 145 mm

Height: 24 mm

Material: PVC

: 60 W

Weight: 55 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3553685 Akyga AK-SC-08 Low power adapter cable DC power plug, 3.0 x 1.0 mm - Open cable ends 1.2 m 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553685 Akyga AK-SC-08 Low power adapter cable DC power plug, 3.0 x 1.0 mm - Open cable ends 1.2 m 1 pc(s)

Description

The Akyga® service line from the AK-SC series with determination for DC power supplies.

It is made of the robust PCV material and is equipped with a ferrite filter of high quality. The total length of the cable is 1.2m. The product will prove to be a replacement cable of a defective power supply line for the majority of laptop models available on the market. The cables ready for direct soldering ensure that the assembly is simple.

Akyga offers many lines with different parameters adapted to individual laptop models. It should be ensured that the dimensions and shape of a connector are consistent with a device.

The product is packed in the standard UniBag packaging.

This text is machine translated.
