Akyga PC power supply unit 200 W Mini-ITX No certification
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
200 W
Modular
No
Certification
No certification
Form factor
Mini-ITX
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Akyga PC power supply unit
Highlights & Details
- Power supply unit output 200 W
- PCI-Express (6+2-Pin) x
- Cable management No
- No certification
Technical specifications
- Packing: Foil
- Grounding: Yes
- Cable length: 40 cm.
- Product color: Grey
- Series:Pro
- Supply voltage 230 V
- Output: 200 W
- Manufacturing material: Galvanized steel
- Power input < 2 A.
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- MTBF: 100000 h
- Mini-ITX 1U format
- Capacity: > 70%
- 80 PLUS match: No.
- Current in line +3.3V: 8 A.
- Current in line +5V: 10 A.
- Load of line +3.3V and +5V: 76 W.
- Current in line +12V: 10 A.
- Load of the line 12V: 120 W
- Supply MPC connector: 24-pin
- Supply Molex connector: 2 pieces
- Supply SATA connector: 2 pieces
- PFC filter: Passive
- Fan size: 40 mm
- Fan rotation regulation: Automatic
- Supply cable in set: No.
- Supplying ATX12V P4: 1 pieces
- Bolts of a socket: IEC C14
- Product type
PC power supply unit
- PSU output power
200 W
- Modular
No
- Certification
No certification
- Form factor
Mini-ITX
- Factory colour
Grey
- Dim
(L x W x H) 40 x 150 x 80 mm
- Height
80 mm
- Width
150 mm
- Weight
580 g
- +12 V/DC (1)
10 A
- 5 V DC
10 A
- 24-pin
1
- 4-pin 12 V
1
- 20+4-pin.
1
- 4-pin Molex
2
- 5-pin SATA
2
- Output rating < 500 W
200 W
- Power rating
0 - 500 W
- Cable length
40 cm
- Length
40 mm
- Fan size
40 mm
- 3.3V DC
8 A
- Operating voltage
230 V / AC
- Max. temperature
50 °C
- Min. temperature
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3731383 Akyga PC power supply unit 200 W Mini-ITX No certification
User & Safety Instructions
User & Safety Instructions 3731383 Akyga PC power supply unit 200 W Mini-ITX No certification
Description

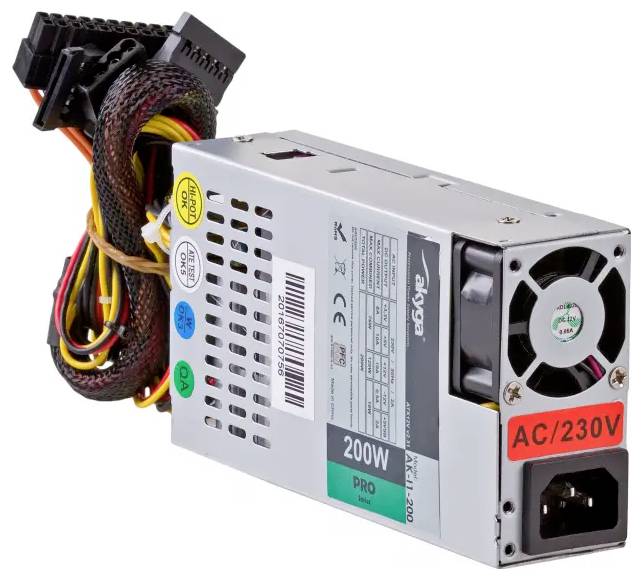

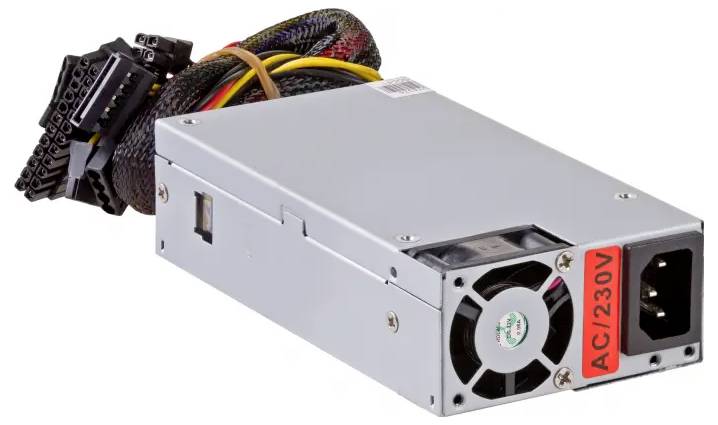

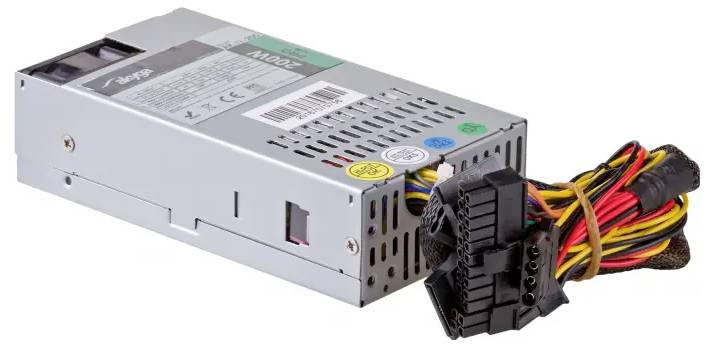

The Akyga® state-of-the-art AK-I1-200 ITX power supply from the series PRO 200W is designed for mounting in low 1U housings. It is used in ITX housings and RACK cabinets.

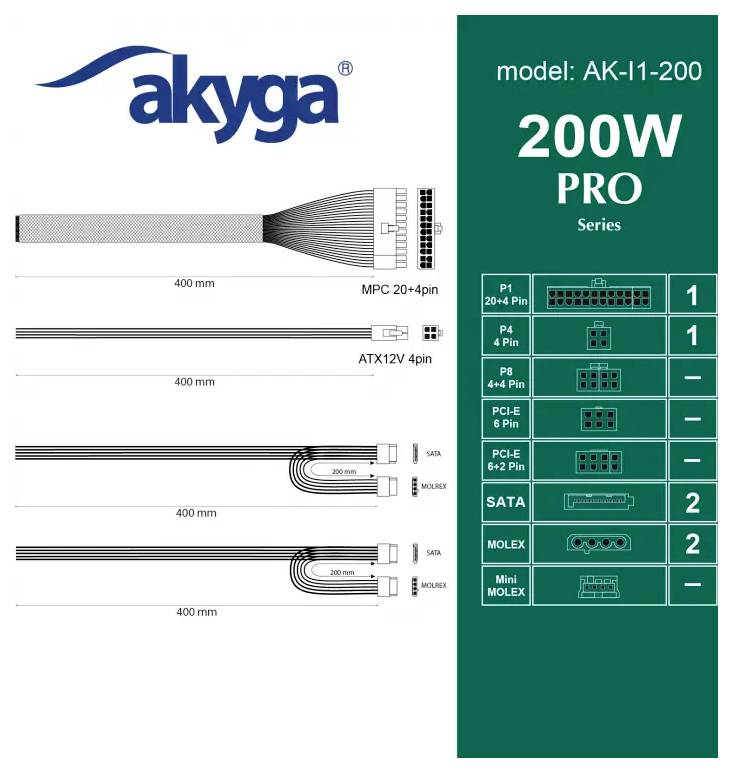

The power supply is equipped with a power supply cable P4 4-pin, 2 Molex interfaces, 2 SATA interfaces and a universal 24-pin for mainboards. Effective cooling ensures a 4 centimeter of silent ventilator with automatic rotation regulation. The fan is characterized by high operating capability of more than 70%. It is made of durable galvanized steel.
The PFC filter and a range of fuses (OVP, OCP, OPP, OTP, SCP, UVP) ensure a stable work of both the fan as well as other components. Protects against damage, such as a motherboard and a processor. The ITX power supply AK-I1-200 is a product of high quality, which fulfills ongoing requirements and conforms to modern standards.
This text is machine translated.
The power supply is equipped with a power supply cable P4 4-pin, 2 Molex interfaces, 2 SATA interfaces and a universal 24-pin for mainboards. Effective cooling ensures a 4 centimeter of silent ventilator with automatic rotation regulation. The fan is characterized by high operating capability of more than 70%. It is made of durable galvanized steel.
The PFC filter and a range of fuses (OVP, OCP, OPP, OTP, SCP, UVP) ensure a stable work of both the fan as well as other components. Protects against damage, such as a motherboard and a processor. The ITX power supply AK-I1-200 is a product of high quality, which fulfills ongoing requirements and conforms to modern standards.
This text is machine translated.
