Name: Akyga PC power supply unit 600 W ATX 80 PLUS
Brand: Akyga
SKU: 3731379
Availability: InStock

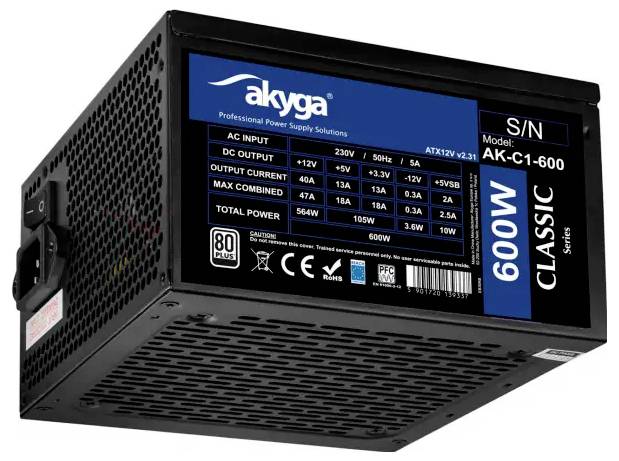

A black power supply unit with blue label featuring specifications: '600W Classic', AC input and DC output details, efficiency rating '80 Plus'.

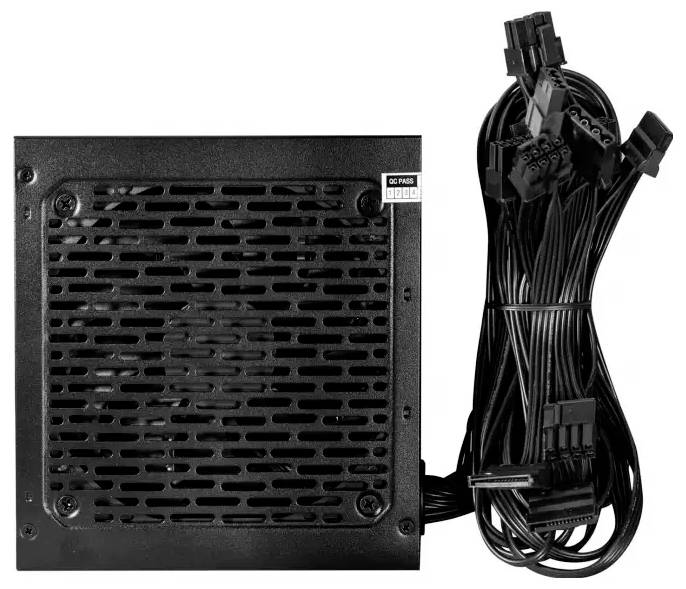

A computer power supply with a black perforated casing and cables bundled on the side, showing various connectors for internal components.

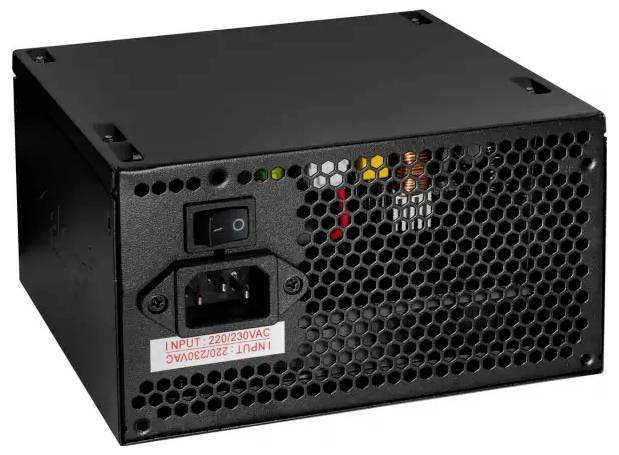

A black computer power supply unit with a power switch, a cooling vent, and text indicating 'INPUT: 220/230VAC.'

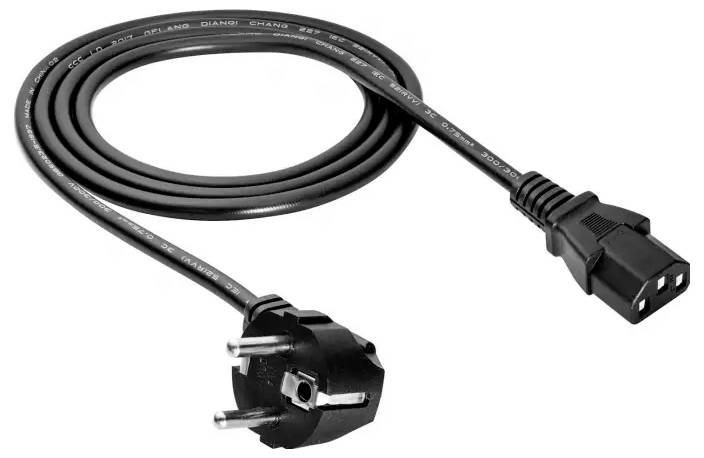

'Black power cable with a European two-pin plug on one end and an IEC connector on the other, coiled on a white background.'

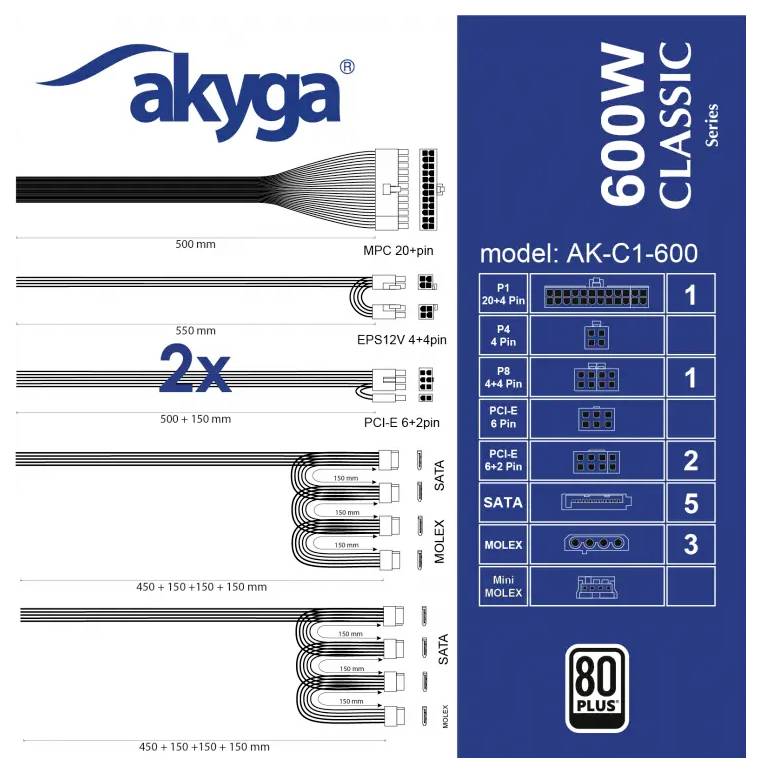

'akyga 600W CLASSIC' power supply unit connectors and cable lengths. Includes MPC 20-pin, EPS12V, PCI-E, SATA, MOLEX, Mini MOLEX. '80 PLUS' rating.

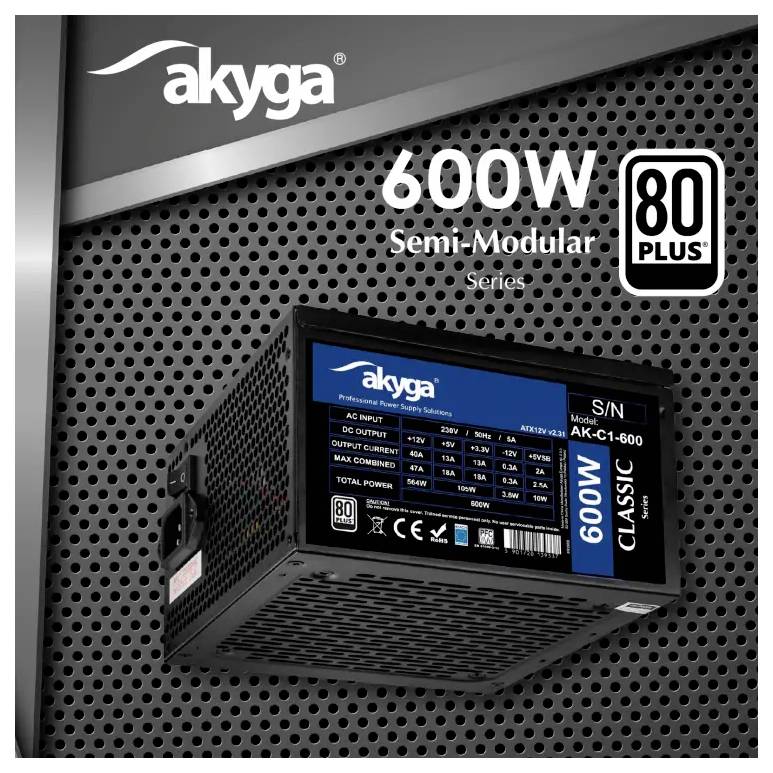

'Akyga 600W Semi-Modular Power Supply' with 80 PLUS certification, shown against a perforated metal background.

1/6

Product type

PC power supply unit

PSU output power

600 W

Modular

Certification

80 PLUS

Form factor

ATX

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Akyga PC power supply unit

Power supply unit output 600 W
PCI-Express (6+2-Pin) 2x
Cable management No
80 PLUS

Technical specifications

Packaging: EcoBox
Grounding: Yes
Cable length 50 - 95 cm
TRACK 1: C/E/F ( CEE 7/7 )
Connection 2 IEC C13
Product color: Black
Series:Classic
Supply voltage 230 V
Output: 600 W
Manufacturing material: Galvanized steel
Power input < 5 A.
Power supply line: IEC C14
Mechanical shut-off switch: Yes
OVP fuse: Yes
OCP Backup: Yes
OTP fuse: Yes
OPP fuse: Yes
SCP fuse: Yes
Format ATX 2.31
Capacity: > 80%
80 PLUS match: Yes
Current in line +3.3V: 13 A.
Current in line +5V: 13 A.
Load of line +3.3V and +5V: 105 W.
Current in line +12V: 40 A.
Supply MPC connector: 24-pin
Female EPS12V 8-pin connector: 1 pieces
Supplying PCI-E 6+2 Pin-Plugs: 2 pieces
Supply Molex connector: 3 pieces
Supply SATA connector: 5 pieces
Modular Power Supply: No.
PFC filter: Active
Fan size: 120 mm
Fan rotation regulation: Automatic
Supply cable in set: Yes

Product type: PC power supply unit

PSU output power: 600 W

Modular: No

Certification: 80 PLUS

Form factor: ATX

Factory colour: Black

Dim: (L x W x H) 85 x 150 x 145 mm

Height: 145 mm

Width: 150 mm

Weight: 1320 g

+12 V/DC (1): 40 A

5 V DC: 13 A

8-pin 12 V: 1

24-pin: 1

4-pin Molex: 3

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 2

5-pin SATA: 5

Output rating > 500 W: 600 W

Power rating: 501 - 750 W

Type A: PG plug

Type B: IEC C13 socket (cooling devices)

Length: 85 mm

No. of A connectors: 1 x

No. of B connections: 1 x

Fan size: 120 mm

3.3V DC: 13 A

Operating voltage: 230 V / AC

Max. temperature: 50 °C

Min. temperature: 5 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3731379 Akyga PC power supply unit 600 W ATX 80 PLUS

User & Safety Instructions

User & Safety Instructions 3731379 Akyga PC power supply unit 600 W ATX 80 PLUS

Description

High performance and efficiency – the adapter offers a continuous power of 600 W

Guaranteed high efficiency - corresponds to the 80 PLUS standard

Quiet operation - the 12 cm fan provides for an excellent air circulation

Easy installation – long 50-95 cm cable enables a comfortable installation inside the casing

Flat cables – simplify the cable organization inside the housing

Wide range of plugs – ensures versatility and compatibility

High-quality electronic components – guarantee longevity, stability and reliability

Elegant design - the black housing fits elegantly to most of the PC housings

Full protection – a range of protective devices ensure that the device is protected from damage
