Name: Akyga PC power supply unit 400 W ATX 80 PLUS Bronze
Brand: Akyga
SKU: 3731381
Availability: InStock

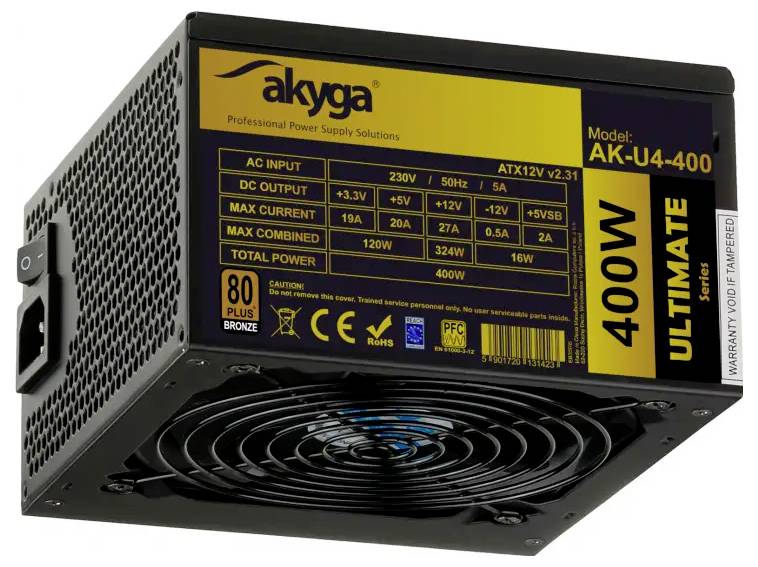

'akyga 400W Ultimate' power supply unit, model AK-U4-400. Features: 230V, 50Hz, max current 19A, with 80 Plus Bronze efficiency.

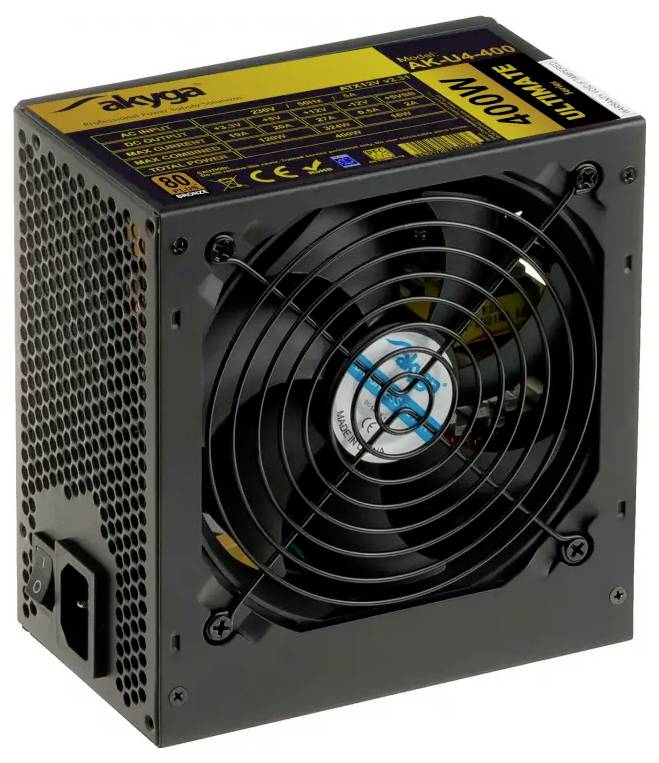

'ATX ULTRA 400W' computer power supply unit with a cooling fan, power cord socket, and technical details label on top.

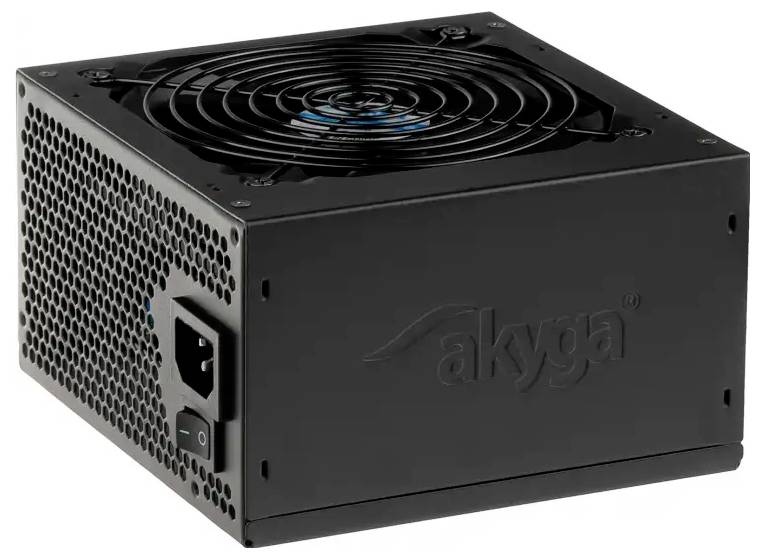

'Akyga' branded black computer power supply unit with a cooling fan on top and input connectors on the side, used for powering PCs.

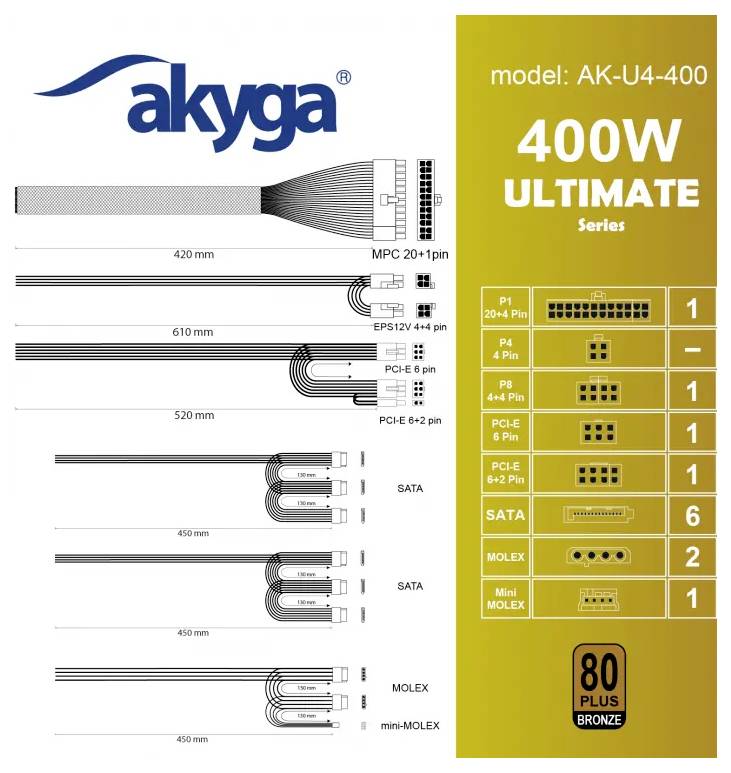

'400W ULTIMATE Series' power supply with various connectors, including ATX, EPS, PCIe, SATA, and MOLEX. 80 Plus Bronze certified.

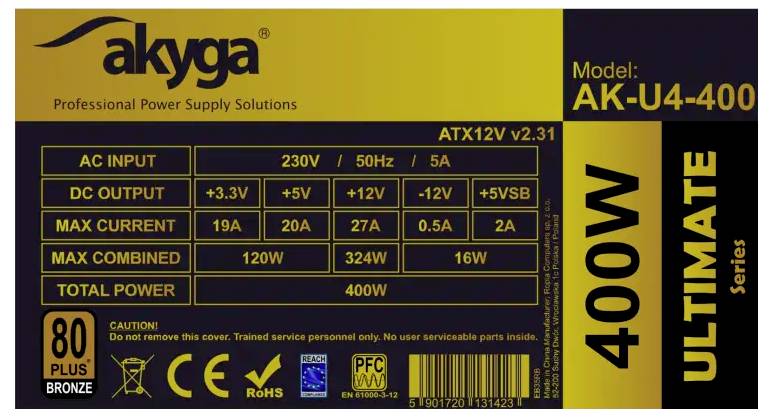

'400W Ultimate Series Power Supply Label: Model AK-U4-400. AC Input: 230V, 50Hz, 5A. DC Output: +3.3V, +5V, +12V, +12V, -12V, +5VSB. Efficiency: 80 Plus Bronze.'

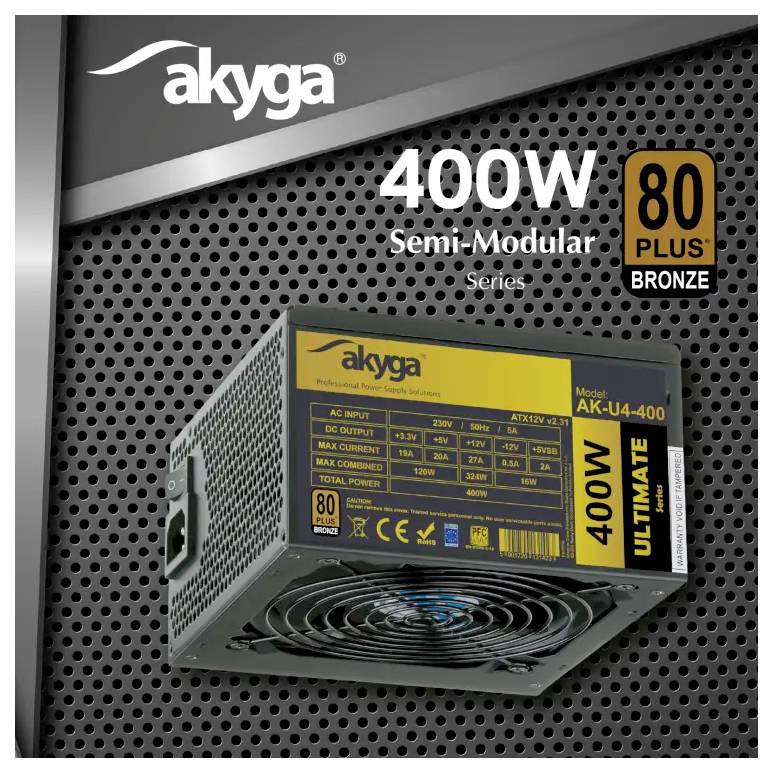

'AK-U4-400' 400W semi-modular power supply by Akyga, 80 Plus Bronze certified. Featured against a dotted black background.

1/6

Product type

PC power supply unit

PSU output power

400 W

Certification

80 PLUS Bronze

Form factor

ATX

Factory colour

Black

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 47.99 / piece)

€ 47.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Akyga PC power supply unit

Power supply unit output 400 W
PCI-Express (6+2-Pin) 1x
Cable management
80 PLUS Bronze

Technical specifications

Packaging: EcoBox
Grounding: Yes
Cable length 45 - 75 cm
TRACK 1: C/E/F ( CEE 7/7 )
Connection 2 IEC C13
Product color: Black
Series: Ultimate
Supply voltage 230 V
Output: 400 W
Manufacturing material: Galvanized steel
Power input < 5 A.
Power supply line: IEC C14
Mechanical shut-off switch: Yes
OVP fuse: Yes
OCP Backup: Yes
OTP fuse: Yes
OPP fuse: Yes
SCP fuse: Yes
MTBF: 100000 h
Format ATX 2.31
Capacity: > 80%
80 PLUS match: Yes
Current in line +3.3V: 19 A.
Current in line +5V: 20 A.
Load of line +3.3V and +5V: 120 W.
Current in line +12V: 27 A.
Load of the line 12V: 324 W
Supply MPC connector: 24-pin
Female EPS12V 8-pin connector: 1 ( 4 + 4-pin )
Supplying PCI-E 6+2 Pin-Plugs: 1 pcs
Supply Molex connector: 2 pieces
Supply SATA connector: 6 pieces
Modular Power Supply: No.
PFC filter: Active
UVP fuse: Yes
Fan size: 120 mm
Fan rotation regulation: Automatic
Supply cable in set: Yes
Supportive PCI-E 6 Pin-PLUG:1 pcs
Accessories included: Cable IEC C13
80 PLUS-certificate: Bronze
Power supply mini-Molex-plug: 1 pieces

Product type: PC power supply unit

PSU output power: 400 W

Certification: 80 PLUS Bronze

Form factor: ATX

Factory colour: Black

Dim: (L x W x H) 90 x 140 x 150 mm

Height: 150 mm

Width: 140 mm

Weight: 1.19 kg

5 V DC: 20 A

24-pin: 1

4-pin Molex: 2

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 1

6-pin PCIe: 1

5-pin SATA: 6

Power rating: 0 - 500 W

Type A: PG plug

Type B: IEC C13 socket (cooling devices)

Length: 90 mm

No. of A connectors: 1 x

No. of B connections: 1 x

Fan size: 120 mm

3.3V DC: 19 A

Operating voltage: 230 V / AC

Max. temperature: 50 °C

Min. temperature: 5 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3731381 Akyga PC power supply unit 400 W ATX 80 PLUS Bronze

User & Safety Instructions

User & Safety Instructions 3731381 Akyga PC power supply unit 400 W ATX 80 PLUS Bronze

Description

High efficiency – certified power supply with 80 PLUS Bronze-standard

Active power – the power supply delivers 400 W continuous power

Rich plug package - the product possesses a set of the necessary plugs

Quiet operation - optimal cooling when working at maximum speed is ensured by an efficient 12 cm fan

A range of protective devices – the protection of the device against damage is ensured by a series of protective devices

Easy installation – long 45 - 75 cm cable offers freedom while installing in a casing

This text is machine translated.
