109 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€
Highlights & Details

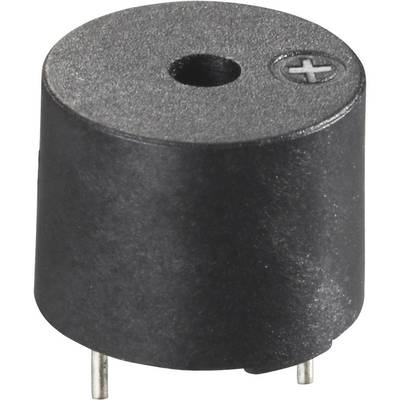

Miniature buzzer
- 85 dB
- 5 V DC
Technical specifications
- Product type
Mini buzzer
- Impedance
45 Ω
- Fastening method
PCB
- Voltage
5 V DC
- Dim
(Ø) 12 mm
- Connection
Print
- Type
Round
- Noise emission
85 dB
- Content
1 pc(s)
- (Ø)
12 mm
- Pitch
7.6 mm
- Resonance
2300 Hz
- RoHS-compliant
Yes
- Type
AL-60SP05/HT
- Type
AL-60SP05/HT
- Volume
92 -96 dB
- Current consumption
35 mA
- Operating temperature
-30 - +80 °C
- Operating voltage
4-7 V
Documents & Downloads
Datasheet
Datasheet 541347 AL-60SP05/HT Mini buzzer Noise emission: 85 dB Voltage: 5 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 541347 AL-60SP05/HT Mini buzzer Noise emission: 85 dB Voltage: 5 V DC 1 pc(s)
Description
Extremely small magnetic switch converter with control. Very loud, soldering-suitable for Reflow, Automotive temperature range.
