Buy Amphenol C016 30C006 100 12 Device Plug C16-1

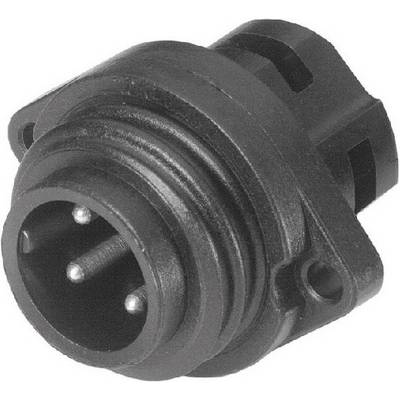

A black, round electrical connector with multiple pins, used for technical or electronic connections.

Image similar

'Technical drawing of a plug with dimensions: 38mm height, 29mm width. Two views: Front view shows four pins, side view shows internal structure.'

1/2

Image similar

Product type

Bullet connector

Connector type

Plug, mount

Total no. of pins

6 + PE

Connection

Soldering

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

88 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

Report legal concerns

Highlights & Details

Amphenol C016 30C006 100 12 Device Plug C16-1

Technical specifications

Type: C016 30C006 100 12

Product type: Bullet connector

Connector type: Plug, mount

Total no. of pins: 6 + PE

Connection: Soldering

Factory colour: Black

Content: 1 pc(s)

Max. temperature: +125 °C

Nominal current: 12 A

Min. temperature: -40 °C

Nominal current - rounded value: 12 A

Seal: Screw-type locking

Leading contact (PE): Yes

Nominal voltage: 250 V

Case material: Polyamide 6.6

Connection angle: 180°

Mounting hole diameter: 22 mm

Manufacturer part #: C016 30C006 100 12

Number of pins: 6

: IP67 (when locked)

Series: C016

Connection: Soldering

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection

Connector type

Factory colour

Total no. of pins

Nominal voltage

Amphenol C016 10H006 010 12 Bullet connector Plug, straight Total number of pins: 6 + PE Series (round connectors): C016 1 pc(s)

Item no:486716

C016 10H006 010 12

10 A

Crimp

Plug, straight

Black

6 + PE

250 V

Amphenol C016 10D006 010 12 Bullet connector Connector, straight Total number of pins: 6 + PE Series (round connectors): C016 1 pc(s)

Item no:486717

C016 10D006 010 12

16 A

Crimp

Connector, straight

Black

6 + PE

400 V

Amphenol C016 10K006 000 12 Bullet connector Plug, right angle Total number of pins: 6 + PE Series (round connectors): C016 1 pc(s)

Item no:486718

C016 10K006 000 12

8 A

Crimp

Plug, right angle

Black

6 + PE

250 V

Amphenol C016 10F006 000 12 Bullet connector Connector, right angle Total number of pins: 6 + PE Series (round connectors): C016 1 pc(s)

Item no:486719

C016 10F006 000 12

8 A

Crimp

Connector, right angle

BlackBlue

6 + PE

250 V

Amphenol C016 20H003 110 12 Bullet connector Plug, straight Total number of pins: 3 + PE Series (round connectors): C016 1 pc(s)

Item no:486723

C01620H00311012

16 A

Screws

Plug, straight

Black

3 + PE

400 V

Amphenol C016 20D003 110 12 Bullet connector Connector, straight Total number of pins: 3 + PE Series (round connectors): C016 1 pc(s)

Item no:486725

FEMALE CABLE 3+PE S SCW PLG IR

16 A

Screws

Connector, straight

Black

3 + PE

400 V

Amphenol C016 20K003 100 12 Bullet connector Plug, right angle Total number of pins: 3 + PE Series (round connectors): C016 1 pc(s)

Item no:486727

C016 20K003 100 12

16 A

Screws

Plug, right angle

Black

3 + PE

400 V

Amphenol C016 20F003 100 12 Bullet connector Connector, right angle Total number of pins: 3 + PE Series (round connectors): C016 1 pc(s)

Item no:486729

C016 20F003 100 12

16 A

Screws

Connector, right angle

Black

3 + PE

400 V

Amphenol C016 20K003 100 10 Cable Connector Angled C16-1

Item no:740013

C016 20K003 100 10

16 A

Screws

Plug, right angle

BlackBlue

3 + PE

400 V

Amphenol C016 20C003 100 12 Device Plug C16-1

Item no:740014

C016 20C003 100 12

16 A

Screws

Plug, mount

Black

3 + PE

400 V

Documents & Downloads

Datasheet

Datasheet 740001 Amphenol C016 30C006 100 12 Device Plug C16-1

Information

Information 740001 Amphenol C016 30C006 100 12 Device Plug C16-1

Description

Industrial connectors.

Scope of delivery

incl. contacts
