A grey, square electrical plug with four metal pins and a black seal. Suitable for industrial wiring.

A grey, square electrical plug with four metal pins and a black seal. Suitable for industrial wiring.

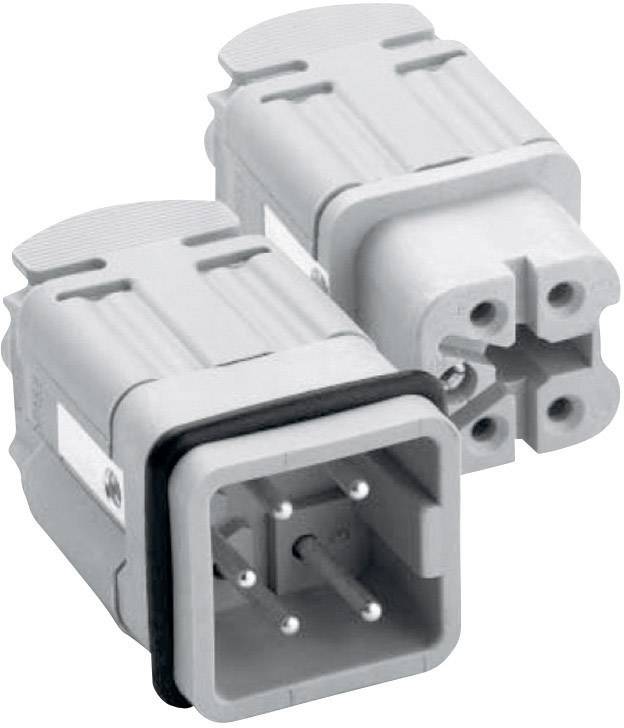

Two grey electrical plugs. One shows the round pins, the other the recesses. Suitable for industrial applications.

A rectangular grey electrical plug with four metal pins and a black border, used for industrial connections.

1/3

Image similar

Amphenol

Product type

Pin inset

Connection

Screws

Series

Heavy|mate® C146

Factory colour

Grey

Features

tin-plated contacts

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

57 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Pin inset

Series: Heavy|mate® C146

Factory colour: Grey

Features: tin-plated contacts

Number of pins: 4

Total no. of pins: 4 + PE

Core cross section (min.): 0.25 mm²

Core cross section (max.): 2.5 mm²

Test current: 14/18 A

Rated voltage: 250/400 V

Connection: Screws

Mating cycles: ≥500

Content: 1 pc(s)

Contamination level: 3

Leading contact (PE): Yes

Type: Pin insert

Core connector: 25 -2.5 mm mm²

Pins: 4 + PE

Connection: Screws

Max. temperature: +100 °C

Min. temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 736805 Amphenol C146 10A004 002 4-1 Pin Insert N/A

User & Safety Instructions

User & Safety Instructions 736805 Amphenol C146 10A004 002 4-1 Pin Insert N/A

Description

The connectors in the C 146 series, also known as heavy duty rectangular connectors, have been developed for use in harsh industrial environments.

This text is machine translated.

Description

The connectors in the C 146 series, also known as heavy duty rectangular connectors, have been developed for use in harsh industrial environments.

This text is machine translated.
