Buy Appoldt 2106 POK 5/7,5 DC / DC Power Optocoupler

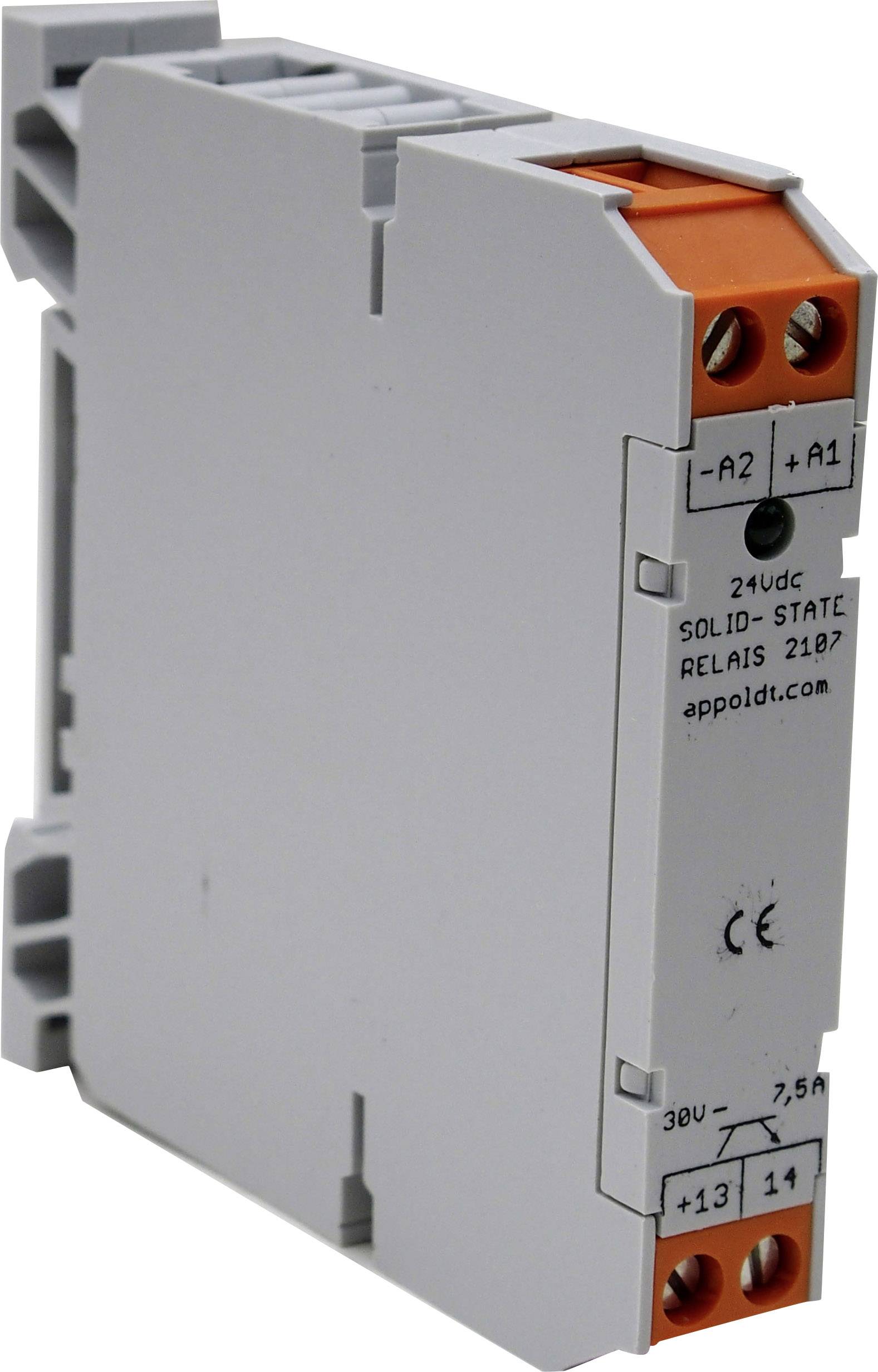

A grey solid-state relay with orange and white details, shown with connections and labels for electrical installations.

Image similar

Packaging type

Piece

Product type

SSR

Control voltage (min.)

5 V DC

Control voltage (max.)

5 V DC

Switching voltage (max.)

30 V DC

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 23.52 / piece)

€ 23.52

plus VAT.

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: SSR

Type: POK 5/7,5

Control voltage (min.): 5 V DC

Control voltage (max.): 5 V DC

Control voltage range: 5 - 5 V DC

Switching voltage (min.): 30 V DC

Switching voltage (max.): 30 V DC

Current load (max.): 7.5 A

Output voltage (max.): 30 V DC

Max. output current: 7.5 A

Min. temperature: -40 °C

Max. temperature: +60 °C

Width: 12 mm

Height: 62 mm

Depth: 62 mm

Content: 1 pc(s)

Type: DC/DC Power-Optocoupler

Output voltage: 30 V DC

Output current (details): 7.5 A

Switching voltage: 30 V DC

Type: POK 5/7.5

Current load: 7.5 A

Temperature range: (Derating must be observed) -40 - +60 °C

Documents & Downloads

Datasheet

Datasheet 502712 Appoldt 2106 POK 5/7,5 DC / DC Power Optocoupler

User & Safety Instructions

User & Safety Instructions 502712 Appoldt 2106 POK 5/7,5 DC / DC Power Optocoupler

Description

Solid state relay in a narrow, closed housing for DIN-rail TS35. Power Optocouplers are widely used as output elements of PLC control systems and are suitable for switching of resistive, capacitive and inductive loads such as solenoid valves, motors and contactors. Other advantages: very low power loss, low heat development, wear-free switching, output side-suppressor.
