Name: Arctic ACFAN00297A PC fan Black (W x H x D) 92 x 25 x 92 mm
Brand: Arctic
SKU: 3395834
Availability: InStock

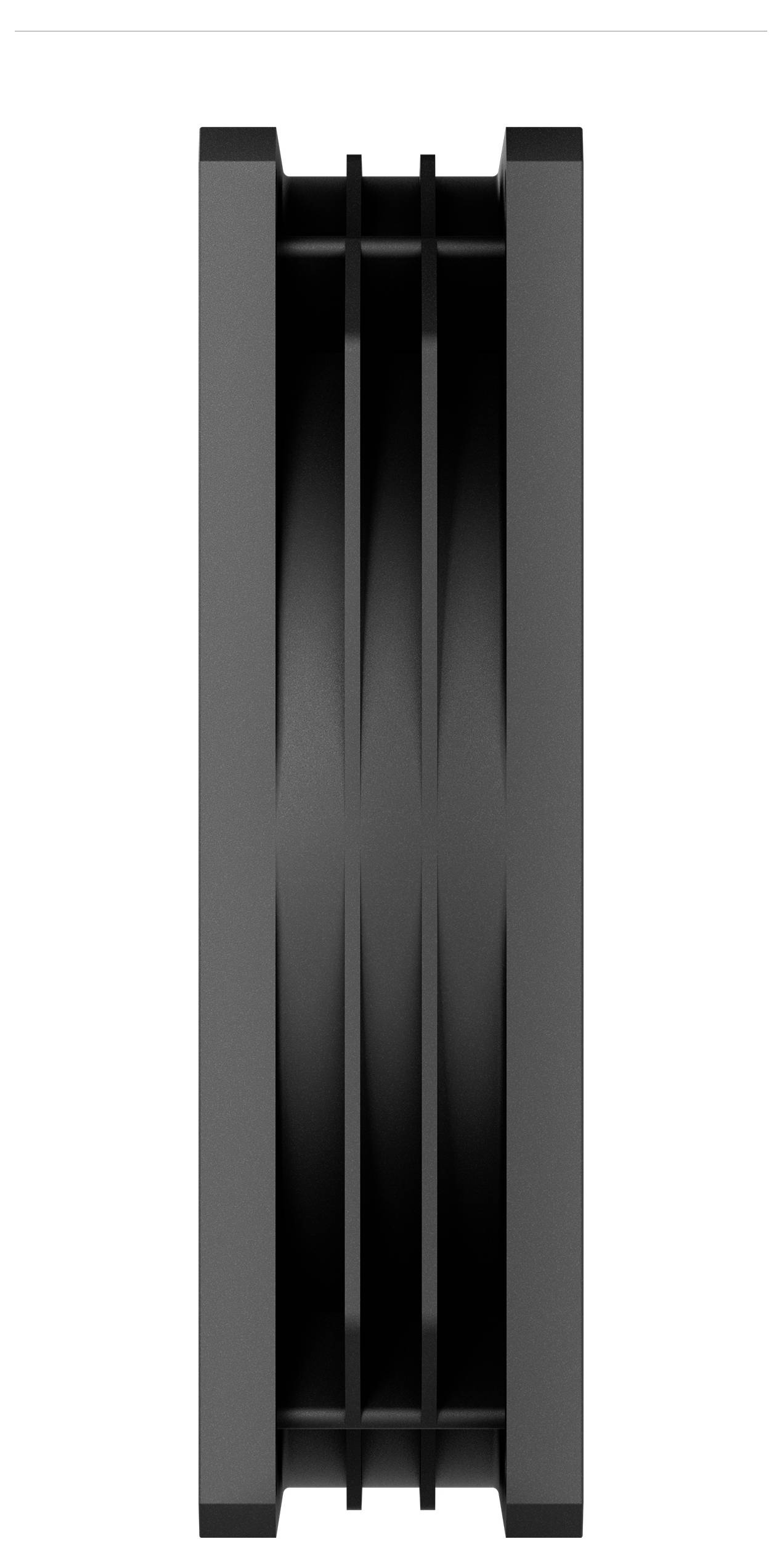

A black, rectangular object with vertical grooves, viewed from above.

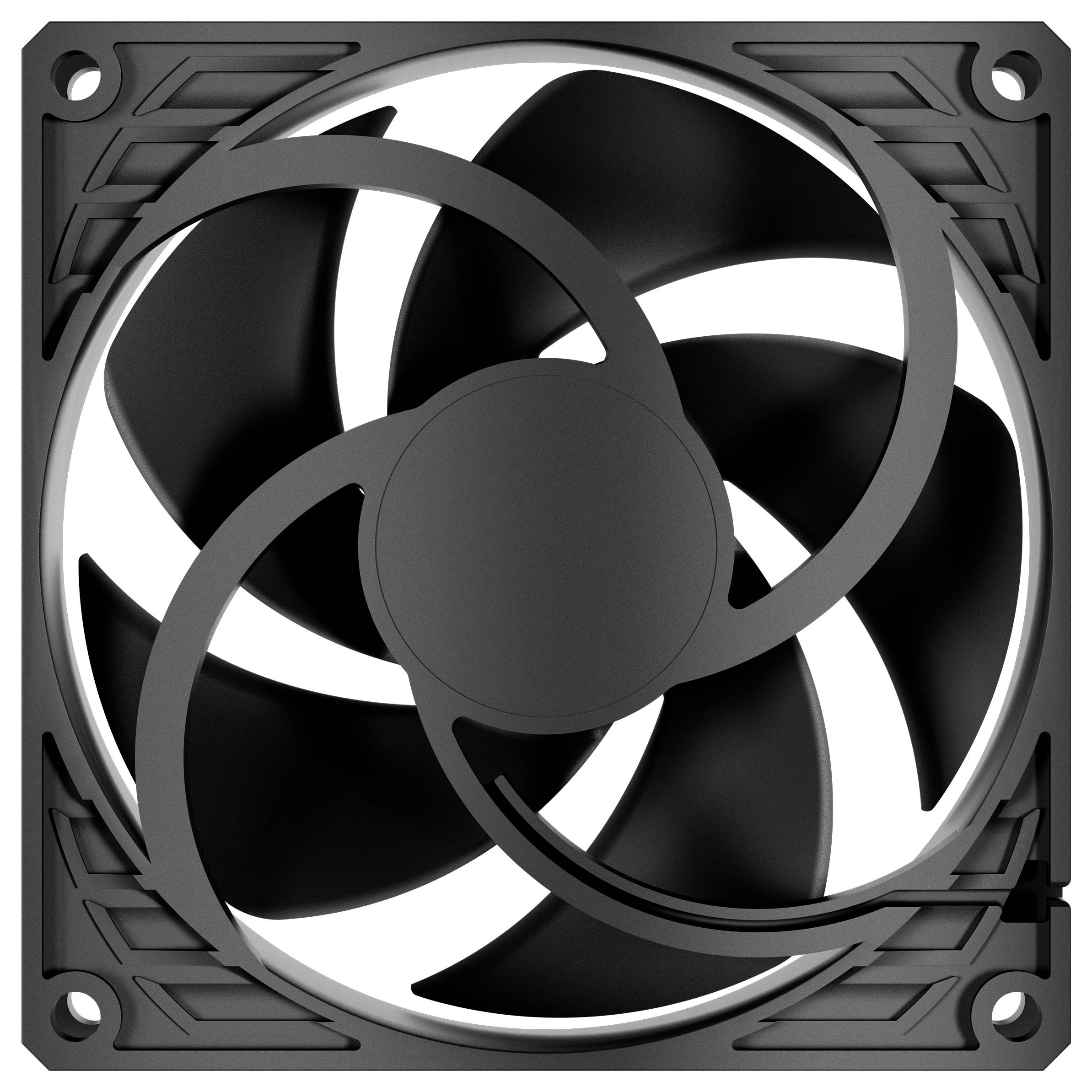

A black computer fan with multiple blades, mounted in a square frame. Suitable for cooling electronic devices.

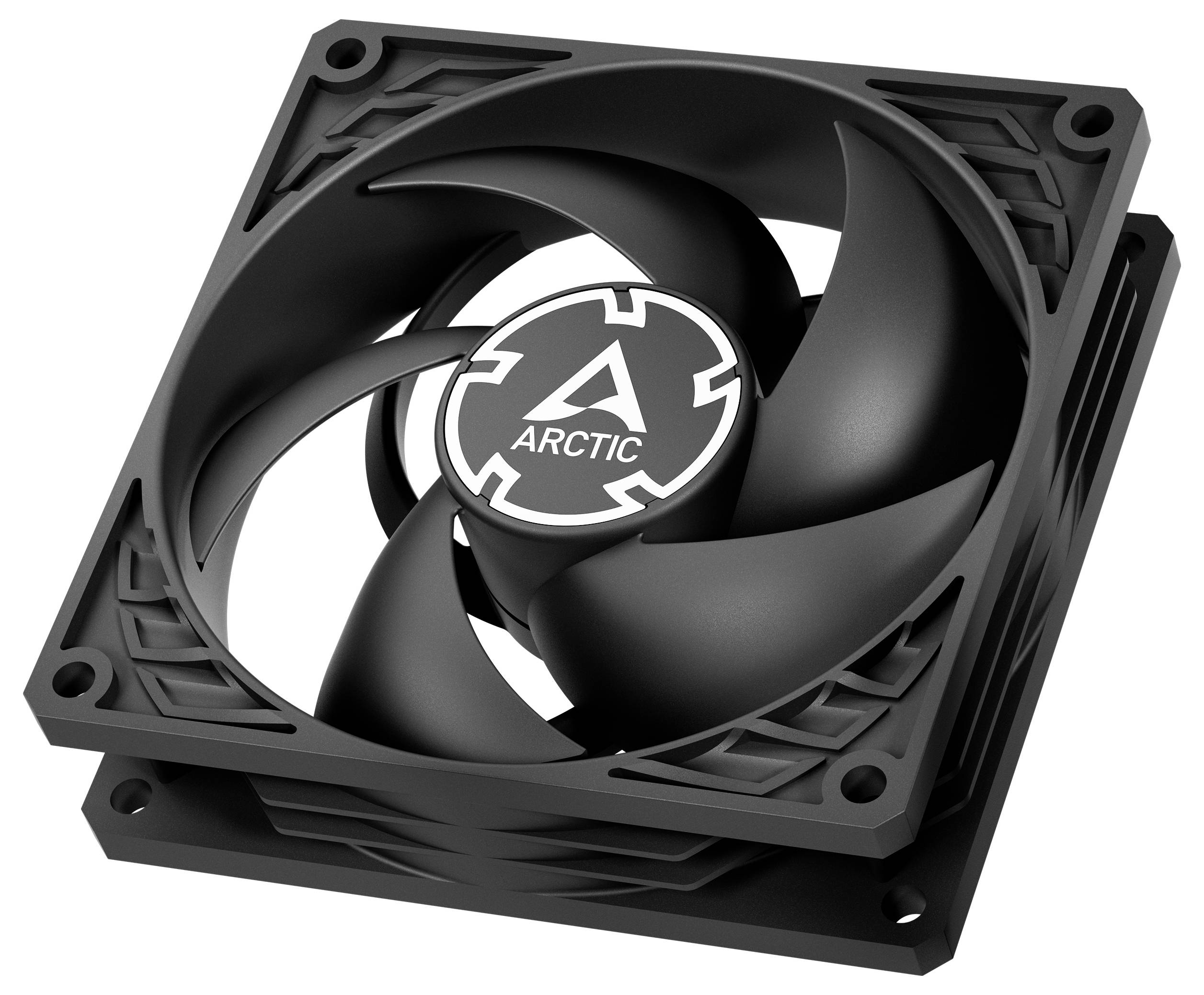

A black computer fan by Arctic with five rotor blades. Suitable for cooling in computer cases or on heatsinks.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Arctic ACFAN00297A PC fan

Powerful and very quiet
Optimised for high static pressure
Hydrodynamic plain bearing
Almost totally quiet motor

Technical specifications

Maximum air flow: 23.96 cfm
Static fan pressure 1.32 mmH2O
Operating temperature: 0 - 40 °C
Number of fans: 1 fans
Start voltage 5 V
Fans voltage: 12 V.
Fans Current 0.08 A
Cable length: 0.4 m.

Product type: PC fan

Fan size: 92 mm

Air discharge: 40.7 m³/h

Rotational speed (max.): 1900 U/min

Type of bearing: Fluid dynamic bearing

Factory colour: Black

Weight: 101 g

Width: 92 mm

Height: 25 mm

Depth: 92 mm

Dim: (W x H x D) 92 x 25 x 92 mm

Content: 1 pc(s)

Cable length: 0.4 m

Type: Fan

UKCA: yes

Fan speed (max): 1900 RPM

Fan voltage: 12 V

Fan current: 0.08 A

Operating temperature (T-T): 0 - 40 °C

Fan dimensions (W x D x H): 92 x 92 x 25 mm

Quantity per pack: 1 Stück(e)

Fan static pressure: 1.32 mmwc

Starting voltage: 5 V

Package weight: 120 g

Maximum airflow: 23.96 cfm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3395834 Arctic ACFAN00297A PC fan Black (W x H x D) 92 x 25 x 92 mm

Description

Our versatile fans are quiet and powerful. We have the right variant and size for every application and need – from 80 to 140 mm. Our fans are equipped with the latest engine technology, innovatively designed fan blades and high-quality bearings, which makes them especially durable and efficient.

Powerful and very quiet
The P9 Silent is a powerful and especially quiet 92 mm fan with a speed of 1900 rpm. It delivers a static pressure of 1.32 mmH2O, generates an air flow of 23.96 CFM and is extremely efficient with a consumption of just 0.08 A. The fan speed can be regulated via the voltage, WAS enables an individual adjustment.

Optimised for high static pressure
The P9 silent produces a focused air flow and ensures a high air flow even in case of particularly Hohem air resistance. For this reason, the P9 Silent is particularly suitable for use in heatsinks, radiators as well as in hole panels and filters.

Hydrodynamic plain bearing
The P9 Silent is equipped with ARCTIC's proven hydrodynamic plain bearing, which enables particularly quiet operation at any speed. Arctic makes no compromises in durability

Almost totally quiet motor
The motor is the main source of unwanted noise, particularly at low fan speeds. The motor used has a very low friction and vibration, which enables an almost noiseless operation and at the same time increases the longevity of the motor.

This text is machine translated.
