Name: Arduino ASX00055 Arduino add-on PCB
Brand: Arduino
SKU: 3132746
Availability: BackOrder

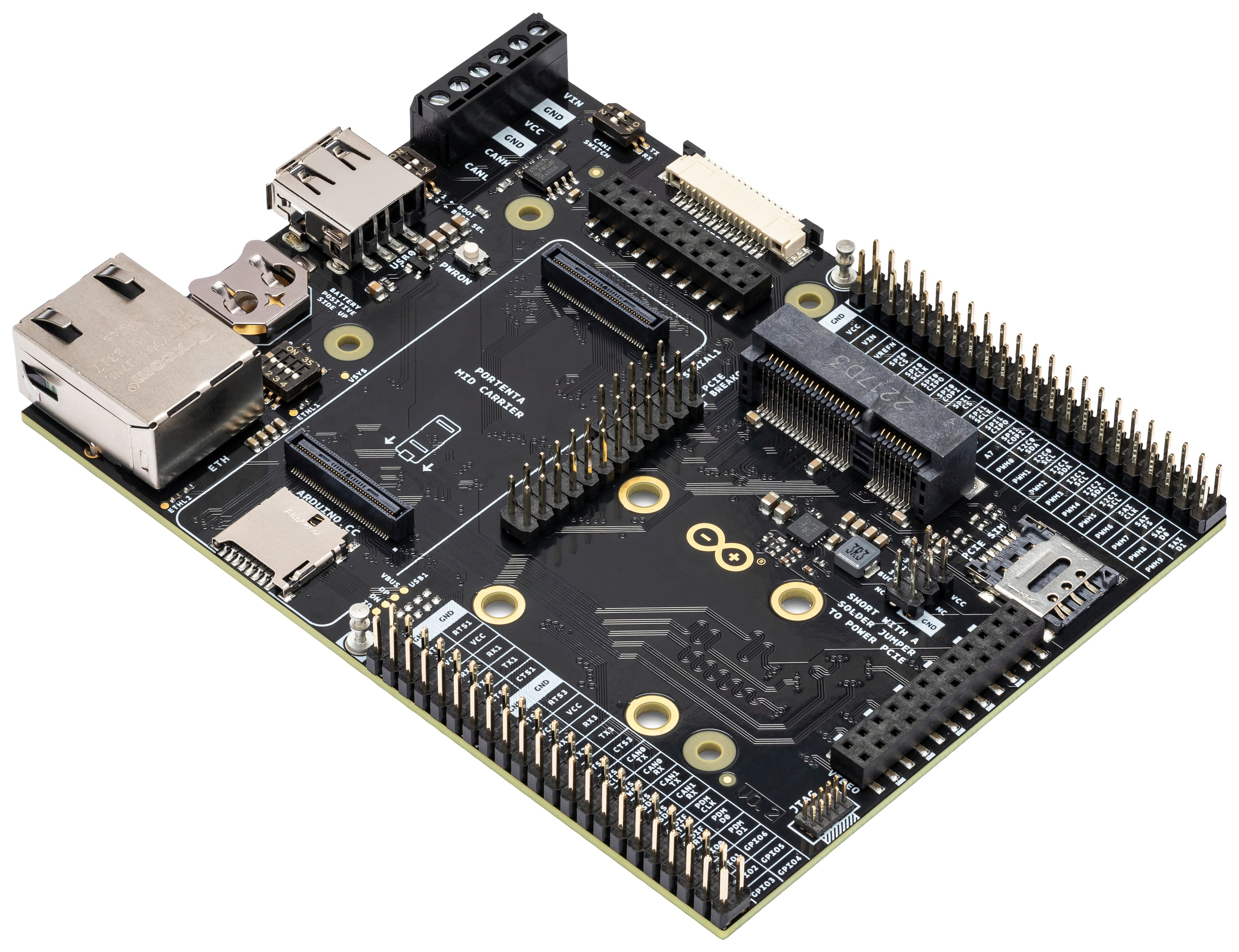

Arduino development board with various ports and components for hardware development and prototyping.

Arduino Pro Portenta H7 and carrier board in an opened black packaging. Electronic components and connections are visible.

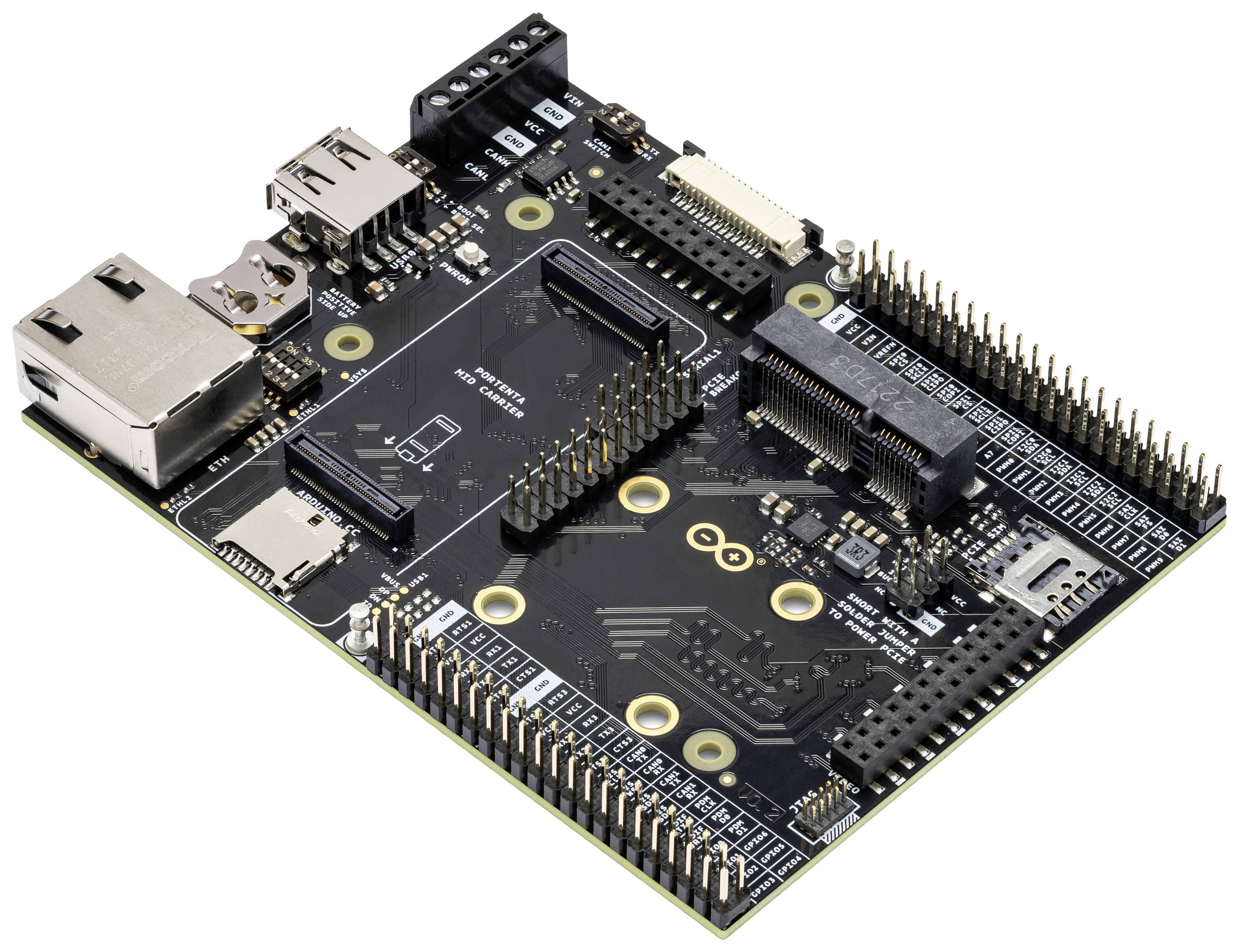

An electronic circuit board with connectors and components, labelled 'Portenta Max Carrier', displays various circuits and ports.

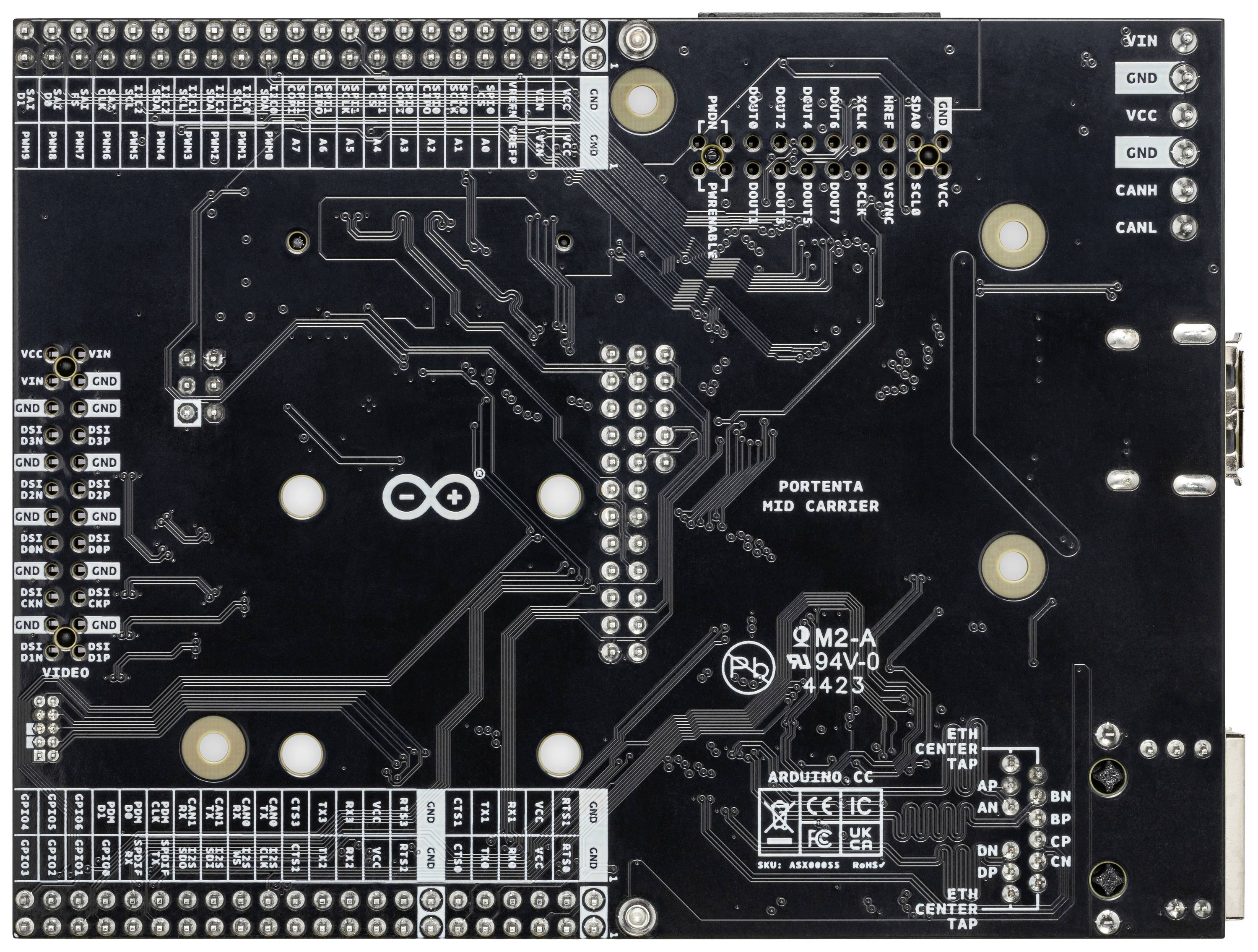

Back of an electronic circuit board with various connectors, circuit traces, and marked areas for component mounting.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Arduino Portenta mid-carrier

Connectors
High-density connectors compatible with Porta products
1x USB-A socket
1x Gigabit Ethernet connection (RJ45)
1x CAN with built-in transceiver
1x CAN without transceiver
1x mPCIe connection
1x MIPI camera connection
1x Arducam camera connection
1x MicroSD card slot
1x RTC LiPo battery slot
1x Giga Display Shield connection

Technical specifications

Operating temperature: -40 °C to +85 °C

Product type: Arduino add-on PCB

Length: 86.5 mm

Width: 114 mm

Compatible with: Arduino

Interfaces: Ethernet

Series: Portenta

Tool type: Expansion board

Internal ports: LAN (10/100/1000)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3132746 Arduino ASX00055 Arduino add-on PCB

User & Safety Instructions

User & Safety Instructions 3132746 Arduino ASX00055 Arduino add-on PCB

Description

Take advantage of all the possibilities offered by the Portenta Mid Carrier boards in the Portenta Family. It makes all high-density signals easily accessible via special headers, enabling fast and smooth prototyping. The Portenta Mid Carrier provides access to multiple peripherals, including two CAN lines, Ethernet, microSD, USB, and camera and Giga Display Shield interface. Dedicated debug pins and RTC battery backup further simplify development.

This text is machine translated.

Features

Great prototyping tool for scalable Portenta applications
Fast access to all high-density Portenta signals
Expand existing projects with a wide range of connectivity options thanks to Ethernet and mPCIe ports
Use the built-in MicroSD card slot to boot from an external source
Easy interaction with actuators via onboard CAN lines (with onboard or off-board transceiver)
Development of industrial image processing solutions using onboard camera connections
Simple reference design for development of your own hardware
