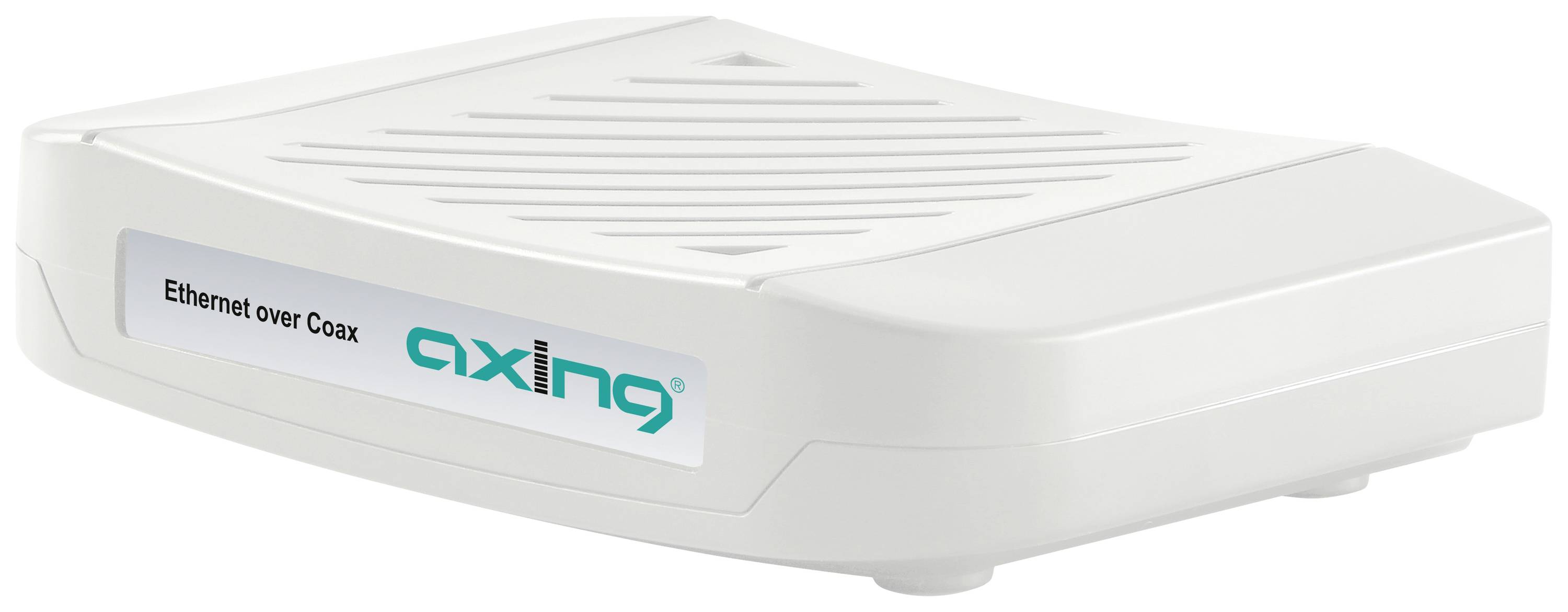

Small, white device with 'Ethernet over Coax' printed on the front. Used for establishing an internet connection via coaxial cable.

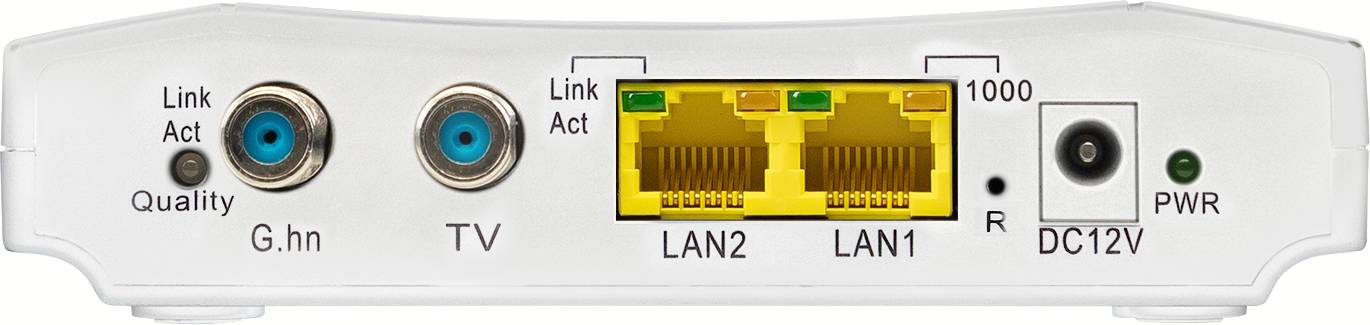

Back of a network adapter with connections: G.hn, TV, two LAN ports, power supply socket. LEDs indicate link and activity status.

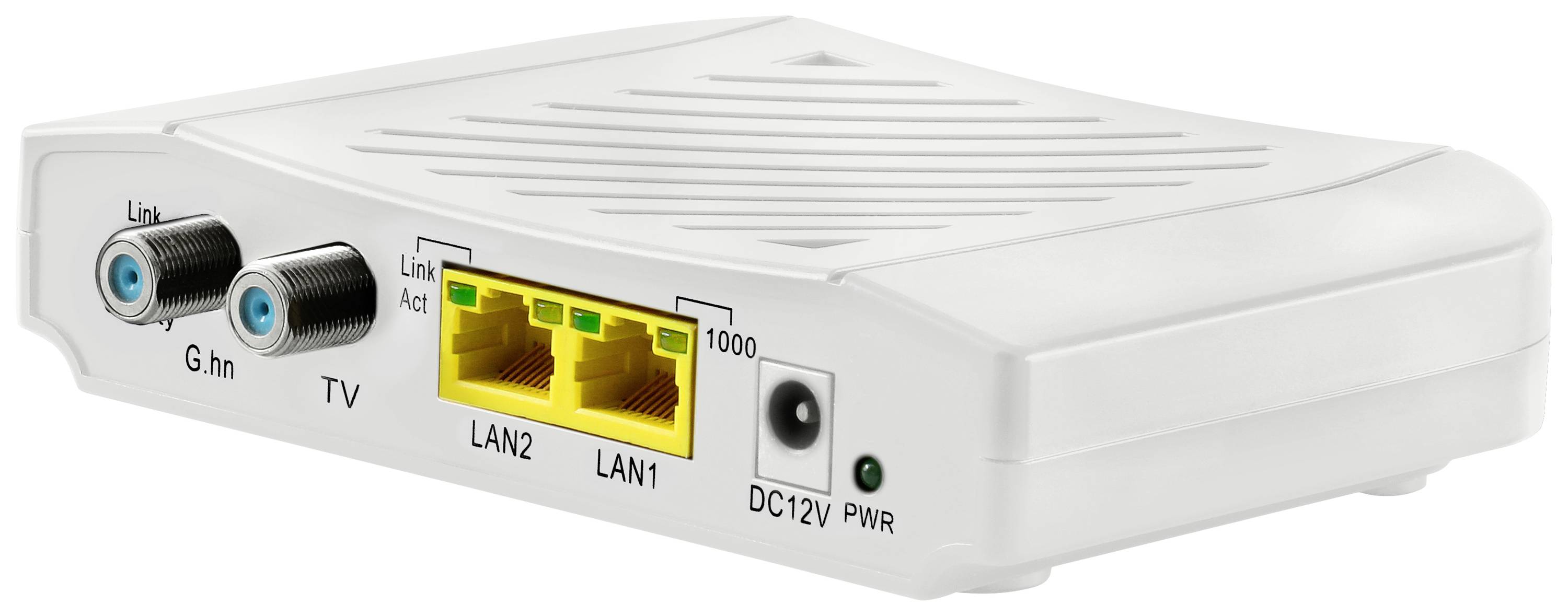

A white network device with two yellow Ethernet ports (LAN1, LAN2), a TV connection, and a power socket (DC12V PWR).

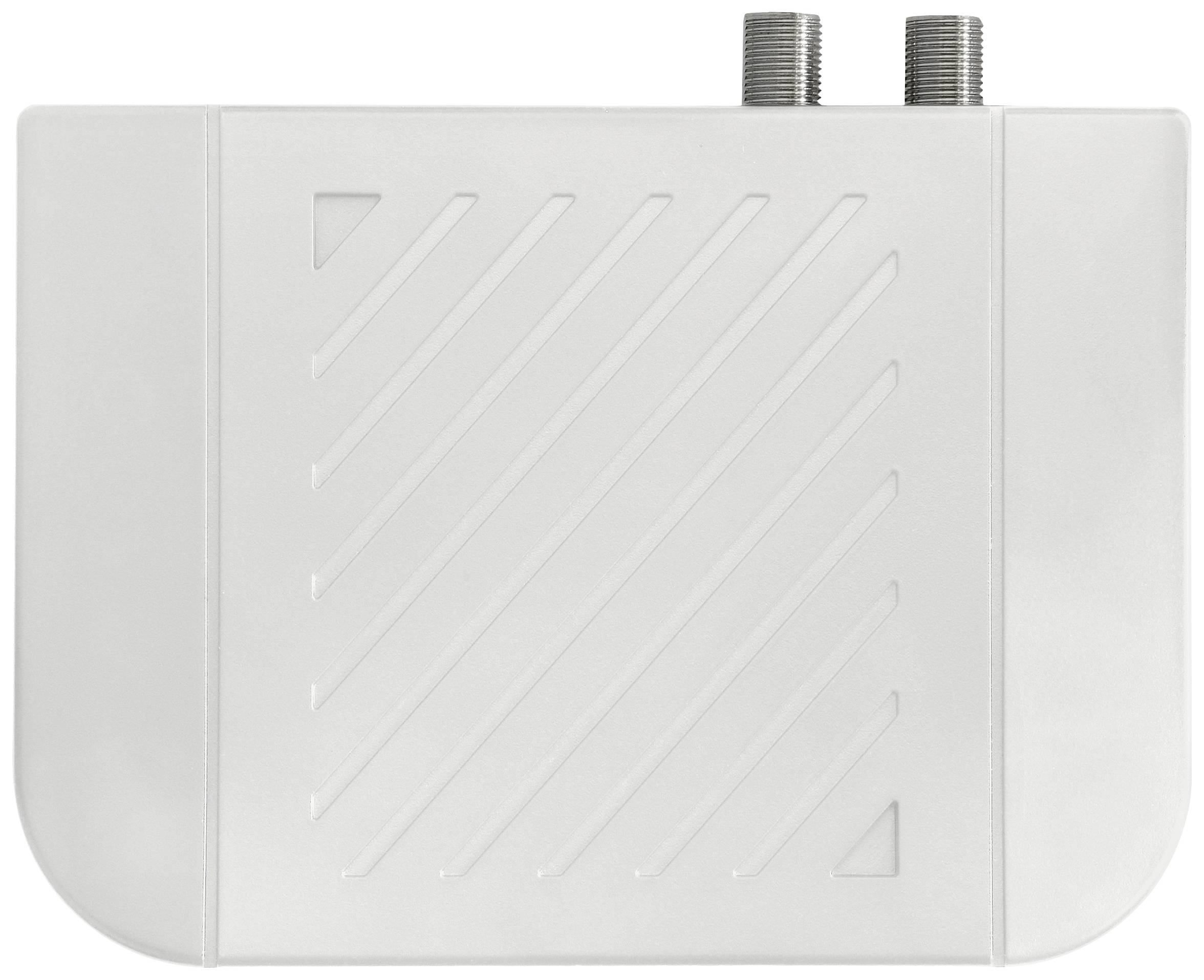

Axing Peer-to-Peer 720 Ethernet over Coax IP feeder-3

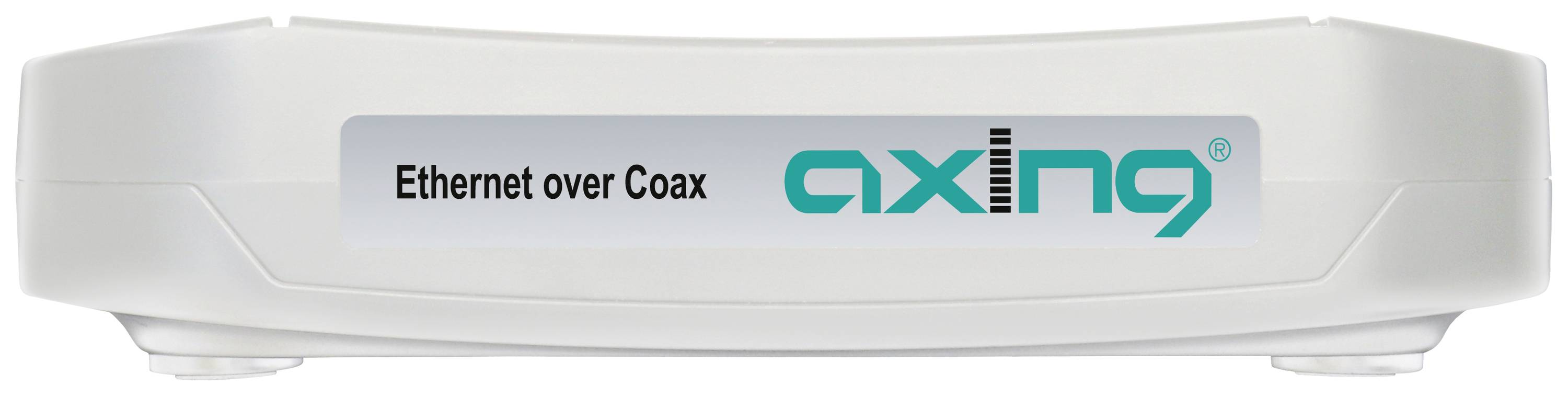

A white device by Axing for 'Ethernet over Coax'.<br><br>Note: This is already essentially in British English, so no significant changes were required.

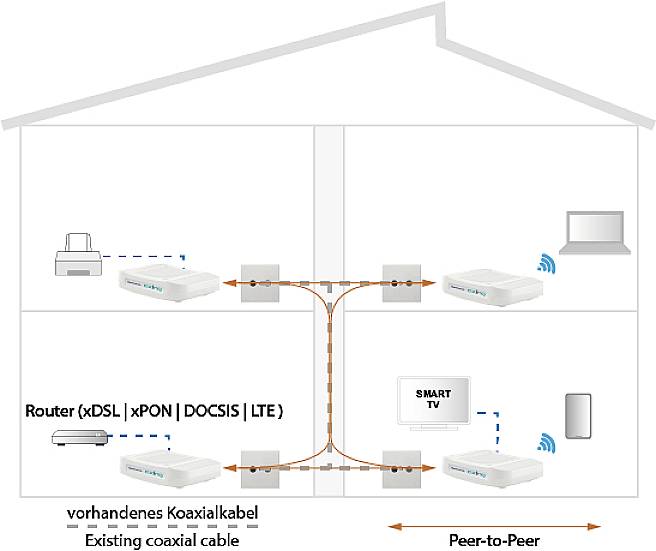

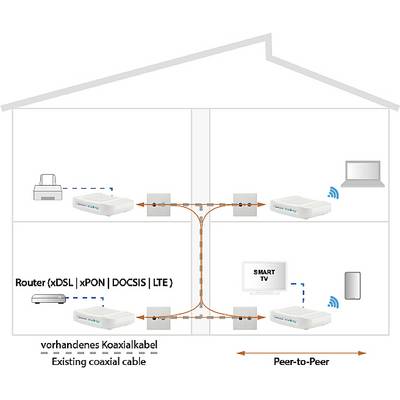

Diagram of a Home Network: A router is connected via coaxial cable to two devices. Television and laptop are wirelessly connected.

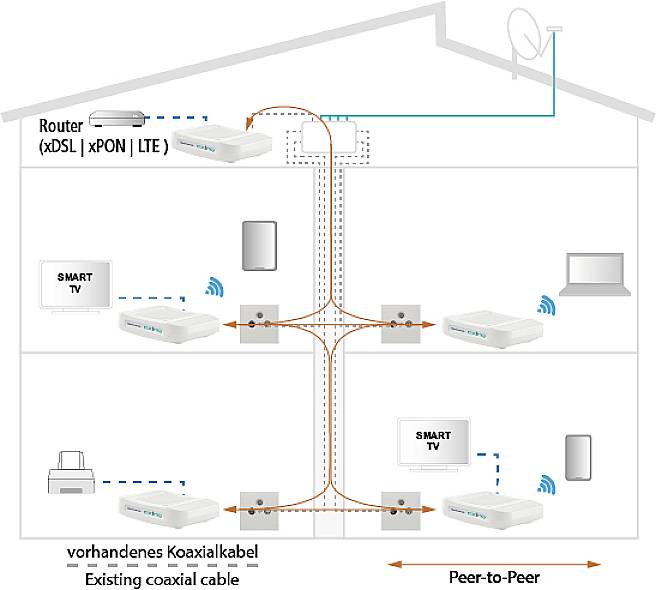

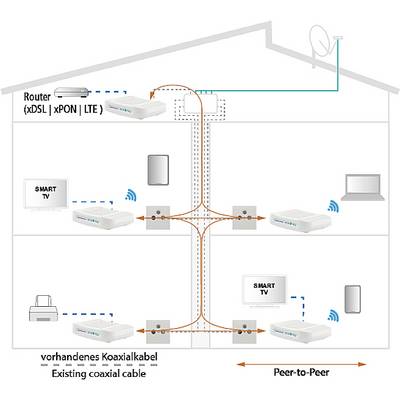

'Network diagram in a building: Router connects to various devices such as smart TVs and a printer via coaxial cable.'

Axing Peer-to-Peer 720 Ethernet over Coax IP feeder-7

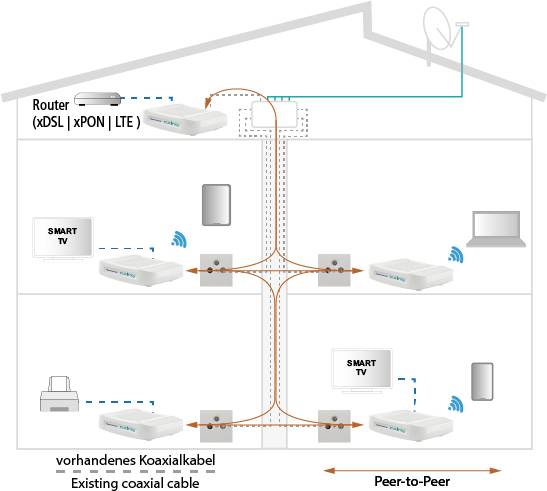

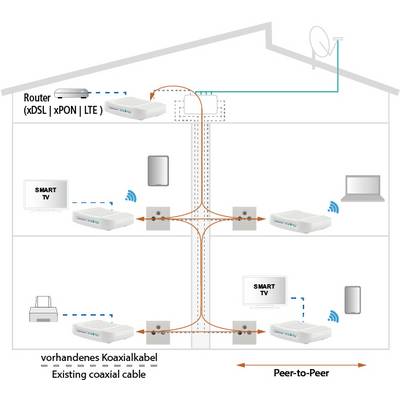

'Diagram of a house with coaxial cables: Router connects to multiple Smart TVs and devices via existing coaxial cables.'

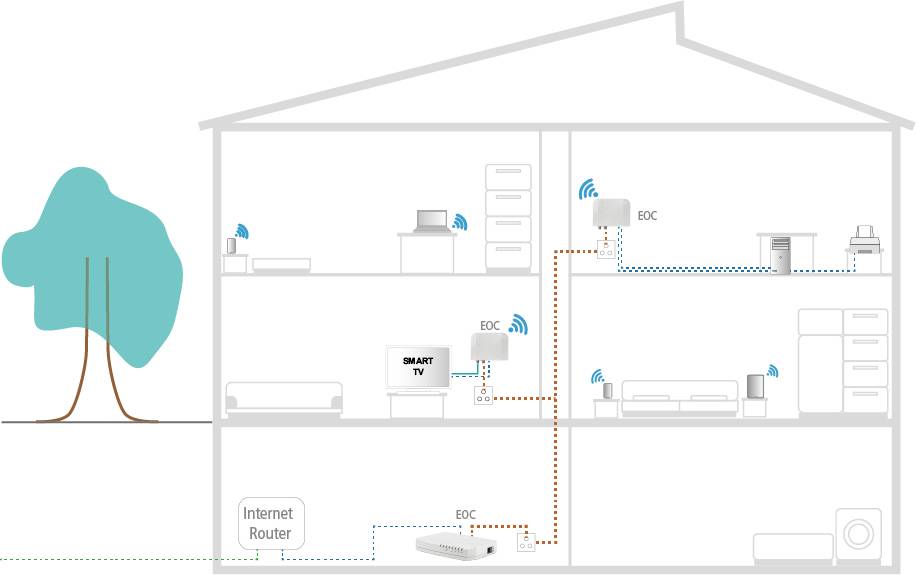

Schematic representation of a house with an EOC network. EOC devices connect wirelessly through the internet router in multiple rooms.

1/10

Datasheet (PDF)

Dispatches on Wed, 29 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Highlights & Details

Ethernet over coax Peer-to-Peer 720 Mbps

For feeding the IP-signals in the available coaxial cable-networks128 bit AES-encryptionNet data rate 720 Mbps (PHY)

Technical specifications

Frequency range data transfer 5 - 65 MHzFrequency range TV bypass 258 - 1218 MHzMaximum permitted damping in the coaxial network 77 dBTransmission level in coaxial network 113 dBµV ± 1dBStandard ITU-T G.9960/G.9961 G.HN over coaxNet data rate (PHY) 720 Mbps128-bit AES encryptionMax. Number of devices in EOC network 16Connections (G.hn | TV) 2x F-socketEthernet-Connections (LAN) 2x RJ 45Ethernet-standards IEEE 802.3u 100BaseT Fast Ethernet, IEEE 802.3ab 1000BaseT Gigabit Ethernet

Participants: 2

Frequency range: 5 - 1218 MHz

Dim: (W x H x D) 130 x 32 x 95 mm

Content: 1 pc(s)

Depth: 95 mm

Height: 32 mm

Width: 130 mm

Operating voltage: 100 - 240 V

Product type: Ethernet over Coax IP feeder

Documents & Downloads

Datasheet

Datasheet 2685025 Axing Peer-to-Peer 720 Ethernet over Coax IP feeder

User & Safety Instructions

User & Safety Instructions 2685025 Axing Peer-to-Peer 720 Ethernet over Coax IP feeder

Information

Information 2685025 Axing Peer-to-Peer 720 Ethernet over Coax IP feeder

Description

Ethernet over Coax - as simple as a switch!The EOC-devices develop by the help of the G.hn standard an encrypted Ethernet over coaxial network via the coaxial cable of the TV cabling (television and radio are of course transmitted). This EOC network acts like a large, house-distributed switch (in the example with 8 ports). Two Ethernet-enabled devices (PCs, notebooks, servers, printers, smart TVs and much more) can be connected to each EOC device. In addition, the EOC 2-31 is equipped with WLAN. Typical scenarios may be residential buildings with satellite television, law firms, doctors' offices or offices where LAN wiring is not possible/desired.The EOC 1-31 and EOC 2-31 types are backwards compatible with the 2 devices. Generation EOC 1-11 and EOC 2-11 because they use the same return channel range from 5 to 65 MHz. With a net data rate of 720 Mbps (PHY), you'll achieve a high data throughput.

This text is machine translated.

Features

For feeding the IP-signals in the available coaxial cable-networksData transmission range 5...65 MHzNet data rate 720 Mbps (PHY)128 bit AES-encryption2x RJ 45 connectionsIncl. External switched power supplyLED function display

Scope of delivery

IP-supply
CAT5 Ethernet-cable
Power supply unit
User manual.
