Buy Kathrein EXI 02 LAN Ethernet over Coax IP feeder 900 Mbps

A white digital receiver with 'KATHREIN' printed on the front. It has multiple connections and a power switch.

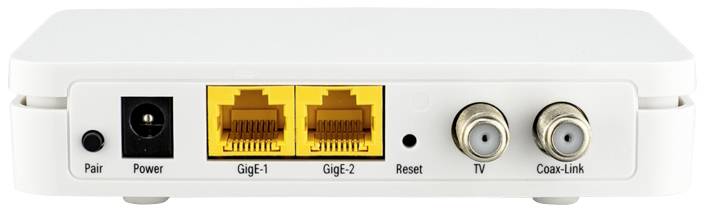

A router with connections for power, two Gigabit Ethernet ports, a reset button, TV and coaxial connections on the back.

A white network box viewed from the back with connections: Power, GigE-2, Reset, TV. Three cables are connected.

White electronic device with 'Kathrein' labelling, three symbols and a power switch on the front.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 88.23 / piece)

€ 88.23

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

EXI 02 LAN G.hn Modem

G.hn Modem for the Kathrein Ethernet over coaxial system "K-LAN 2.4"Use existing terrestrial coaxial distribution for creating a home network. No need to lay network cablesImproved data throughput of up to 2 Gbps

Technical specifications

Product type: Ethernet over Coax IP feeder

Participants: 2

Frequency range: 2 - 200 MHz

SAT damping: 2 dB

Interfaces: Gigabit LAN (1 Gbps)

Current consumption: 230V.

Dim: (W x H x D) 130 x 29 x 92 mm

Weight: 125 g

Operating voltage: 230 V

Content: 1 pc(s)

Width: 130 mm

Height: 29 mm

Depth: 92 mm

Bit rate (max.): 900 Mbps

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2793726 Kathrein EXI 02 LAN Ethernet over Coax IP feeder 900 Mbps

User & Safety Instructions

User & Safety Instructions 2793726 Kathrein EXI 02 LAN Ethernet over Coax IP feeder 900 Mbps

Description

G.hn modem for the Kathrein Ethernet over coaxial system "K-LAN 2.4"; data throughput of up to 2 Gbit/s; 2x Ethernet, 2x F-connectionsUse of the existing terrestrial coax distribution in order to create a home network, no network cable needs to be laid, data throughput of up to 2 Gbit/s, 16 modems can be connected simultaneously within the network, integrated, highly selective frequency separating filter in order to prevent disturbances for example in DVB-T and SAT signals, Integrated switch for connecting 2 network devices, coaxial range up to 700 m, supports IPv6 and IPv4, not compatible with the EXI 01 series modems

This text is machine translated.

Features

16 modems can be connected simultaneously within the networkIntegrated, highly selective frequency separating filter to prevent disturbances for example in DVB-T and SAT signalsIntegrated switch for connecting 2 network devicesCoax range up to 700 mSupports IPv6 and IPv4Not compatible with the EXI 01 Series modems

Scope of delivery

Efficient plug-in power supply
CAT6 network cable
User manual.
