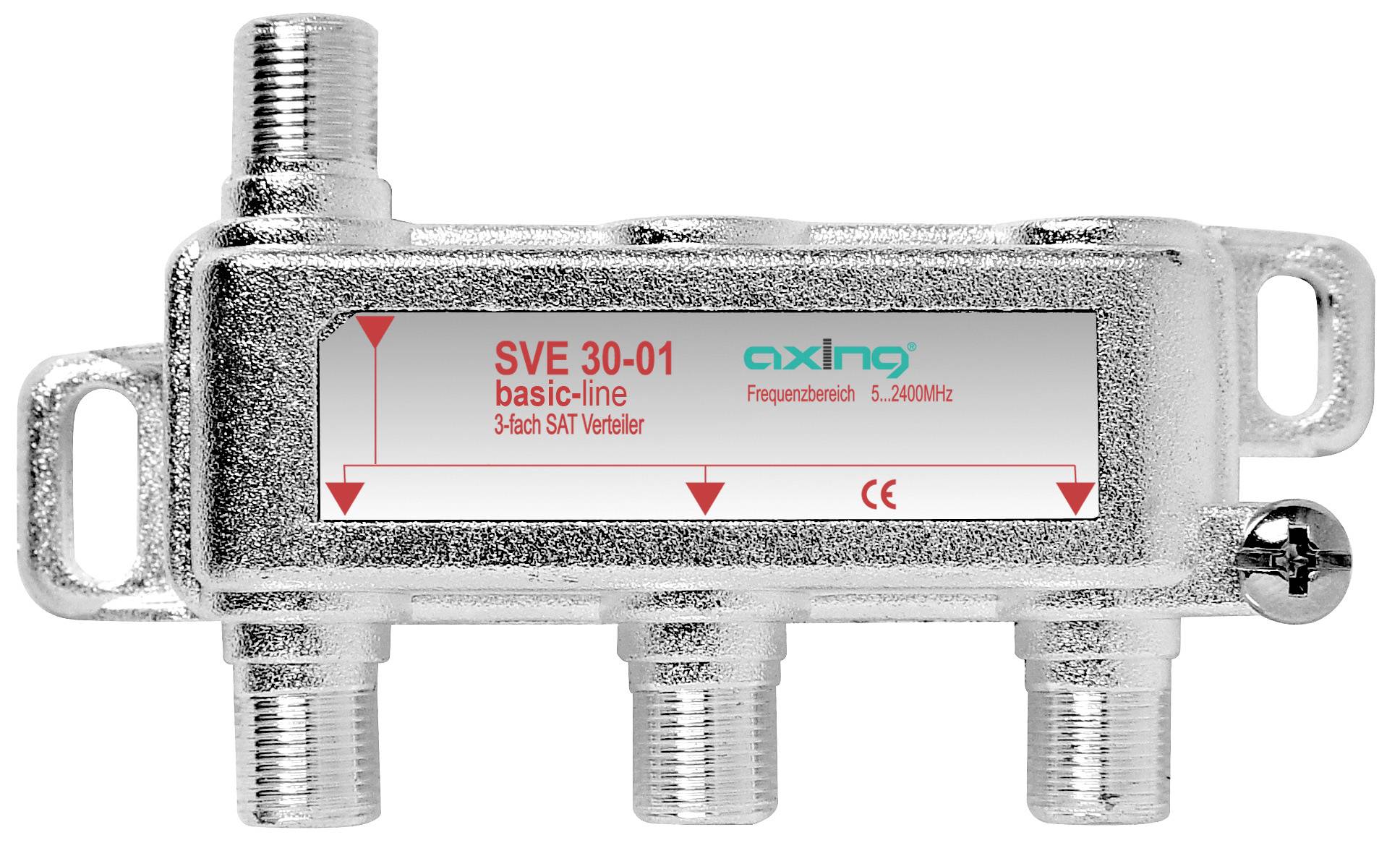

Axing SAT splitter 3-way 5 - 2400 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
3
4% = € 0.26
€ 6.03
5
6% = € 0.37
€ 5.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Only 2 Piece(s) available
Axing SVE03001 cable splitter or combination cable splitter silver
Highlights & Details
- Cable splitter
- 75 Ohm
- 5 - 2400 MHz
- silver
Technical specifications
- Product type
SAT splitter
- Frequency range
5 - 2400 MHz
- Type
3-way
- Dim
(W x H x D) 77 x 52 x 17 mm
- Width
77 mm
- Height
52 mm
- Factory colour
Silver
- Depth
17 mm
- Impedance
75 Ω
- Type
Cable splitter
- Quantity per pack
1 Stück(e)
- Frequency range
5 - 2400 MHz
Documents & Downloads
Datasheet
Datasheet 3779557 Axing SAT splitter 3-way 5 - 2400 MHz
User & Safety Instructions
User & Safety Instructions 3779557 Axing SAT splitter 3-way 5 - 2400 MHz
Description
- DC diode-isolated
- DC pass-through
- Gold plated contacts (except SVE 8-01)
- Removable mounting base
This text is machine translated.
- DC pass-through
- Gold plated contacts (except SVE 8-01)
- Removable mounting base
This text is machine translated.
Features
- Distributor for coaxial cable connections, highly shielded according to class A.
- Suitable for FM radio, digital radio, DVB-T, cable television and satellite television
- Direct-voltage passage for SAT and DVB-T antennas Remote feed
- Forward for SAT control commands like DiSEqC and EN50494 / 50607, diode-decoupled
- F-sockets, clamping screw for equipotential bonding
