Axing TVS 9 Multiband amplifier TV, FM 10 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Only 6 Piece(s) available
TVS 9 Broadband socket amplifier
Highlights & Details
- Frequency range 47 - 862 MHz
- Amplification 2 x 5 dB für R + TV, 1 x 15 dB for R/TV
- Output level 94 dBµV
Technical specifications
- Frequency range
47 - 862 MHz
- Product type
Multiband amplifier
- Suitable for
TV
FM
- Operating voltage
230 V
- Amplification
10 dB
- Noise factor
≤ 7 dB
- Output level
96 dBµV
- Dim
(W x H x D) 80 x 140 x 60 mm
- Width
80 mm
- Height
140 mm
- Depth
60 mm
- Halogen-free
Yes
- Gain
2 x 5 dB for R + TV u. 1 x 15 dB for R/TV dB
Documents & Downloads
Datasheet
Datasheet 285676 Axing TVS 9 Multiband amplifier TV, FM 10 dB
Description

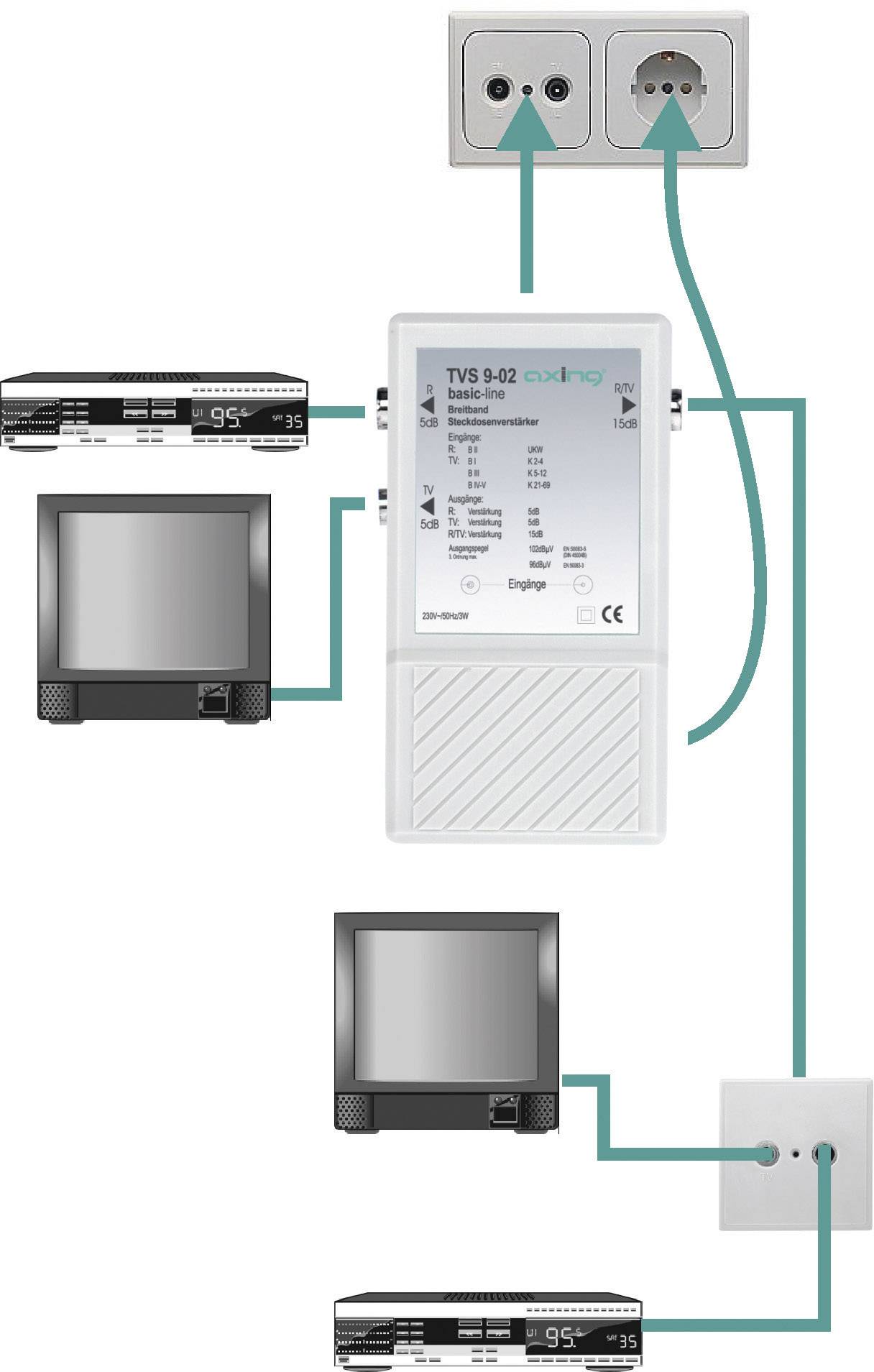

For plugging in an antenna socket with integrated power supply.
Features
- Outputs 1 x TV, 1 x R, 1 x R/TV. Radio/TV 15 dB
- Max. output voltage, interference products 3rd order 60 dB KMA 102 dBµV.
Scope of delivery
- Broadband socket amplifier TVS 9-02
