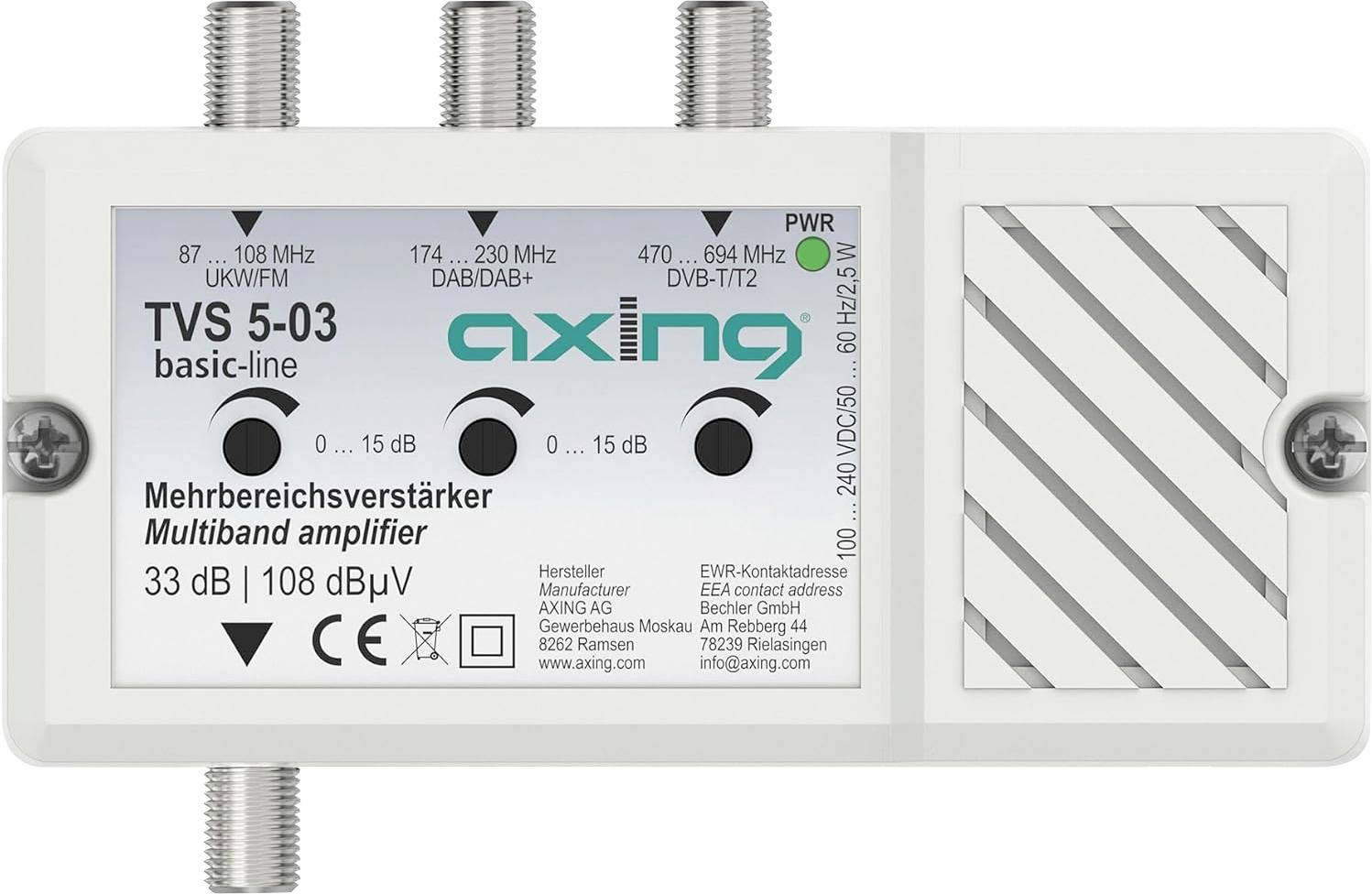

Axing TVS00503 Multiband amplifier DAB+, DVB-T, FM 33 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Highlights & Details
TVS 5-03 Multi-range amplifier 33 dB, 108 dBµV
- Amplifier for terrestrial antenna with 3 separate inputs for FM-radio, DAB+ digital radio and DVB-T2 digital television
- Amplification 33 dB, input attenuation is each separately adjustable, maximum output level 108 dBµV
- 4 x F socket, 3 signal inputs FM/FM, VHF/DAB+, UHF/DVB-T2 HD
- Integrated power supply, LED-function display
Technical specifications
- Frequency range
FM: 87 … 108 MHz
DAB/DAB+ 174 … 230 MHz
DVB-T/T2: 470 … 694 MHz
- Operating voltage
100-240 V/50 - 60 Hz
- Outputs
75 Ω
- Output level
108 dBµV
- Dim
(W x H x D) 128 x 84 x 36 mm
- Depth
36 mm
- Height
84 mm
- Width
128 mm
- Halogen-free
Yes
- Suitable for
DAB+
DVB-T
FM
- Amplification
33 dB
- UKCA
not relevant
- Product type
Multiband amplifier
Documents & Downloads
Datasheet
Datasheet 3639997 Axing TVS00503 Multiband amplifier DAB+, DVB-T, FM 33 dB
User & Safety Instructions
User & Safety Instructions 3639997 Axing TVS00503 Multiband amplifier DAB+, DVB-T, FM 33 dB
Description
This powerful multi-range amplifier is the ideal solution for use in terrestrial reception stations and impresses with its versatility and efficiency. An integrated, highly selective mobile telecommunications-blocking filter provides for a reliable suppression of disturbing signals, while the low noise factor guarantees a clear signal transmission. With its low power consumption, the amplifier is particularly energy efficient and is perfect for continuous operation. The multi-range amplifier has 3 inputs for connecting antennas. Each input is designed for a frequency range. The signals are amplified and then combined in the device. The signal strength can be adjusted via 3 level adjusters in order to reach as much as possible the same level. Not all inputs need to be assigned. The amplifier can, for example, only be used for radios with VHF and VHF (DAB+). Or only for TV via the UHF-input with DVB-T2. The amplifier has an integrated, energy-saving power supply for continuous operation. The power consumption is 2.5 W.
This text is machine translated.
This text is machine translated.
Features
- For use in terrestrial reception terminals
- Very selective mobile blocking filter
- Meets RED ETSI EN 303354 V1.1.1 for D1 category devices
- Low noise factor
- Low power consumption
